VTC 6201

Intel® Atom™ D510 Fanless In-vehicle Computer with three GigaLAN and two sim card slots support

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Build-in Intel® Atom™ D510 Dual Core 1.66GHz processor
  • Support three Ethernet LAN Ports
  • Dual Sim card slots available for vary carriers
  • Variety Wireless Communication (WLAN/BT/WWAN)
  • Dual VGA output (clone mode)
  • PCI-104 and mini card expansion interface
  • 8~60V wide range DC power input
  • Smarter ignition power on/ off, delay-time and low voltage protection
  • Rugged fanless design to meet MIL standard

Specifikace

Main Chipset ICH-8M
CPU Intel® Atom™ D510 Dual Core 1.66GHz
Memory DDR2 667/ 800 one 200-pin SO-DIMM up to 2GB
Expansion Mini-PCIe socket (PCIe + USB) x 1 (for WLAN module) Mini-PCIe socket (USB) x 1 (for 3.5G module) 1 x Bluetooth module (optional) 1 x GPS module PCI-104 x 1

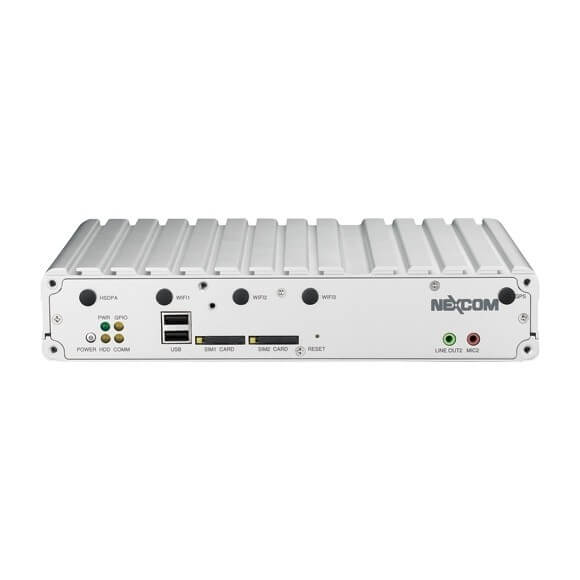

I/O Interface-Front 5 x LED's for power stand-by (on power button), Power Status, HDD, WLAN/ HSDPA and GPIO 1 x Power button 2 x USB port 2 x SIM card socket 1 x System reset button 1 x Mic-in, 1 x Line-out 4 x SMA Antenna holes for WLAN/ HSDPA/ BT

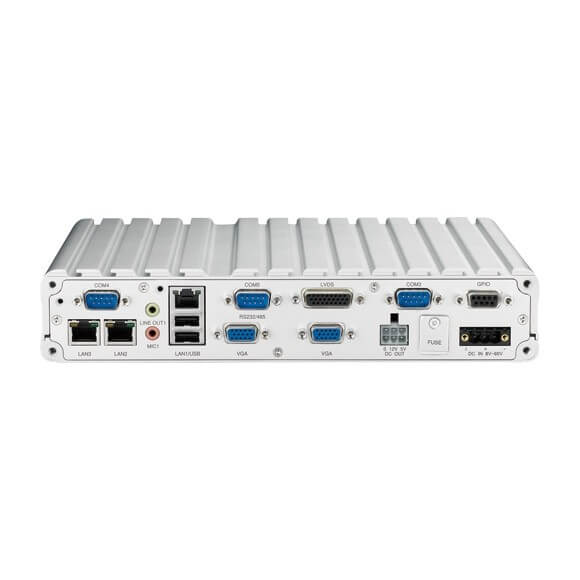

I/O Interface-Rear 2 x USB 2.0 Dual VGA Output (clone mode) 2 x RS232 (COM1/2) 1 x RS485 (COM3) 3 x GigaLAN RJ45 with LED connectors (optional M12 connectors x 2) 1 x LVDS (DB26 female connector with backlight power (+12V) and USB 2.0 x 1) 1 x Mic-in, 1 x Line-out 1 x SMA antenna hole for GPS 5V/ 1A, 12V/ 1A DC power output, can be controlled by S/W 8V~60V Wide Range DC power Input, power ignition signal control (ignition, power & ground) GPIO x 1 (4 input & 4 output) FUSE
Expandable Storage SATA 2.5" HDD Bay x 1 or SATA DOM x 1
Power Management Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level on/ off delay time by software Status of ignition and low voltage status can be detected by software Support S3/ S4 suspend mode
Dimensions 260mm (W) x 176mm (D) x 50mm (H) (10.24" x 6.93" x 1.97") 2.19 Kg (4.82 Lb)
Construction Aluminum enclosure with fanless design
Environment Operating temperatures:
Ambient with air: -30°C to 60°C
(SSD) -30°C to 50°C (HDD)
Storage temperatures: -40°C to 80°C Relative humidity: 10% to 90% (Non-condensing) Vibration (random): 2g@5~500 Hz with SSD; 1g@5~500 Hz with HDD (in operation) Vibration (with SSD): Operating: MIL-STD-810F, ethod 514.5,Category 20, Ground Vehicle – Highway Truck
Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test
Shock (with SSD): Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g
Crash Hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g
Protection Grade Compliance with EN50155 Optional protection kit for IP65 rating
Certifications CE approval FCC Class B e13 Mark
