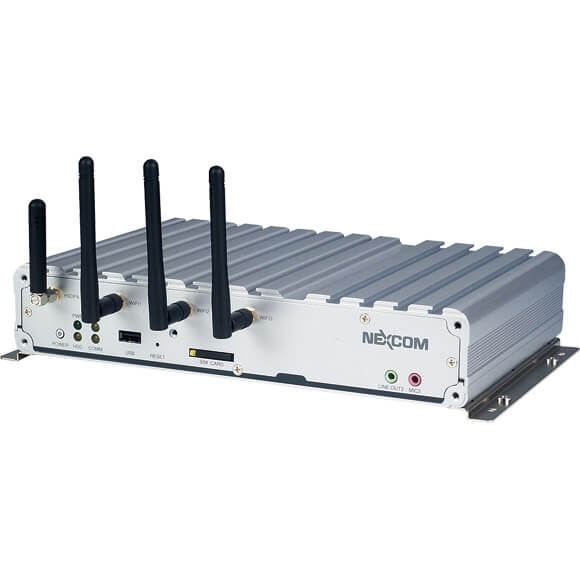

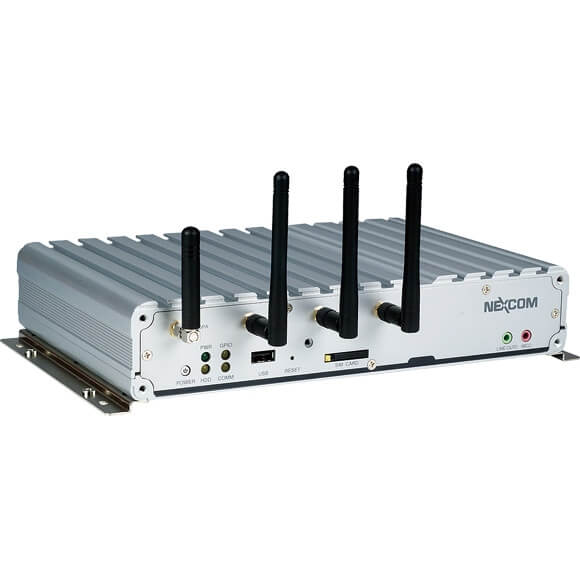

VTC 6120

Intel® Core™ 2 Duo SL9400 Fanless In-vehicle Computer

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Support Intel® Core™ 2 Duo SL9400 processors
  • Availability of GSM/ GPRS/ WCDMA/ HSDPA/ GPS
  • External smart battery back up support
  • Power ignition on/ off delay control
  • Circuitry design for low power protection
  • 6~36V DC power input
  • 1 PCI-104 expansion slot
  • Multiple display interface connections (VGA, DVI-D and LVDS)
  • Optional IP65 enclosure


Main Chipset Intel® GS45 and ICH9M chipset
CPU Support Intel® Core™ 2 Duo SL9400 processors
Memory DDR3 1066/ 1333 MHz SO-DIMM up to 2GB
Expansion 1 x PCI-104 1 x Bluetooth module (optional) 2 x Mini-PCI express Socket

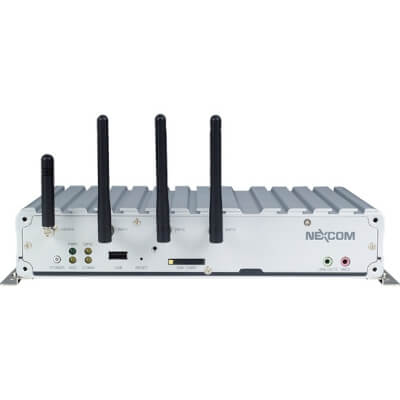

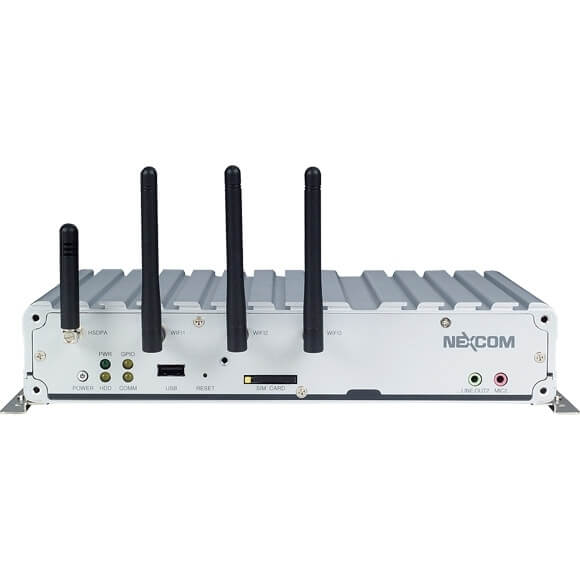

I/O Interface-Front 4 x SMA Antenna holes for WLAN, HSDPA, Bluetooth 1 x Power button 1 x Reset switch 1 x SIM socket 1 x USB 4 x LED's for Stand-by, HDD, WLAN/HSDPA and GPIO 1 x Mic-in & 1 x Line-out

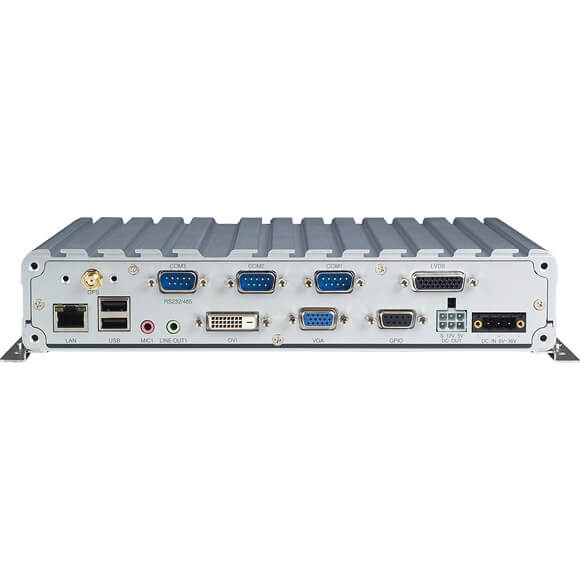

I/O Interface-Rear 2 x RS232 1 x RS232/485 w/ auto flow control 1 x DB26 LVDS (w/ +12V for backlight power & USB2.0) 1 x DB15 VGA 1 x DVI-D 2 x USB2.0 1 x 10/ 100/ 1000 Ethernet 1 x Mic-in & 1 x Line-out 1 x SMA antenna hole for GPS 1 x GPIO (4 input & 4 output) 6V ~ 36V DC thru 3-pin connector (ignition, power & ground) +5V/+12V DC output, SMBus 5V DC (1A), 12V DC (1A), without VTK 33M-01; 5V DC (0.5A), 12V DC (0.5A), with VTK 33M-01
Expandable Storage 1 x 2.5" SATA II HDD + 1 x CF
Power Management Boot-up & shut-down voltage setting selectable for low power protection by software Setting 8-level on/ off delay time by software Status of ignition and low voltage status can be detected by software
IP Rating IP65 compliant (w/ VTK 61P)
Dimensions 260mm(W) x 176mm(D) x 50mm(H) (10.24" x 6.93" x 1.97") 2.42 Kg (5.34 Lb)
Construction Aluminum enclosure with fanless design
Environment Operating temperatures: -30°C to 50°C (SSD); -30°C to 45°C (Commercial HDD) Storage temperatures: -40°C to 80°C Relative humidity: 10% to 90% (Non-condensing) Vibration (random) : 2g @ 5~500 Hz with SSD; 1g @ 5~500 Hz with HDD (in operation) (sine): 2g @ 5~500 Hz with SSD; 2g @ 5~500 Hz with HDD (non operation) Vibration (with SSD) Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle - Highway Truck; Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock (with SSD): Operating: MIL-STD-810F Method 516.5, Proceure I, Trucks and semi-trailers=20g; Non-Operating: MIL-STD-810F, Method 516.5, Procedure V, Gound equipment=75g
Certifications CE approval FCC Class B
