VTC 6110
Intel® Core™ Duo L2400 Fanless In-vehicle Computer
Základní informace
- Build-in Intel® Core™ Duo L2400 processor
- Availability of GSM/ GPRS/ WCDMA/ HSDPA/ GPS
- External smart battery back up support
- Power ignition on/ off delay control
- Circuitry design for low power protection
- 6~36V DC power input
- 1 PCI-104 expansion slot
- Multiple display interface connections (VGA, DVI-D and LVDS)
- Optional IP65 enclosure
Specifikace
| Main Chipset | Intel® 945GME |
| CPU | Intel® Embedded LV/ULV Processor Core™ Duo L2400 |
| Memory | DDR2 667 SO-DIMM up to 2GB |
| Expansion | 1 x PCI-104 1 x Bluetooth module (optional) 2 x Mini-PCI express Socket |

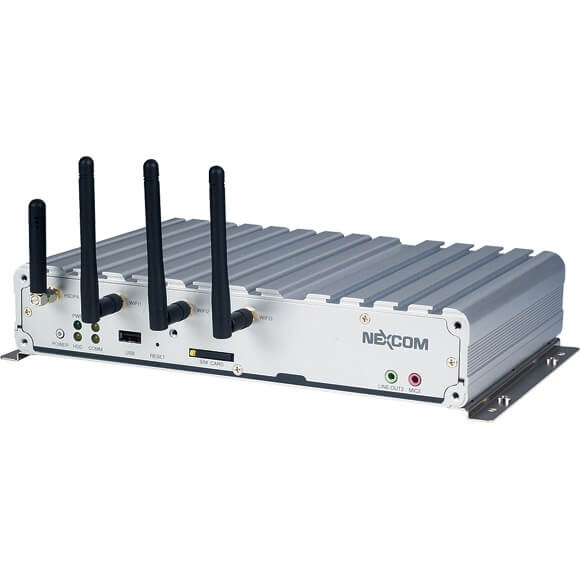

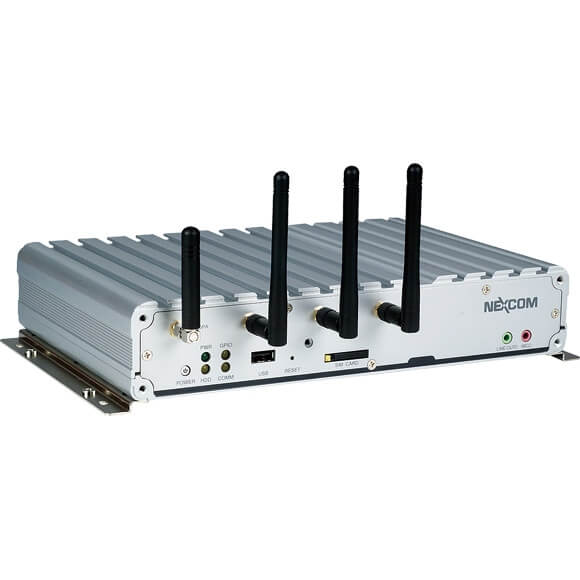

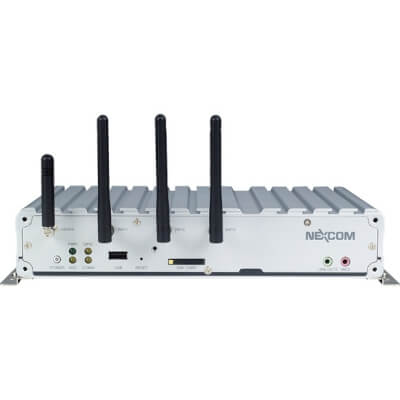

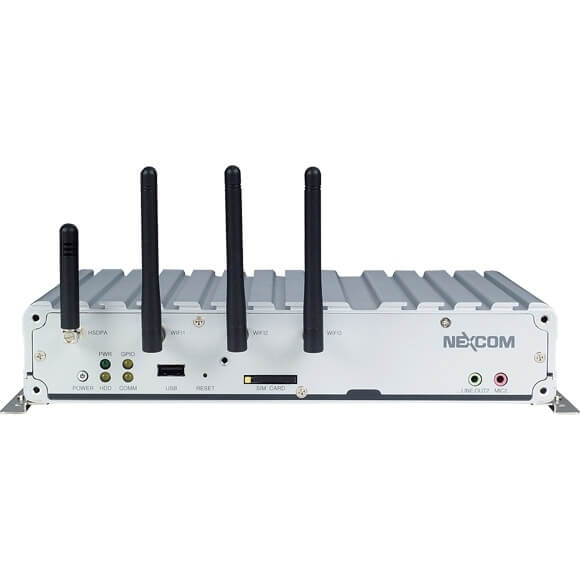

| I/O Interface-Front | 4 x SMA Antenna holes for WLAN, HSDPA, Bluetooth 1 x Power button 1 x Reset switch 1 x SIM socket 1 x USB 4 x LED's for Stand-by, HDD, WLAN/ HSDPA and GPIO 1 x Mic-in & 1 x Line-out |

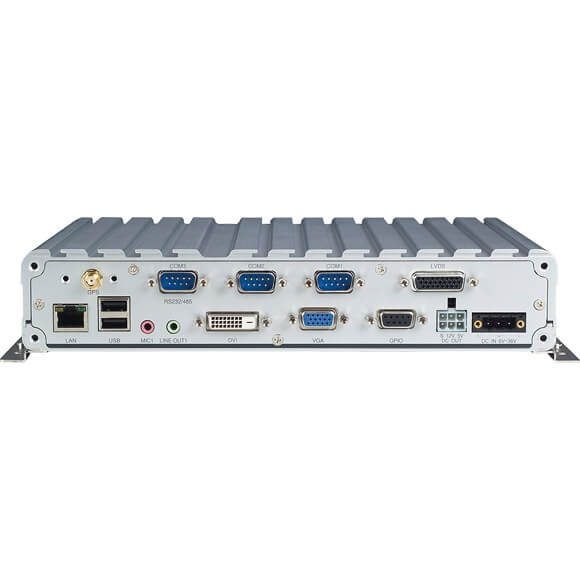

| I/O Interface-Rear | 2 x RS232 1 x RS232/ 485 w/ auto flow control 1 x DB26 LVDS (w/ +12V for backlight power & USB2.0) 1 x DB15 VGA 1 x DVI-D 2 x USB2.0 1 x 10/ 100/ 1000 Ethernet 1 x Mic-in & 1 Line-out 1 x SMA antenna hole for GPS 1 x GPIO (4 input & 4 output) 6V ~ 36V DC thru 3-pin connector (ignition, power & ground) +5V/ +12V DC output, SMBus 5V DC (1A), 12V DC (1A), without VTK 33M-01; 5V DC (0.5A), 12V DC (0.5A), with VTK 33M-01 |
| Expandable Storage | 1 x 2.5" SATA II HDD + 1 x CF |
| Power Management | Boot-up & shut-down voltage setting selectable for low power protection by software Setting 8-level on/ off delay time by software Status of ignition and low voltage status can be detected by software |
| IP Rating | IP65 compliant (w/ VTK 61P) |
| Dimensions | 260mm(W) x 176mm(D) x 50mm(H) (10.24" x 6.93" x 1.97") 2.42 Kg (5.34 Lb) |
| Construction | Aluminum enclosure with fanless design |
| Environment | Operating temperature: -30°C to 50°C with CF or Automotive HDD Storage temperature: -40°C to 80°C@relative humidity 10% to 90% non-condensing Vibration (w/o vibration kit): 2G@5-500Hz random with CF; 1G@5-500Hz random with Automotive HDD; MIL-STD-810F Method 514.5 Category 20 Ground Vehicle-Highway Truck (in operation) Shock: Operating: MIL-STD-810F Method 516.5, Procedure I, Trucks and semi-trailers=20g; Non-Operating: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g |
| Certifications | CE approval FCC Class B e13 mark |
