nROK 500

Intel® Atom™ D525 1.8GHz Fanless Railway System

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073
PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

  • On-board Intel® Atom™ Dual Core D525 processor
  • One DDR2 SO-DIMM socket, DDR2 800 2G memory module support max.
  • 1x M12 LAN port
  • 2 x USB2.0 / 1x VGA / 2x RS232
  • 1 x external CF Socket and one external SIM card holder
  • 24V DC Input with 500V Isolated protection
  • Support Ignition Signal for delay- time control
  • Support WOL & PXE function

Specifikace

Main Board Onboard Intel® Atom™ Dual Core D525 1.8GHz processor, 1M Cache Chipset: Intel® ICH8M chipsets
Main Memory 1x DDR2 SO-DIMM socket, support 2G DDR2 667 and 800 MHz memory max., unbuffered and non-ECC
Storage CF Card socket: External accessible type, screwed with CF card cover 1x 2.5" SATA HDD drive bay for optional SSD
Expansion 1 x Mini-PCIe socket (for optional 3G/3.5G Mobile wireless module)

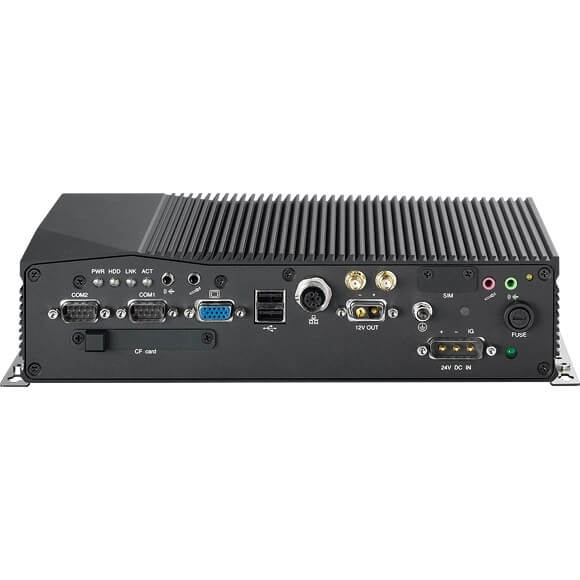

I/O Interface-Front 1x VGA Output
DB15x1, support analog monitor with pixel resolution up to 2048 x 1536@75 Hz
2x RS232 COM Port
DB9 x 2, support 115.2 Kbps baud rate
2x USB Port
2x USB 2.0 ports, 500mA per port, covered with plastic cover to against the dust
1x Mic-in & 1x Speaker-out
· Audio controller: High Definition Audio Controller, Realtek: ALC888-GR
· 1x Speaker-out, Dia. 3.5mm phone jack, covered with plastic cover to against the dust
· 1x Mic-in, Dia. 3.5mm phone jack, covered with plastic cover to against the dust
1x 10/100 M12 LAN Port
· LAN Controller: Intel® WG82574L LAN controller x 1
· Support Wake on LAN and boot from LAN function
Wireless Communication
· 1x External accessible SIM card socket
· 1x Mic-in for wireless communication use
· 1x Speaker-out for wireless communication use
· 2x Antenna holes (for 3G/3.5G mobile wireless module)
LEDs
· 1x LED for power status
· 1x LED for HDD status
· 1x LED for 10/100 LAN Link
· 1x LED for 10/100 LAN Active
DC Input
· 24V as the nominal (Range: 16.8V ~ 30V)
· Ignition signal input (24V, nominal; 0~10.5V = off, rest = on)
· 500V Isolated design on DC Input
· 1x External fuse
Validated Embedded OS Windows Embedded Standard 2009 Windows Embedded Standard 7
System Dimension 264mm (W) x 142mm (D) x 65.5mm (H)
Environment Operating Temperature: -5°C ~ 55°C
Certifications CE EN50155

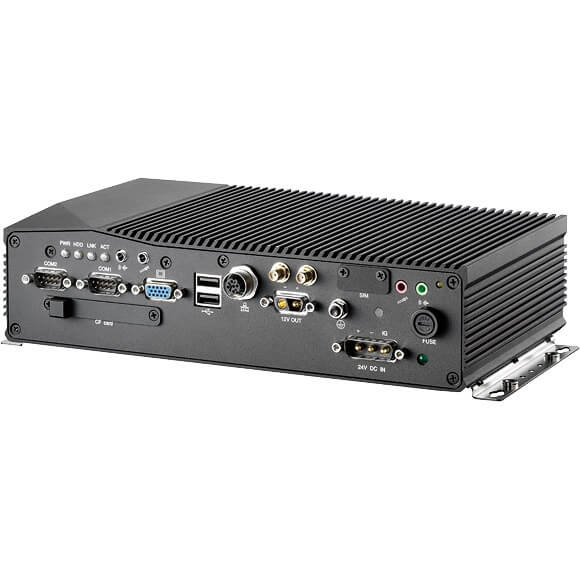

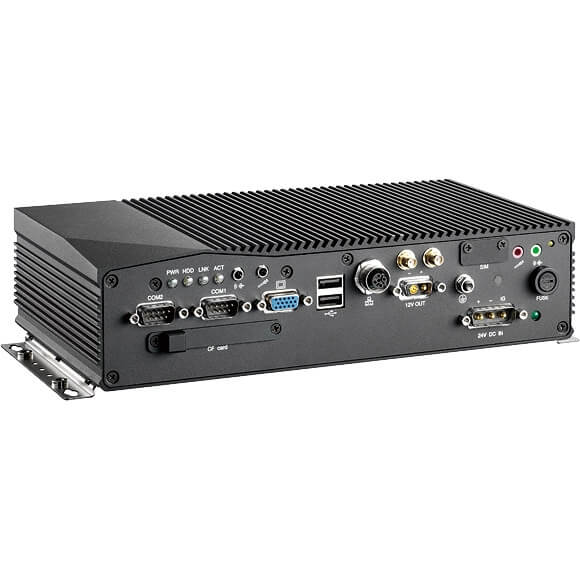

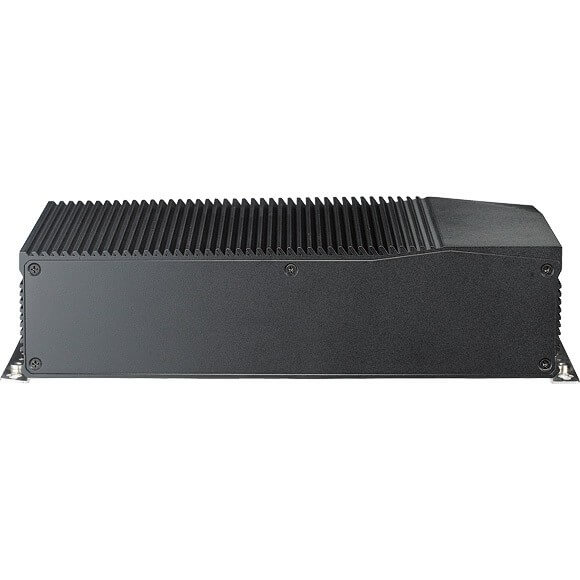

Fotogalerie
