nROK 3000

Intel® Atom™ D525 Fanless Railway Computer

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace




  • Built-in Intel® Atom™ D525 Dual Core 1.8GHz processor
  • Fanless and rugged design
  • Easy maintenance
  • Rich I/O interface with secure lock
  • Removable 2.5" SSD tray
  • Isolation RS-232/ 422/ 485 and GPIO
  • Optional 24V/ 110V DC input with isolated protection
  • Compliant with IP65 design
  • Certified by EN50155

Specifikace

Main Chipset ICH-8M
CPU Intel® Atom™ D525 Dual Core 1.8GHz
Memory 1GB DDR3 1333MHz SODIMM (up to 4GB)
Expansion 1 x Mini-PCIe socket (PCIe + USB) for WLAN option 1 x Mini-PCIe socket (USB) for 3.5G module option 1 x GPS module

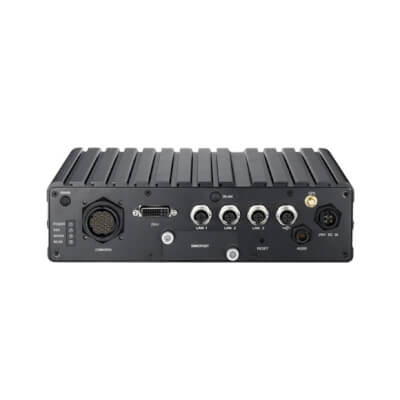

I/O Interface-Front 1 x DVI-I connector with DVI-D and VGA output 1 x 26-pin circular connector in support of RS232/ 422/ 485 with isolation, 4-channel digital input and 4-channel digital output 1 x USB 2.0 with M12 connector 1 x Mic-in & 1 x Line-out 3 x 10/ 100 Ethernet with M12 connector Wireless communication
1 x External accessible SIM card socket
3 x Antenna holes for WWAN/ WLAN/ GPS
4 x LED for power, SSD, WWAN and WLAN DC Input
24V with 500V isolated (range: 16.8V ~ 30V)
Optional: 110V with 1.5KV isolation (range: 66V ~ 154V)

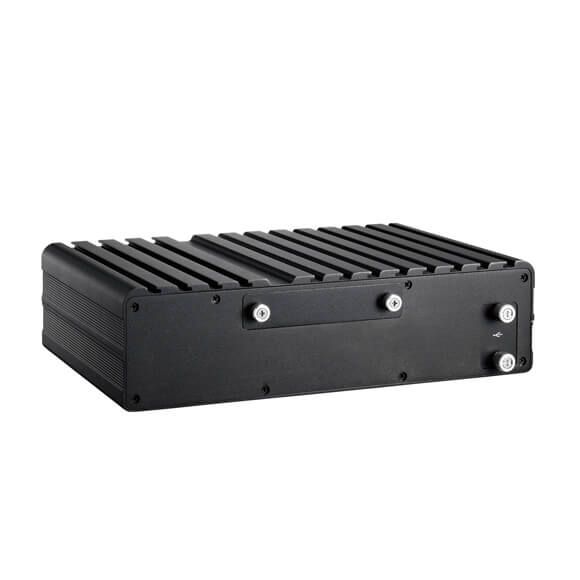

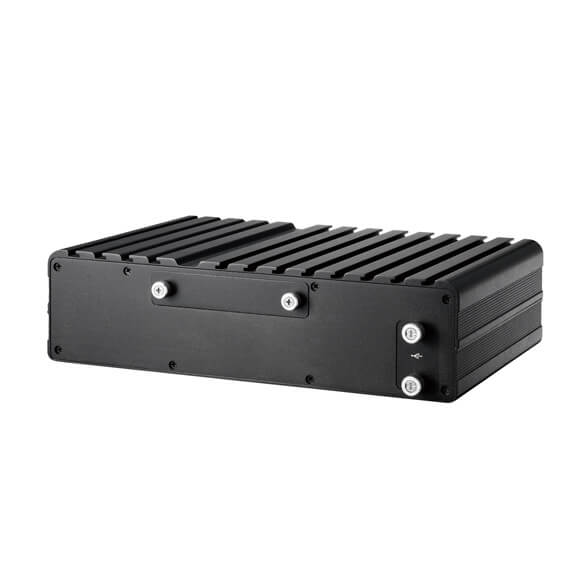

I/O Interface-Rear SSD accessible 2 x USB 2.0
Expandable Storage 1 x 2.5" SATA SSD tray 1 x CFast slot with protection cover
Power Management Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level on/off delay time by software Status of ignition and low voltage status can be detected by software
Validated Embedded OS Windows Embedded Standard 2009 Windows Embedded Standard 7 Linux (kernel 2.6.X)
System Dimension 260mm (W) x 178mm (D) x 70mm (H) (10.24"x 7"x 2.76")
Construction Aluminum enclosure with fanless design
Environment Operating temperatures
Ambient with air: -40°C to 55°C (EN50155 Class T2)
Storage temperatures: -40°C to 80°C Damp heat test: 55°C, 95% RH (non-operating, EN 50155) Relative humidity: 0% to 90% (non-condensing) Vibration (random):
Compliance with EN61373 Category 1 Class B
Shock:
Compliance with EN61373 Category 1 Class B
Protection Grade IP65 rating
Standards/
Certifications
CE FCC Class A Compliance with EN50155
