NISE 3500M2E

Intel® Core™ i7/i5 Fanless System with IEEE 1394b, eSATA, HDMI and one Expansion Slot

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

  • Support Intel® Core™ i7/i5 socket processor
  • Mobile Intel® QM57 PCH
  • Dual Intel® Gigabit Ethernet ports
  • Dual VGA or VGA/DVI or DVI/HDMI Independent Display
  • 3 x RS232 and 1 x RS232/422/485 with Auto Flow Control
  • 3 x IEEE1394b ports, 2x eSATA
  • On-board DC to DC power design to support 9V to 30V DC power input
  • Support ATX power mode and PXE / WOL
  • 1 x PCI expansion slots and 1 x PCIe expansion slots

Specifikace

Main Board NISB3500 On board Mobile Intel® QM57 Platform Controller Hub Support Intel® Core™ i7-620M PGA Processor (2.66GHz, 4M Cache) Support Intel® Core™ i5-520M PGA Processor (2.4GHz, 3M Cache) Support Intel® P4500 PGA Processor (1.86GHz, 2M Cache)
Main Memory 2x 240-pin memory DIMM, up to 4GB DDR3 800/1066MHz SDRAM, unbuffered and non-ECC * Note: Actual memory size is dynamic based on the OS I/O resource allocation

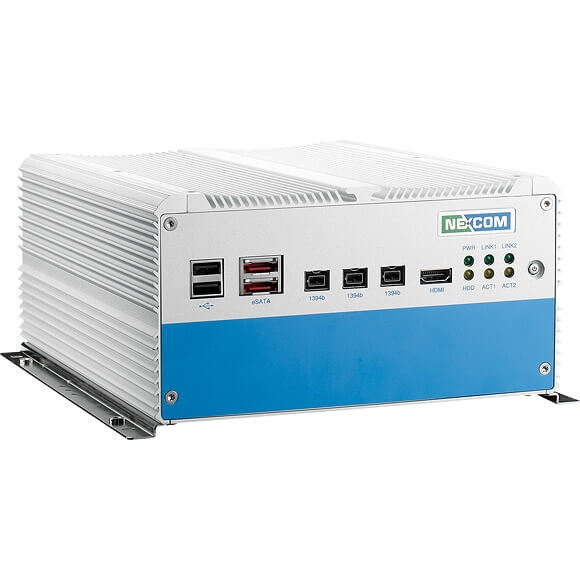

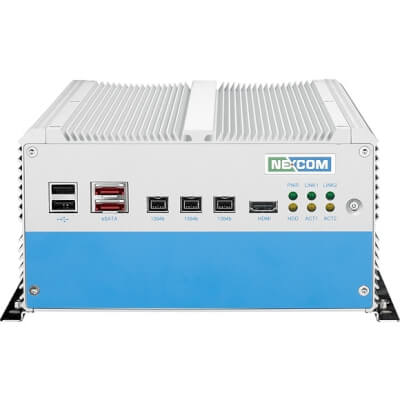

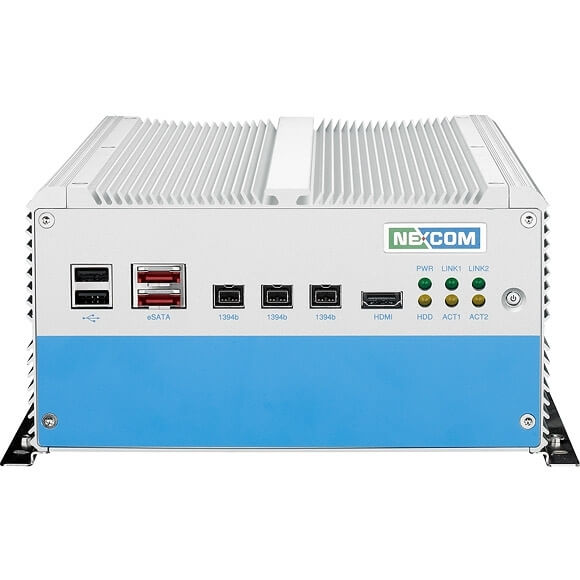

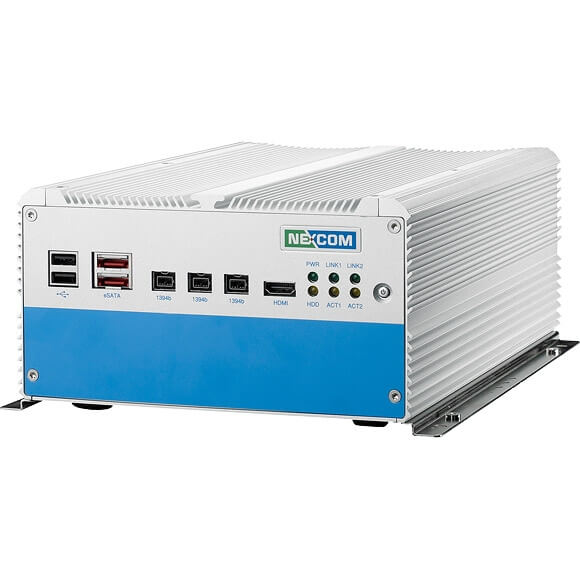

I/O Interface-Front ATX power on/off switch HDD Access/Power status LEDs 2 x USB2.0 ports 2 x eSATA ports 3 x IEEE1394b ports 1 x HDMI

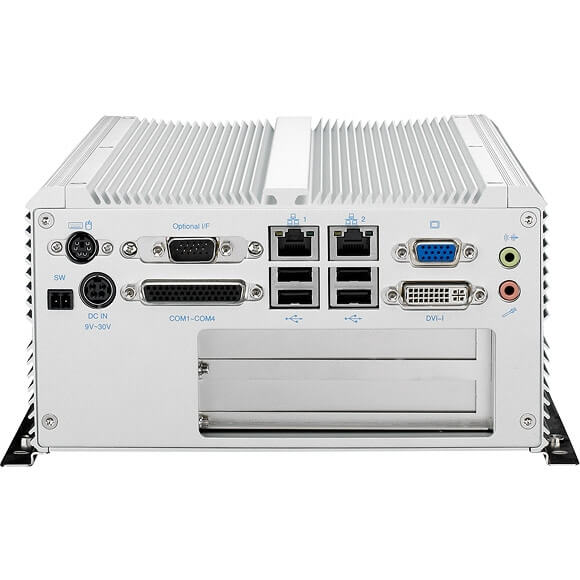

I/O Interface-Rear 2-pin Remote Power on/ff switch 9~30V DC input 1 x PS/2 for Keyboard / Mouse 1 x DB15 male connector for GPIO (4x digital-input and 4x digital-output) 1 x DB44 Serial Port for 4x RS232 (COM2: RS232/422/485 with auto fl ow control) 2x GbE LAN ports 4 x USB2.0 ports 1 x DB15 VGA port 1 x DVI-I port 1 x Speaker-out and 1x Mic-in
Device 2 x 2.5" HDD driver bay
Expansion 1 x PCI expansion (Max. power consumption= 10w/ slot) 1 x PCIe expansion (Max. power consumption= 10w/ slot) Add-on card length: 169mm max.
Power Requirements ATX power mode On-board DC to DC power support from 9V to 30V DC Optional power adapter
Dimensions 195mm (W) x 268 mm (D) x 101mm (H) (7.7" x 10.5" x 3.98")
Construction Aluminum Chassis with fanless design
Environment Operating temperature: Ambient with air flow: -5°C ~ 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C ~ 80°C Relative humidity: 10% to 93% (Non-Condensing)
Certifications EN60601 Compliant CE approval FCC Class B
