NISE 3142

Intel® Core™ 2 Duo Fanless System with 1 x Expansion Slot


Základní informace

  • Support Intel® Core™ 2 Duo / Celeron® processor
  • Intel® GM45 chipsets
  • Dual Intel® 82574L Gigabit Ethernet ports
  • Dual DVI-D independent display
  • 5 x RS232 and 1 x RS232/422/485 with Auto Direction Control
  • On external locked CFast socket (SATA Interface)
  • On-board DC to DC power design to support 16V to 30V DC power input
  • Support ATX power mode and PXE / WoL / LAN Teaming


Main Board NISB3142 Support Intel® Core™ 2 Duo Processor P8400(3M Cache, 2.26 GHz, 1066MHz FSB) Support Intel® Celeron® Processor 575(1M Cache, 2.0GHz, 667MHz FSB)
Main Memory 2x 240-pin DIMM, up to 4GB DDR3 800/1066 MHz SDRAM, unbuffered and non-ECC
Chipset Intel® GM45 Graphics and Memory Controller Hub Featuring the Mobile Intel® Graphics Media Accelerator 4500MHD Intel® 82801IBM I/O Controller Hub

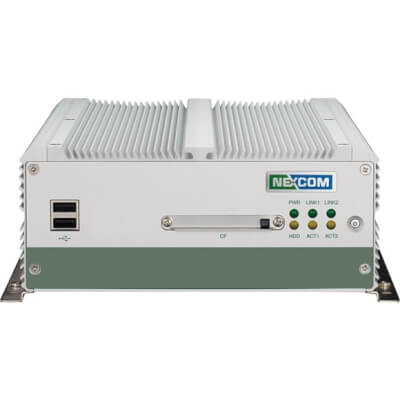

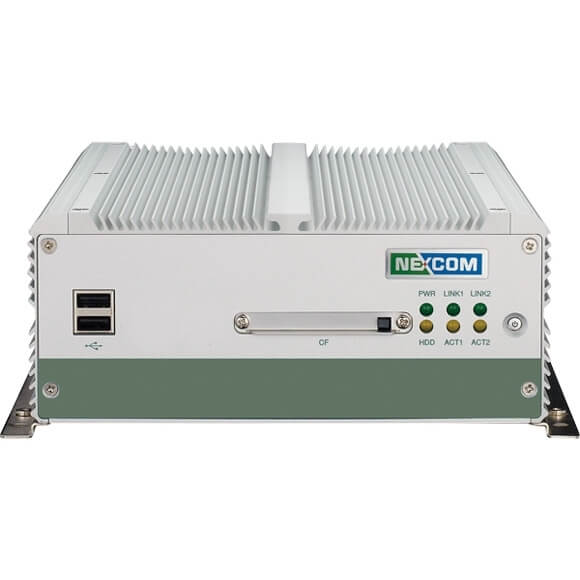

I/O Interface-Front ATX power on/off switch HDD Access/Power status LEDs 1 x Front Access CFast Card Socket (SATA interface) 2 x USB2.0 ports/1.

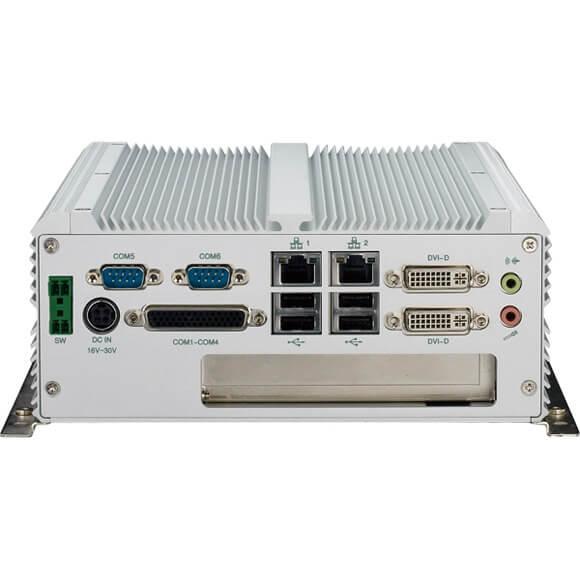

I/O Interface-Rear 2-pin Remote Power on/off switch 2-pin System signal 16 ~ 30V DC input 1 x PS/2 for Keyboard/Mouse 2 x DB9 Serial Port, RS232 1 x DB44 Serial Port for 4x RS232(COM2: RS232/422/485 with Auto Flow Control) 2 x GbE LAN ports 4 x USB2.0 ports 2 x DVI-D Port 1 x Speaker-out and Line-in
Storage 1 x 2.5” SATA HDD drive bay One external locked CFast card socket (SATA Interface)
Expansion Slot One PCI expansion (NISE3140 only) One PCIe x1 expansion (NISE3140E only) Max. Support Add-on Card Length: 169mm
Power Inputlot ATX power mode On-board DC to DC power support from 16V to 30VDC Optional Power Adapteru
Dimensionstlot 195mm (W) x 268 mm (D) x 80mm (H) (7.7” x 10.5” x 3.1”)
Constructionot Aluminum Chassis with fan-less design
Environmentnot Operating temperature:
Ambient with air flow: -5°C ~ 55°C
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature: -20°C ~ 80°C Relative humidity: 10% to 93% (Non-Condensing)
Certifications CE approval FCC Class A
