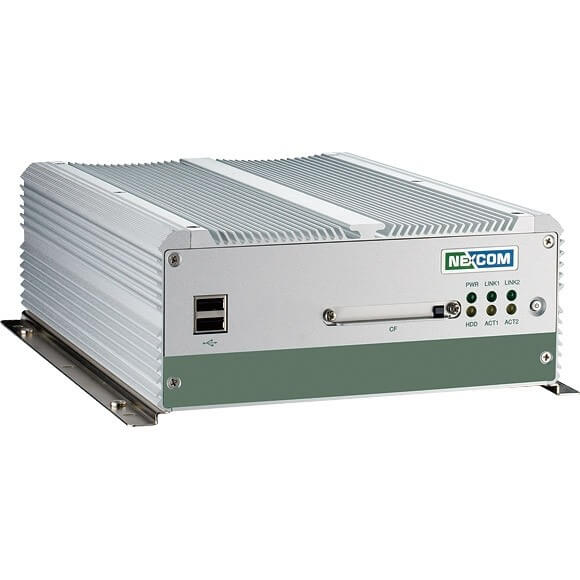

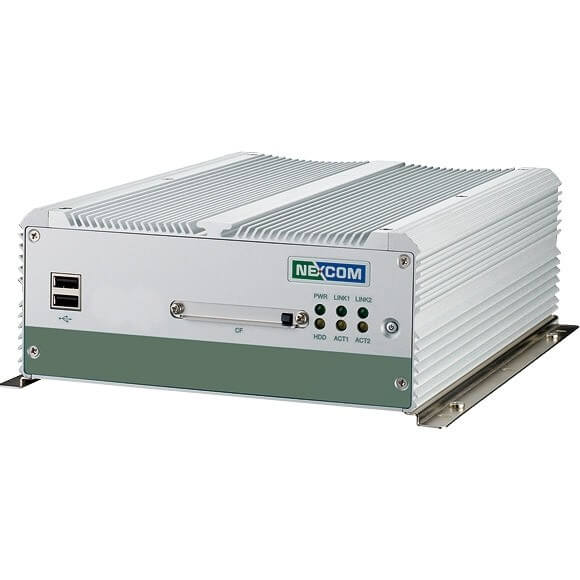

NISE 3140/3140E
Intel® Core™ 2 Duo Fanless System with 1 x Expansion Slots
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Support Intel® Core™ 2 Duo / Celeron® processor
- Intel® GM45 chipsets
- Dual Intel® 82574L Gigabit Ethernet ports
- Dual VGA or VGA/DVI Independent Display
- 3 x RS232 and 1 x RS232/422/485 with Auto Direction Control
- One external locked CF socket
- On-board DC to DC power design to support 16V to 30V DC power input
- Support ATX power mode and PXE / WOL / LAN Teaming
Specifikace
| Main Board | NISB 3140 Support Intel® Core™ 2 Duo Processor P8400 (3M Cache, 2.26 GHz, 1066 MHz FSB) Support Intel® Celeron® Processor 575 (1M Cache, 2.00 GHz, 667 MHz FSB) |
| Main Memory | 2x 240-pin DIMM, up to 4GB DDR3 800/1066 MHz SDRAM, unbuffered and non-ECC |
| Chipset | Intel® GM45 Graphics and Memory Controller Hub Featuring the Mobile Intel® Graphics Media Accelerator 4500MHD Intel® 82801IBM I/O Controller Hub |

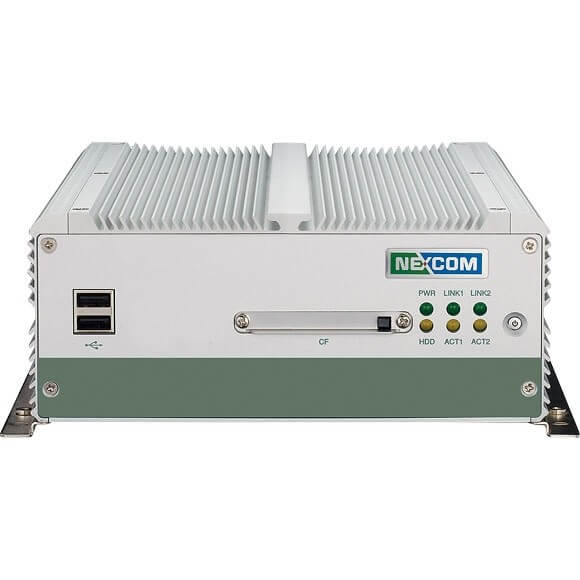

| I/O Interface-Front | ATX power on/off switch HDD Access/Power status LEDs 1 x Front Access CF Card Socket 2 x USB2.0 ports |

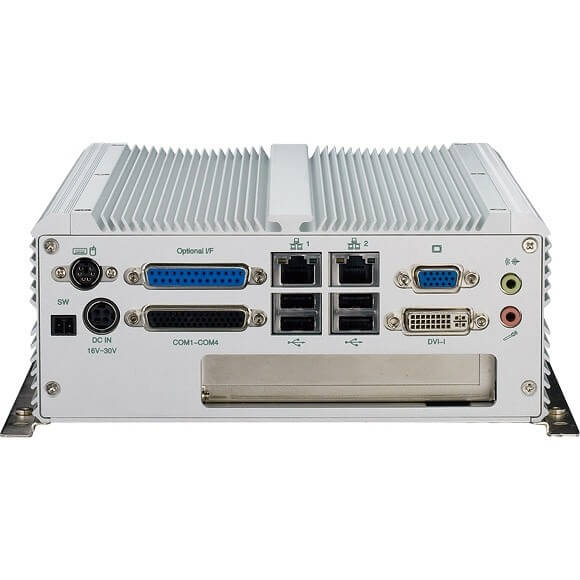

| I/O Interface-Rear | 2-pin Remote Power on/off switch 16 ~ 30V DC input 1 x PS/2 for Keyboard/Mouse 1 x DB25 Parallel Port (Optional GPIO or LVDS interface) 1 x DB44 Serial Port for 4x RS232 (COM2: RS232/422/485 with Auto Flow Control) 2 x GbE LAN ports 4 x USB2.0 ports 1 x DB15 VGA port 1 x DVI-I Port (DVI-D + VGA) 1 x Speaker-out and Mic-in |
| Device | 1 x 2.5" SATA HDD drive bay One external locked CF card socket |
| Expansion | One PCI expansion (NISE 3140 only) One PCIe x1 expansion (NISE 3140E only) Max. Support Add-on Card Length: 169mm |
| Power Requirements | ATX power mode On-board DC to DC power support from 16V to 30V DC Optional power adapter |
| Dimensions | 195mm (W) x 268 mm (D) x 80mm (H) (7.7" x 10.5" x 3.1") |
| Construction | Aluminum Chassis with fanless design |
| Environment | Operating temperature: Ambient with air flow: -5°C ~ 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C ~ 80°C Relative humidity: 10% to 93% (Non-Condensing) |
| Certifications | CE approval FCC Class B |
