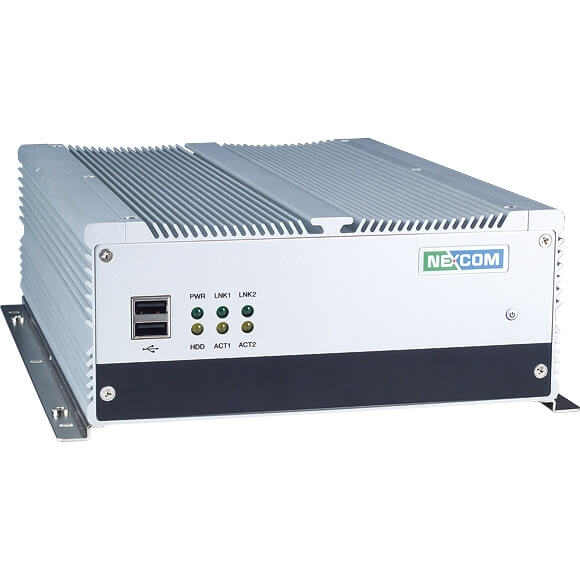

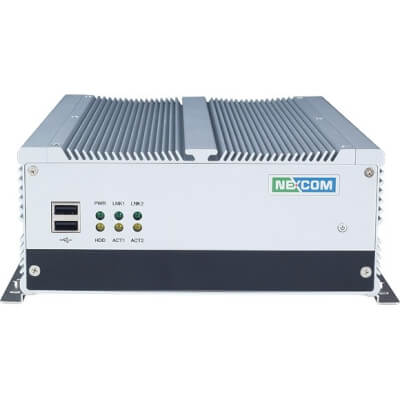

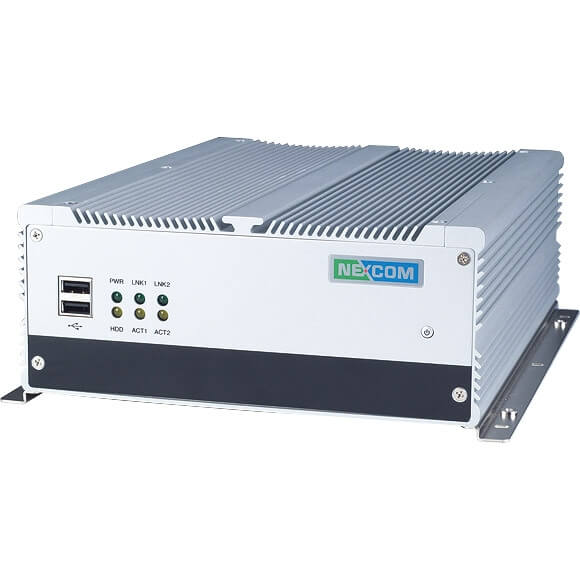

NISE 3110
Intel® Core™ 2 Duo, Core™ Duo, Celeron® M Fanless System with 1 x PCI Expansion Slot
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Support Intel® Core™ 2 Duo /Core™ Duo/ Celeron® M processors
- Intel® 945GME Chipsets
- Dual 1000/100/10Mbps LAN ports
- 6 x USB2.0/ VGA / DVI
- 3 x RS232 and 1 x RS232/422/485 via DB44 Connector
- On-board DC to DC power design to support +12V to 30V DC power input
- Support ATX power mode and PXE / WOL
- One PCI Expansion Slot
Specifikace
| Main Board | EBC 576FL Support Intel® Core™ 2 Duo, Core™ Duo, Celeron® M family processors Support 533/667 MHz FSB CPU Intel® Embedded Processor Reference List (Intel® Longevity CPU): Core™ Duo Processor (T2500) 2.0G; Celeron® M 440 1.86G |
| Chipset | Intel® 945GME Graphics Memory Controller Hub (GMCH) Intel® 82801 ICH7-M |
| Main Memory | 2 x 240-pin DDR2 533/667 DIMM sockets, up to 4 GB, dual channel unbuffered non-ECC Note: Maximum 4GB. Actual memory size is dynamic based on the OS I/O resource allocation |
| Expansion | Supports one 32-bit/ 33MHz PCI card PCI Length support: Max. 160mm with 2.5" HDD installed; Max. 240mm without 2.5" HDD installed |

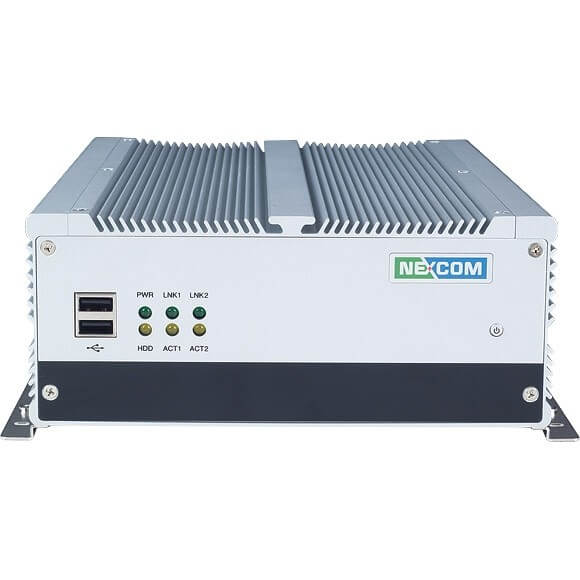

| I/O Interface-Front | Customized logo (Optional) HDD Access/Power/LAN status LEDs 2 x USB 2.0 ports ATX power on/off switch |

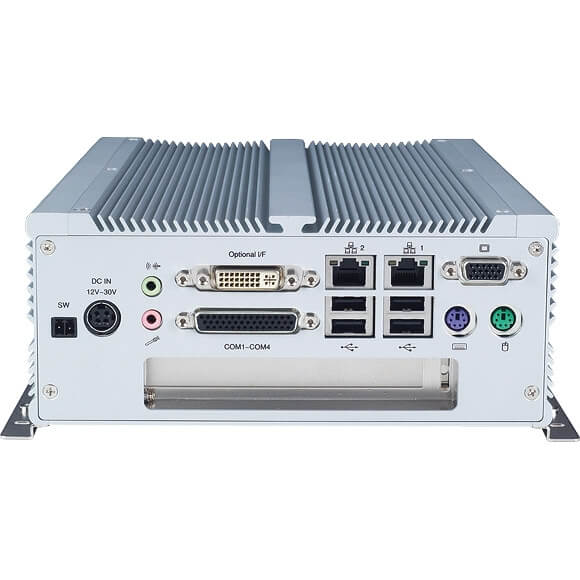

| I/O Interface-Rear | 2 x PS/2 Keyboard/Mouse 1 x DB15 VGA connector 4 x USB 2.0 ports 2 x GbE LAN Ports 1 x DVI-D interface 4 x Serial Ports, with 1x DB44 connector (Three ports support RS232; One port supports RS232/422/485) 1 x Mic-in and 1 x Speaker-out 1 x 2-pin connector output for remote power on/off switch DC-in power connector for +12V ~+30V DC power input |
| Device | 1 x On-board CompactFlash socket 1 x Internal 2.5" HDD drive bay |
| Power Requirements | DC to DC power designed on board, support from 12V to 30V DC input (Max: 120 Watts) 1 x External 120 W AC adapter (lockable); Power input: 100 to 240V AC 2 A 50/60 Hz; Power output: 19V DC |
| Dimensions | 195 mm (W) x 268 mm (D) x 80 mm (H) (7.7" x 10.5" x 3.1") |
| Construction | Aluminum chassis with fanless design |
| Environment | Operating temperature: Ambient with air flow: -5°C ~ 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C ~ 80°C Relative humidity: 10% to 93% (Non-Condensing) |
| Certifications | CE approval FCC Class A |
