NISE 2110A

Intel® Atom™ D525 1.8GHz Fanless System with DDR3 SO-DIMM socket and one PCI expansion

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

  • On-board Intel® Atom™ Dual Core D525 (1.8GHz, 1M Cache) processor
  • One DDR3 SO-DIMM socket, DDR3 800 2G memory module support max.
  • Dual Intel® 1000/ 100/ 10 Mbps LAN ports
  • 4 x USB2.0/ 1x VGA
  • 4 x RS232 and 2 x RS232/ 422/ 485 with auto flow control
  • 1 x DB15 GPIO connector
  • 1 x external CF Socket and one external SIM card holder
  • 9 ~ 36V DC input
  • ATX power mode
  • 1 x PCI Expansion Slot

Specifikace

Main Board NISB 2100A On-board Intel® Atom™ D525 Dual Core processor, 1.8GHz, 1M Cache Intel® ICH8M PCH
Main Memory 1 x DDR3 SO-DIMM socket, support up to 2 GB DDR3 800 SDRAM memory module, unbuffered and non-ECC
Expansion 1 x PCI expansion 1 x Mini-PCIe socket onboard (Either optional Wi-Fi or Mobile wireless module)

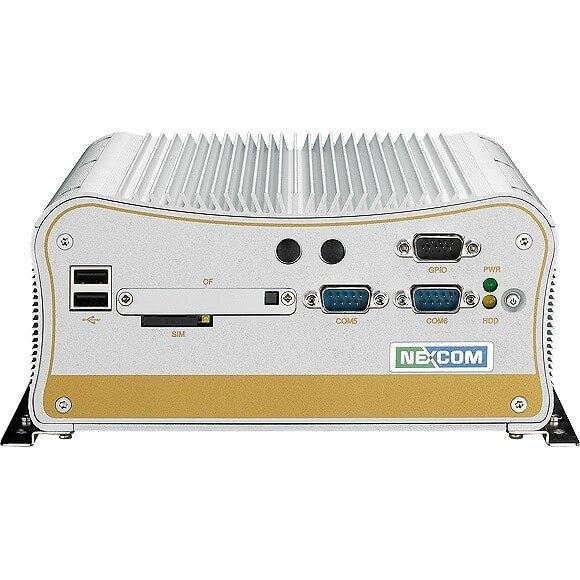

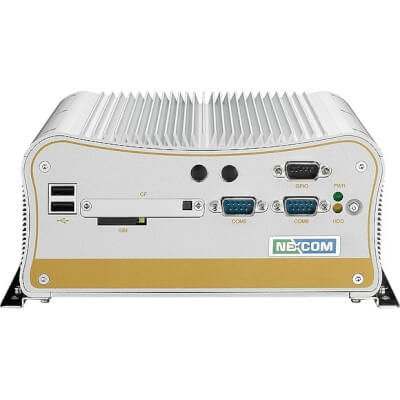

I/O Interface-Front ATX Power on/ off switch HDD Access/ Power status LEDs 2 x USB2.0 ports 2 x Serial port (RS232) 1 x external SIM card holder 1 x DB15 GPIO connector 2 x Antenna holes (Either optional Wi-Fi or Mobile wireless module)

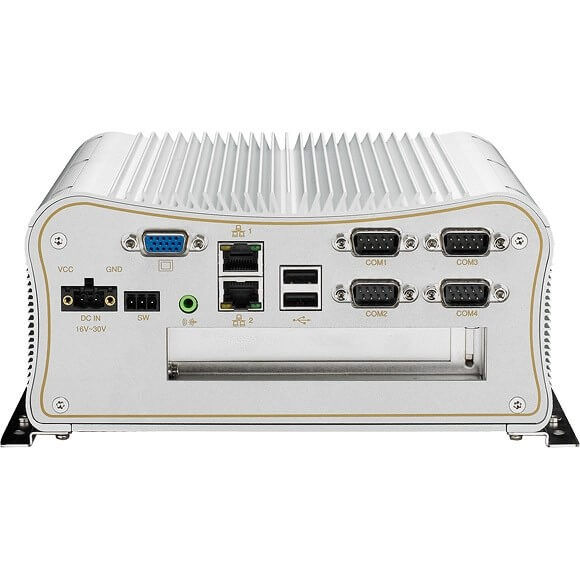

I/O Interface-Rear 9 ~ 36V DC input 1 x 3-pin for remote power on/off switch 1 x DB15 VGA port 2 x Intel® GbE LAN ports 1 x Speaker out 2 x USB2.0 ports 4 x Serial port (2x RS232 and 2x RS232/422/485 with auto-flow control, isolation protection on COM1 & COM2)
Storage 1 x 2.5" SATA HDD drive bay or optional SATA DOM module (Horizontal type) One external CF socket
Power Requirements ATX Power mode DC to DC power design on-board, support from 9V ~ 36V DC Optional 19V, 65W power adapter
Dimensions 195 mm (W) x 200 mm (D) x 90 mm (H) (7.7" x 7.9" x 3.5")
Construction Aluminum Chassis with fanless design
Environment Operating temperature: Ambient with air flow: -20°C to 70°C (with industrial grade devices)(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C ~ 80°C Relative humidity: 10% to 93% (Non-condensing)
Certifications CE approval FCC Class A

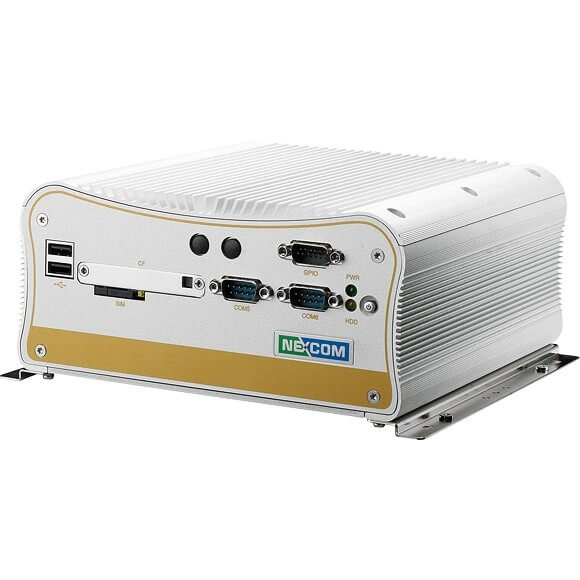

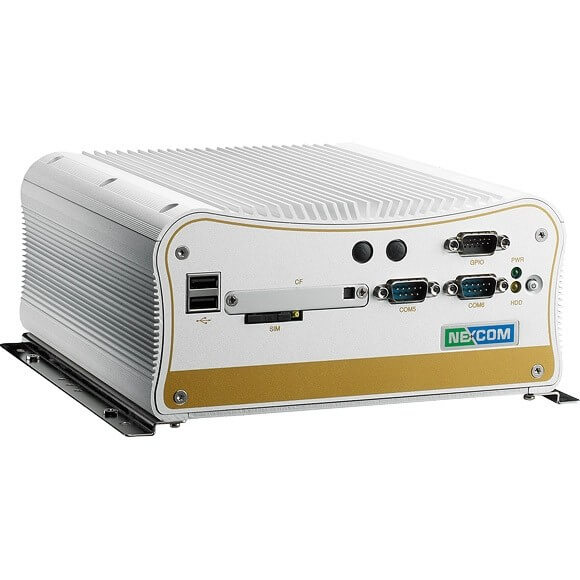

Fotogalerie
