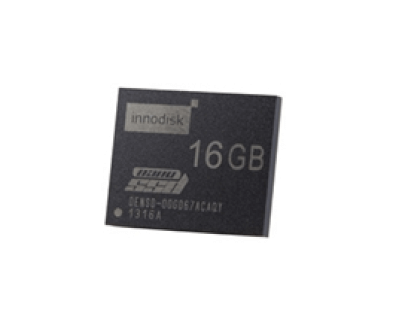

nanoSSD 3SE
Innodisk nanoSSD is an integrated SATA storage device.
Základní informace
- Compliant with JEDEC MO-276 Specification
- SATA III 6Gbps
- Support NCQ
- Intelligent Flash management & real time garbage collection
- Supports S.M.A.R.T, and iSMART utility
- Zero mechanical interference
Innodisk nanoSSD is an integrated SATA storage device; it offers high performance, light weight, low power consumption and cost efficiency in a JEDEC MO-276(μSSD) standard form factor. The nanoSSD combines with SATA III Flash controller, making it a great solution for embedded, thin PC, automotive, medical, gaming and most industrial applications.
Specifikace
| Model Name | nanoSSD 3SE |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | SLC |
| Type | Standard |
| Capacity | 2GB~16GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 450/200 |
| Power rail | +3.3V, +1.8V, +1.2V ±10% |
| Max. Power Consumption | 2.5 W |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 16 x 20 x 1.7 |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
