nanoSSD 3IE3

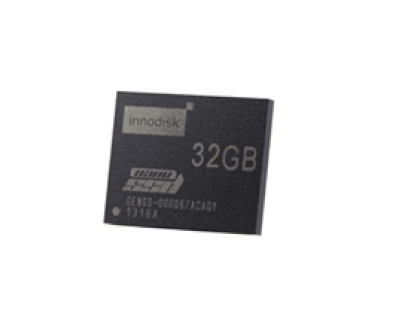

Innodisk nanoSSD is an integrated SATA storage device.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Compliant with JEDEC MO-276 Specification
  • SATA III 6Gbps
  • Supports NCQ
  • Intelligent Flash management & real time garbage collection
  • Supports S.M.A.R.T, and iSMART utility
  • Zero mechanical interference

Innodisk nanoSSD is an integrated SATA storage device; it offers high performance, light weight, low power consumption and cost efficiency in a JEDEC MO-276(μSSD) standard form factor. The nanoSSD combines with SATA III Flash controller, making it a great solution for a wide range embedded system, thin PC, automotive device, medical equipment and most industrial applications.

nanoSSD also comes with industrial level firmware design for extreme environments as well as the possibility for customized firmware to enhance the fitness in different applications.


Model Name nanoSSD 3IE3
Interface SATA III 6.0 Gb/s
Flash Type iSLC
Type Standard
Capacity 16GB~64GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 440/260
Power rail +3.3V, +1.8V, +1.2V ±10%
Max. Power Consumption 2.3W
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 16.0 x 20.0 x 1.7
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
