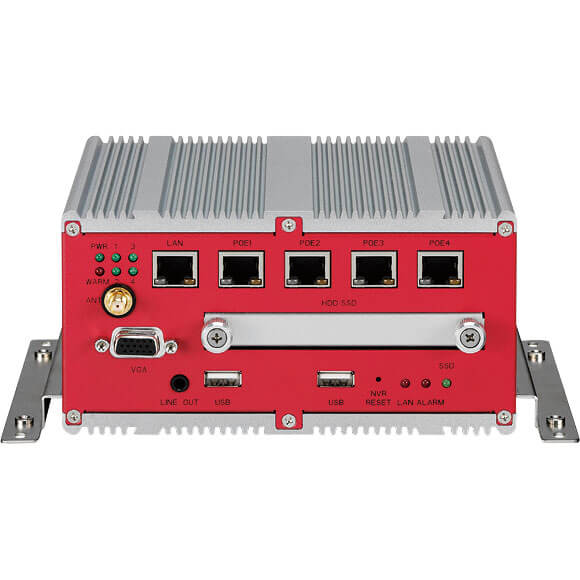

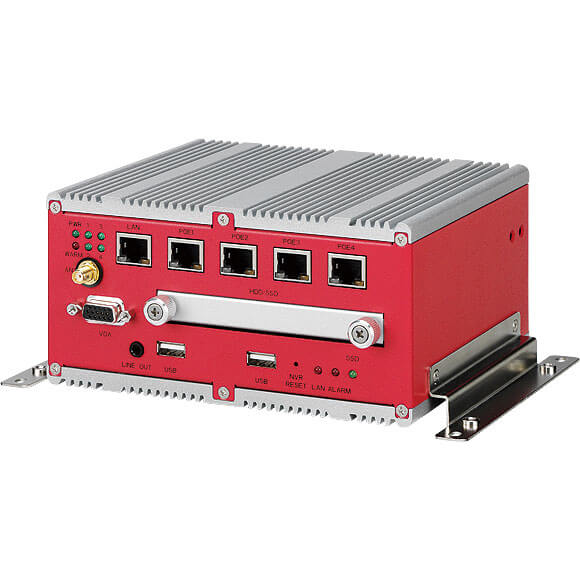

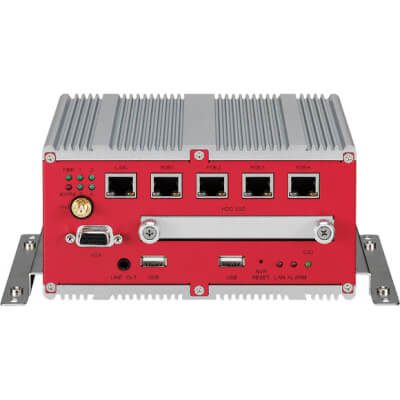

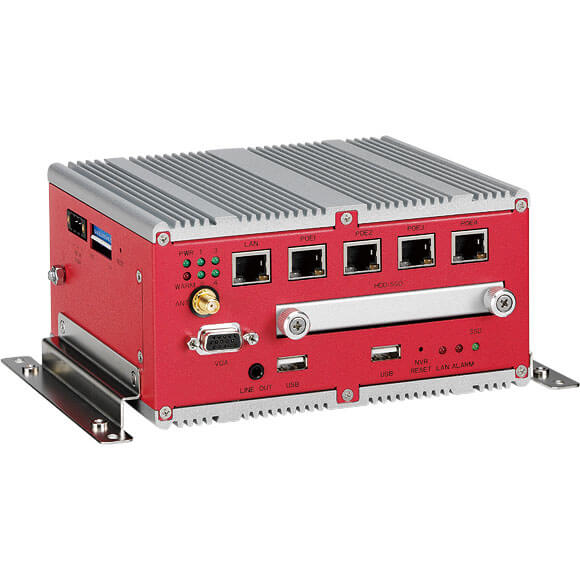

NANO 1190-C4S

Standalone Networking Video Recorder for Vehicle

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní infomace

  • Standalone NVR (embedded VMS built-in)
  • 4 x PoE ports 4ch IP Camera 1080p@120fps
  • Support ONVIF compliant camera
  • Support Samba/NFS/FTP protocols to connect NAS
  • Capability of assigning fixed IP address
  • 802.3at/820.3af (Max. 60W)
  • 2.5" removable SSD
  • Operating temp.: -40°C ~ 70°C
  • 9V ~ 36V DC in
  • CE/FCC/E13 certificated


NVR Video decoder: H.264/MPEG-4/M-JPEG
Audio decoder: G.726/G.711
Up to 9ch liveview/record/playback simultaneously
Liveview by single/quad/9 video
Recording video by schedule/motion detection
Auto recycle recording (First In First Out)
Storage 1 x 2.5" SATA 2.0
I/O Interface-Front 1 x Power LED light for NVR software
1 x Storage LED light
1 x Alarm LED light
1 x CAM LED light
2 x USB 2.0 type A (one for KB/MS)
1 x Reset button
1 x Line-out
1 x VGA
1 x 2.5" removable SSD
4 x PoE LED light
1 x Power LED for the complete system
1 x PSE LED light
4 x PoE (802.3af/at, Max. 60W)
1 x Giga LAN
- RJ45
I/O Interface-Lateral 1 x DIP switch (10bits)
1 x Power connector
- Terminal block
Power Management 9V ~ 36V DC input
8 level power on/off delay time by DIP swith
Reverse protection/Over voltage protection
OCP with field replaceable fuse
Programmable voltage setting
Dimension 165mm (W) x 137.6mm (D) x 82.5mm (H) (6.50" x 5.42" x 3.25")
Weight: 1.75kg
Operating System Embedded VMS built-in
Environment Operating temperatures: -40°C ~ 70°C (w/ industrial SSD) with air flow
Storage temperatures: -40°C to 85°C
Damp Heat test: EN60068-2-30
Relative humidity: IEC60068-2-3 10% to 95% (non-condensing)
Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24
MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
Crash hazard: Procedure V, ground equipment=75g
Certifications CE/FCC class A/E13
