8GB high-performance display controller

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Optimal performance
  • Reliable longevity
  • Guaranteed workflow support

Ultimate solution for mainstream diagnostic imaging

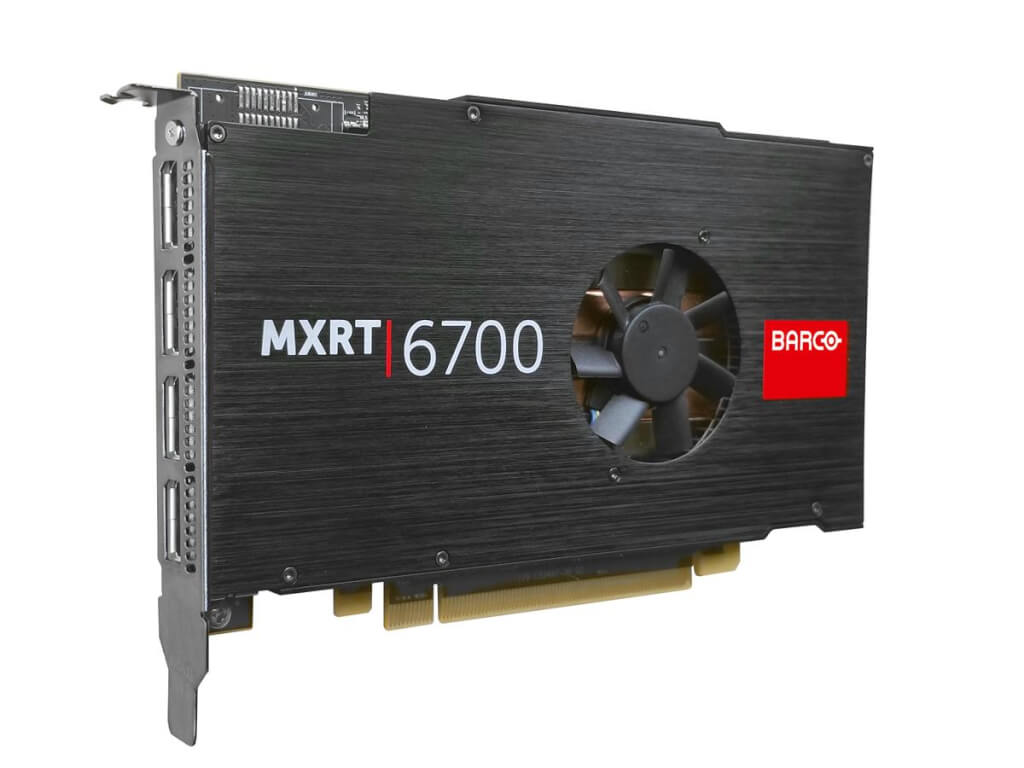

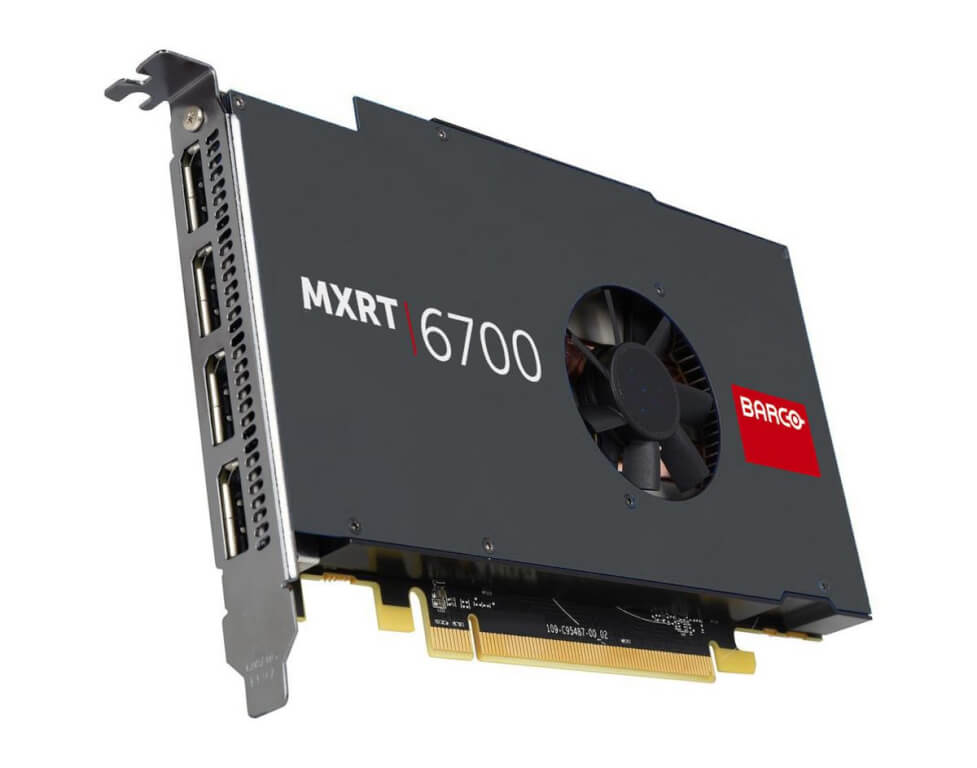

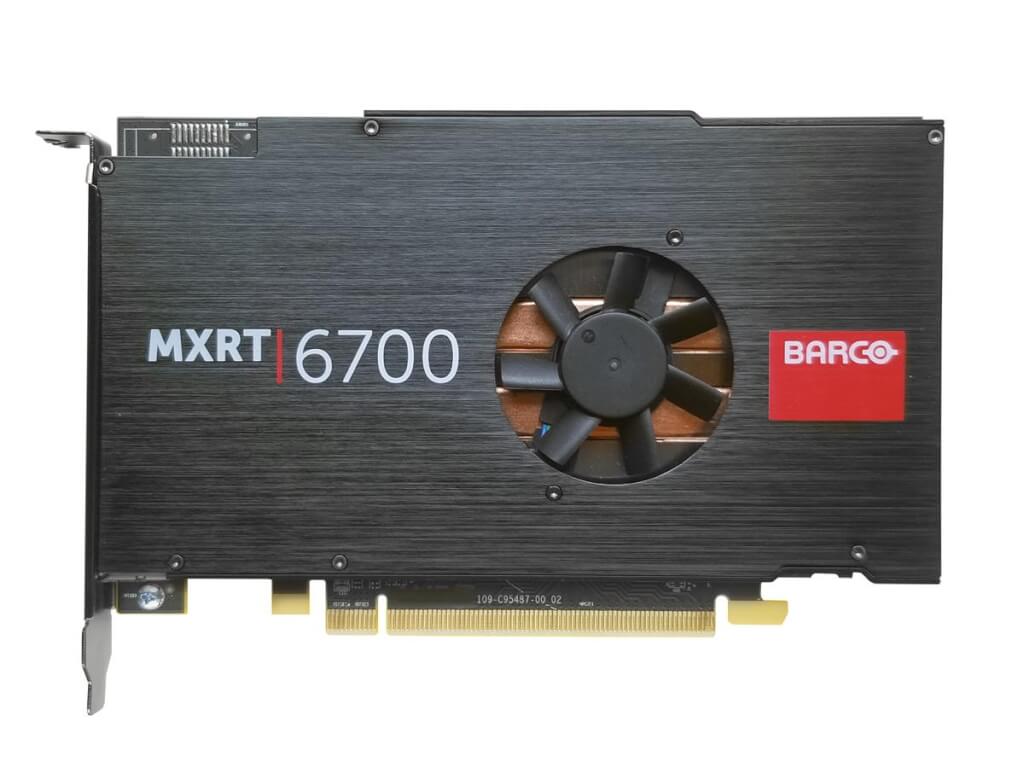

The high-performing Barco MXRT-6700 graphics card is a versatile solution with the power and features necessary to meet most diagnostic imaging needs. With 8GB of graphics memory driving four DisplayPort v1.4 outputs, it is the ideal solution for organizations looking to standardize on one controller across their entire fleet of reading stations.

Accelerate your workflow application responsiveness with 1792 stream processors and enable more efficient data transfers between the GPU and CPU with PCIe® 3.0 support. Key features include 4 ports to cover expanded display arrays, increased memory for larger image data loading, EDID emulation for multi-workstation configurations, and Thunderbolt™ 3 compatibility for eGFX applications.


Please consult your Barco representative to confirm validated configurations and availability in your region.


  • 8GB GDDR5 display memory
  • 160 GB/s memory bandwidth
  • 256-bit memory interface
  • 4 DisplayPorts 1.4
  • Maximum power consumption: 75W


Bus compatibility PCIe Gen3 x16
Power consumption 75 W
Form factor 173mm (L) x 112mm (H) single wide PCIe slot
Operating system Windows 7 (64-bit), Windows 10 (64-bit)
Platforms Intel® and AMD architectures
Power Connector None
Graphics accelerator AMD Radeon Pro™
Display memory 8GB DDR5
Memory interface 256-bit
Memory bandwidth 160 GB/s
Pixel depth 32-bit pixels (10-bit grayscale and 30-bit color)
Electrical standard DisplayPort (DP) v1.4
Direct3D hardware support Microsoft® DirectX v12, Vulkan® 1.1, Shader Model 5.1
OpenGL hardware support OpenGL 4.5
Connectors (4x) DisplayPort 1.4
Approvals and compliance FCC Part 15 Class B, CE EN 55032 Limit B, EN 55024, UL-60950-1, BMSI CNS, CISPR- 32/24, IEC609050-1, VCCI, CSA C22.2, EU RoHS directive (2011/65/EU), Certificate of Information & Communication Equipment (Republic of Korea)
Operational temperature 0° to 55°C
Connectivity Native DisplayPort suggested
DisplayPort to Single-link DVI adapter available separately
