Redefining entry-level workflow

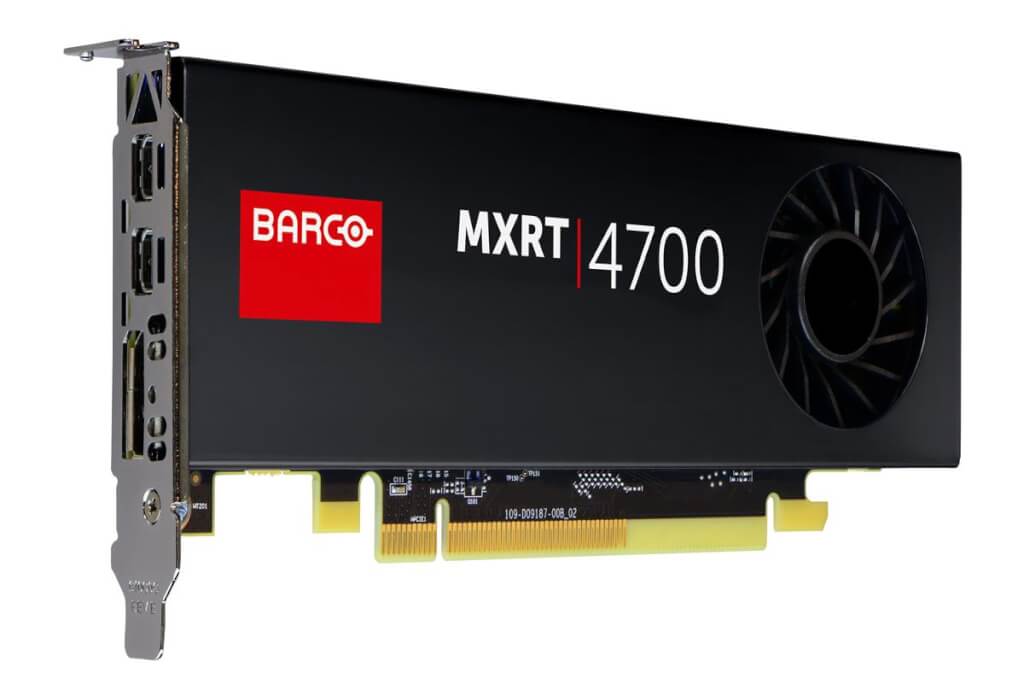

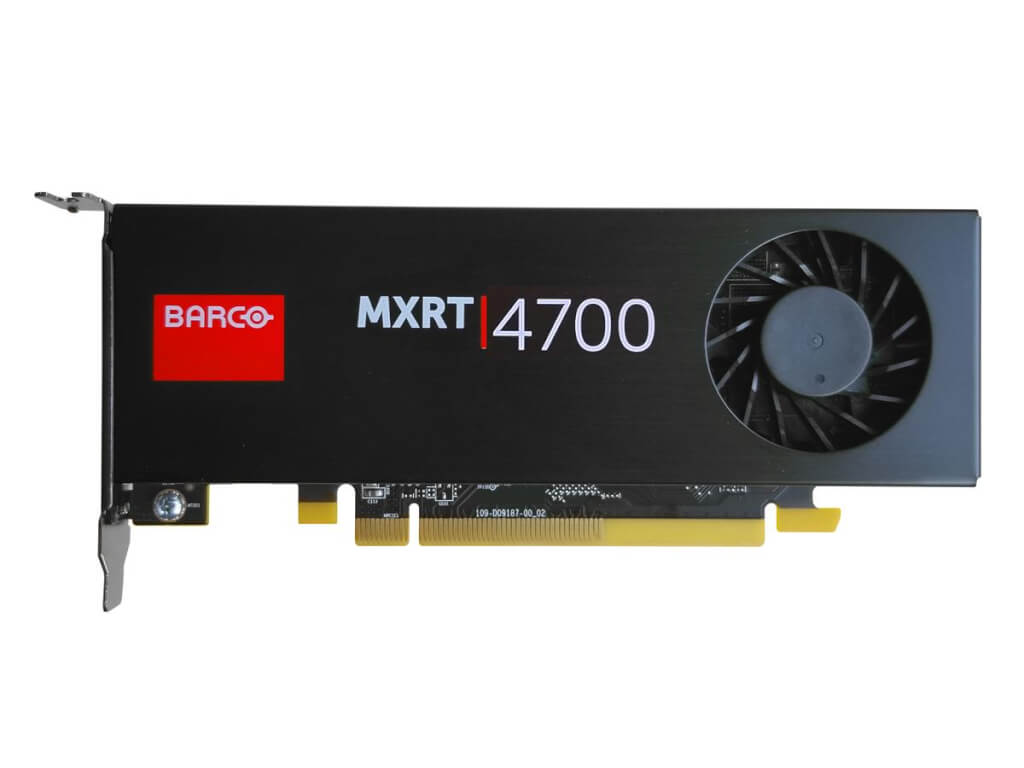

The Barco MXRT-4700 graphics card packs all the power expected from larger display controllers into a compact package capable of delivering seamless performance whether reading at the hospital or from home. With 4GB of graphics memory driving three DisplayPort 1.4 outputs, it is the ideal solution for those looking for a no-compromise, reliable professional graphics card versatile enough to drive larger resolution displays.

Accelerate your workflow application responsiveness with 512 stream processors and enable more efficient data transfers between the GPU and CPU with PCIe® 3.0 support. Key features include 3 ports to cover most basic display configurations, increased memory for larger PACS data loading, EDID emulation for multi-workstation configurations, and 30-bit color depth support in a low power, compact form factor.


  • 4GB GDDR5 display memory
  • 96 GB/s memory bandwidth
  • 128-bit memory interface
  • 1 DisplayPort 1.4 & 2 mini DisplayPorts 1.4 (2 mDP to DP locking adapters included)
  • Maximum power consumption: <50W


Bus compatibility PCIe Gen3 x8
Power consumption < 50W
Form factor 168 mm (L) x 60mm (H) single wide PCIe slot
Operating system Windows 7 (64-bit), Windows 10 (64-bit)
Platforms Intel® and AMD architectures
Power Connector None
Graphics accelerator AMD Radeon Pro™
Display memory 4GB DDR5
Memory interface 128-bit
Memory bandwidth 96 GB/s
Pixel depth 32-bit pixels (10-bit grayscale and 30-bit color)
Electrical standard DisplayPort (DP) v1.4
Direct3D hardware support Microsoft® DirectX v12, Vulkan® 1.1, Shader Model 5.1
OpenGL hardware support OpenGL 4.5
Connectors (1x) DisplayPort 1.4 (2x) Mini-DisplayPort 1.4
Connectivity Native DisplayPort suggested
DisplayPort to Single-link DVI adapter available separately
(2x) Mini-DP to DP locking adapter included
Operational temperature 0° to 55°C
Approvals and compliance FCC Part 15 Class B, CE EN 55032 Limit B, EN 55024, UL-60950-1, BMSI CNS, CISPR- 32/24, IEC609050-1, VCCI, CSA C22.2, EU RoHS directive (2011/65/EU), Certificate of Information & Communication Equipment (Republic of Korea)
