MVS 5600-IP

In-Vehicle IP65-rated Box Computer

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • IP65-rated rugged design
  • Intel® Core™ dual core i7-6600U/i3-6100U (Skylake)
  • 9~36VDC with ignition control
  • Built-in GPS with optional dead reckoning
  • Up to 2WLAN or two 3G/LTE via 3 mini-PCIe slots
  • Electrical isolation for CAN 2.0B & GPI/O
  • Optional OBD function (SAE J1939/J1708)
  • Rich and various GbE, USB 2.0/3.0, serial I/O and storages
  • Compliant to E-mark and ISO 7637-2
  • Compliant to MIL-STD-810G in vibration/shock

Specifikace

CPU 6th generation Intel® Core™ dual core i7-6600U, 3.4GHz/i3-6100U, 2.3GHz
Memory 204-pin DDR3L SO-DMIM socket support 1600MHz up to 16GB
2GB industrial grade memory in default
Storage 1 x 2.5" SATA 3.0 SSD/HDD
1 x CFast (externally acessible)
Expansion 1 x full size mini-PCIe socket (USB 3.0/2.0)
1 x full size mini-PCIe socket (USB 2.0)
1 x full size mini-PCIe socket (USB 2.0 + PCIe)
1 x half size mini-PCIe socket (USB 2.0 + PCIe)
GPS and On Board Sensor 1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou
Optional modules with Dead Reckoning available
Built-in G-sensor
Ethernet 2-port 10/100/1000 Mbps
Controller: Intel® 1210-T1
Security TPM in option

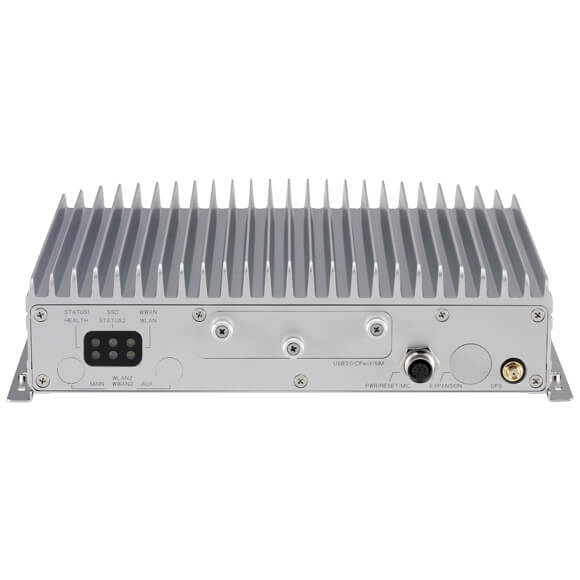

I/O Interface-Front 6 x LED indicators for power/storage/WLAN/WWAN/Status/Health
1 x USB type A USB 3.0 port (w/ lid)
1 x SIM slot (w/ lid)
1 x Mic-in, 1 x Line-out, power & reset buttons for M12 connector
3 x antenna holes for WWAN/GPSOne expansion port (M12-type) reserved

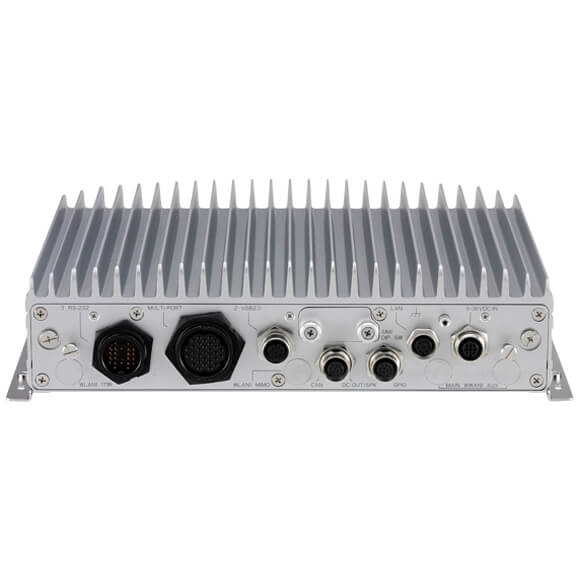

I/O Interface-Rear Circular 22-pin:
- 3 x RS-232 (two for full, RI/5V/12V selectable)
M12 8-pin:
- 1 x GbE
M12 8-pin:
- 2 x USB 2.0
M12 12-pin:
- 3-bit GPO & 3-bit GPI
- iButton
M12 12-pin:
- 1 x Line-out
- DC12V-out, 2A max.
- OBD from optional VIOB-CAN-05/06 module (SAE J1708/J1939)
- 2 x CAN Bus 2.0B from optional VIOB-CAN-04 module
Circular 31-pin:
- 1 x VGA, resolution up to 2560 x 1600 @60Hz
- 1 x GbE
- 2 x RS-485 (2-wire)
- 1 x CAN 2.0B w/ isolation
M12 S-code:
- DC 9~36V input with ignition and 40W typical power consumption
6-bit DIP switch (w/ lid)
3 x Digital inputs
- Source-type: 9~36V-in (default)
- Eexternal-type: 0~33VDC pull-high
- Isolation
3 x Digital outputs
- Source-type: 9~36V-in (norminal 40mA@24V) (default)
- External 5~27VDC pull-high, sink current: typical 220mA for each bit, 500mA max (@25°C)
- Isolation
Source or external selected by 6-bit DIP Switch
1 x SIM card socket (w/ lid) and 1x internal SIM card socket selectable
4 x antenna holes for WLAN/WWAN
1 x M12 S-code for 9~36VDC-IN
Power Management Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode
Operating System Windows 7/WES7
Windows 8/WES8
Windows 10
Linux kernel 3.X
Dimensions 260mm (W) x 198mm (D) x 66.5mm (H) (10.24" x 7.80" x 2.62")
3.3kg
Environment Operating temperatures:
-30°C~60°C (w/ industrial SSD) with air flow
Storage temperatures: -40°C~80°C
Relative humidity: 10% to 90% (non-condensing)
Vibration (random):
1.5g@5~500 Hz (in operation, HDD), 2g@5~500 Hz (in operation, SSD)
Vibration (SSD):
- Operating: MIL-STD-810G, 514.6C, Category 4
- Storage: MIL-STD-810G, 514.6, Category 24, minimum integrity test
Shock (SSD/HDD):
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications CE approval, FCC Class A, E13
