MVS 5210-R

8-CH PoE Premium Railway Mobile NVR

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Multitasking PC+NVR
  • Train information stamp in video
  • 8 x M12 10/100/1000 Mbps 802.3af PoE ports
  • VMS software installed
  • 5th generation Intel® Core™ dual core i7-5650U, 2.2GHz
  • Dual removable SATA 3.0 SSD/HDD
  • EN50155 Class TX conformity
  • 24VDC and 110VDC power input



NVR System Video Codec
- H.264
Audio Codec
- G.726/G.711
Live View Resolutions
Recording Resolution
Live Preview
- Support 1/4/9 division, full-screen, snapshot
- Round the clock/motion record modes/event trigger
Record Device
- 2 x 2.5” SATA 2.0 removable HDD/SSD trays with lock
- 1/4/9 division, full-screen/snapshot/display original ratio or fit window
- Search mode: Play/reverse/pause/seek/pre frame/next frame
- Speeds: 1/4, 1/2, 1, 2, 4, 8, 16, 32
Video Stamp
- Capability to show and record railway information in video
* AMTK camera is required
Camera Setting
- Auto search, profile selectable, ONVIF support
Disk Management
- Partition management, format partition, S.M.A.R.T status
PC System - 5th generation Intel® Core™ dual core i7-5650U, 2.2GHzMemory
- 2-channel 204-pin DDR3L SO-DMIM socket support 1600MHz up to 16GB, default 2GB industrial grade memory
- 1 x CFast (externally accessible), 1 x mSATA
- 1 x full size Mini-PCIe socket (USB 2.0), 1 x full size Mini-PCIe socket (USB 2.0 + PCIe), 1 x full size Mini-PCIe socket (mSATA)
GPS and On Board Sensor
- 1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou
- Optional modules with Dead Reckoning available
- Built-in G-sensor
Power over Ethernet
- 8-port M12 for 10/100/1000 Mbps PoE IEEE 802.3af conformity, total 60W
I/O Interface-Front PC Function
- 4 x LED indicators for power/storage/WLAN/WWAN
- 1 x CFast socket with cover. 1 x Reset button
- 2 x dual USB type A connectors for 1 x USB 3.0 + 1 x USB 2.0 port
- 1 x DB15 connector
MCU DIO (2 x DI, 2 x DO), 1 x analog input, 1 x speed frequency input, 1 x iButton, 1 x RS232 (for RFID reader w/ 12VDC output),
1 x direction signal for optional Dead Reckoning module
- 2 x externally accessible SIM card sockets (selectable)
- 6 x antenna holes for WWAN/WLAN/BT/GPS
NVR Function
- 2 x removable 2.5" HDD/SSD trays with lock
- 1 x DB-15 VGA output for live view
- 1 x DB-15 VGA input for PC VGA switch

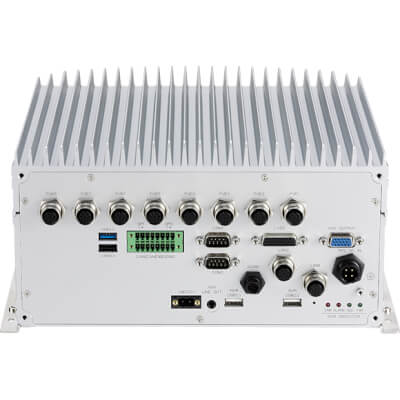

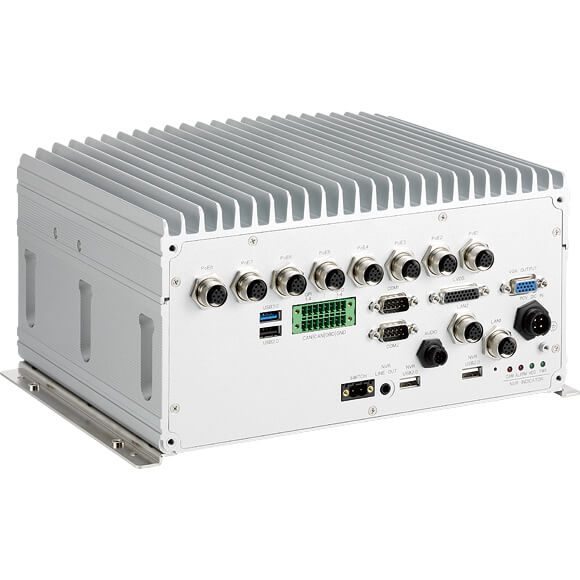

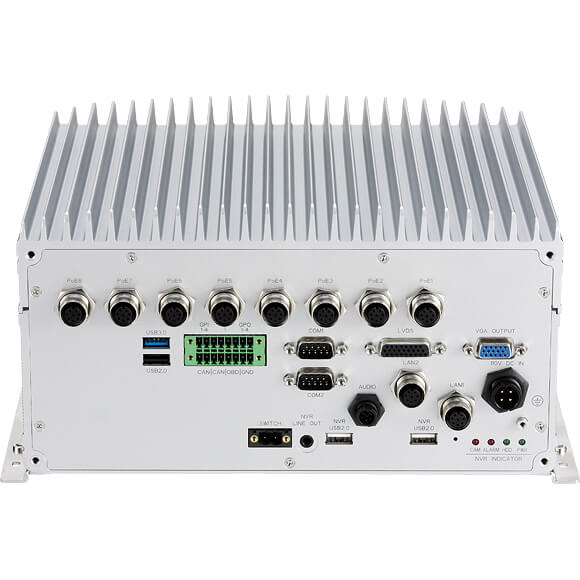

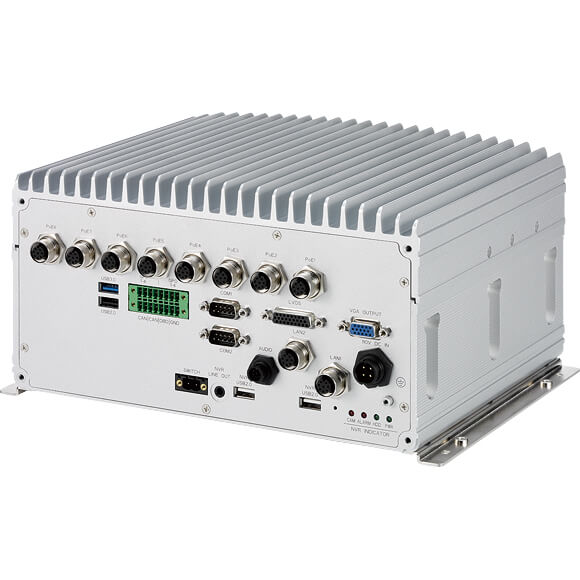

I/O Interface-Rear - 8 x M12 10/100/1000 Mbps PoE ports
- 2 x M12 10/100/1000 Intel® Fast Ethernet with LED
- 1 x 24VDC/110VDC input in circular connector with ignition and 80W typical power consumption
- 1 x dual USB type A connector for USB 3.0 port + USB 2.0 port
- 1 x M12 connector for 1 x Mic-in and 1 x Line-out
- 1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz
- 1 x DB26 LVDS interface with 12V and USB2.0
- 2 x DB-9 RS-232/422/485 (w/ optional 3KV isolation protection)
- 1 x 16-pin terminal block connector
- 1 x CAN Bus 2.0B (on board)
- 8 x GPIO
(4 x Digital inputs, w/ optional 3KV isolation protection)
Input voltage (internal type): 5VDC TTL (default)
Input voltage (source type): 3~12VDC
(4 x Digital outputs, w/ optional 3KV isolation protection)
Digital output (sink type): 5VDC TTL (default), max current: 20mA
Digital output (source type): 3~24VDC, max current: 150mA
NVR Function
- 2 x USB type A connectors, 1 x Reset button
- 1 x switch for VGA input selection (NVR or PC)
- 4 x LED indicators for power/storage/storage alarm/camera
- 1 x phone jack 3.5mm for 1 x Line-out
Power Management Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode
Optional internal 1100mAh, Li-Polymer rechargeable battery
Operating System Windows 7/WES7
Windows 8/WES8
Linux kernel 3.X
Dimensions 260mm (W) x 206mm (D) x 137mm (H) (10.24" x 8.11" x 5.39")3.3kg
Environment Operating temperatures: EN50155 Class TX (w/ industrial SSD) with air flow
Storage temperatures: -40°C~80°C
Relative humidity: 10% to 90% (non-condensing)
Vibration (random): 1g@5~500 Hz (in operation, HDD), 2g@5~500 Hz (in operation, SSD)
Vibration (SSD/HDD):
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
Shock (SSD/HDD):
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications CE approval, FCC Class A, EN50155 Class TX
