MTC-361/2

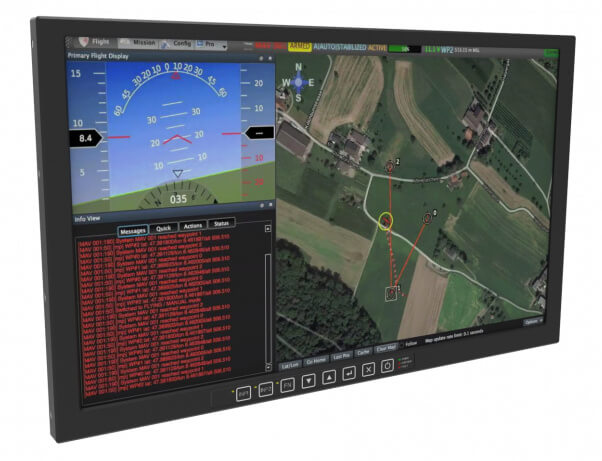

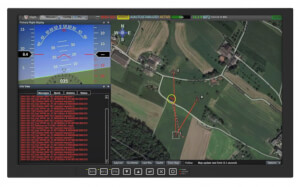

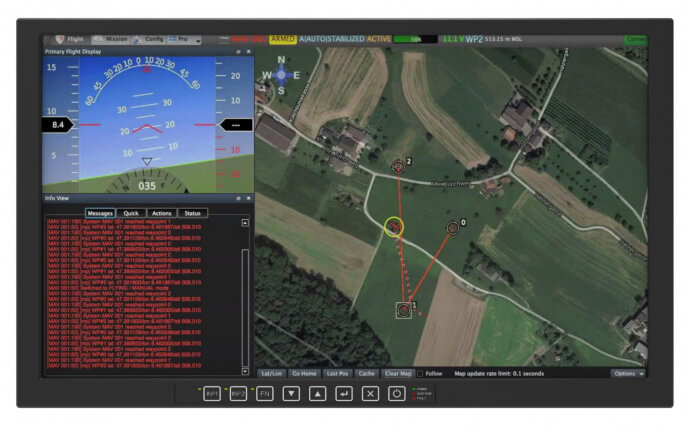

The MTC-361/2 is a 24” FHD multi-touch display with a medium ruggedization level.
Základní informace
- Cost effectiveness
- Long life
- Low weight, slim design
- Low power consumption
- Frozen Image detection
- Multi-Touch (4 simultaneous touches)
The MTC-361/2 is a 24” FHD multi-touch display with a medium ruggedization level. Its exceptionally slim display design and low weight make the MTC-361/2 perfectly suited for ground mobile, fixed shelter applications as well as for naval and industrial applications.
Being the successor of the first generation MTC-
361, the MTC-361/2 serves as a true drop in replacement and features the same functions and benefits as its predecessor: full HD resolution (1920 x 1080), excellent performance in terms of brightness, crispness, contrast, and viewing angle, long lifetime and reduced power consumption. In addition, the MTC-361/2 offers safety features such as frozen image detection and RS-422 touch communication.
The MTC-361/2 features intuitive projected capacitive touch control with up to 4 individual and simultaneous touches, allowing fluent drag and drop actions. Its touch screen can be operated with finger tips or conductive stylus. The projected capacitive (PCAP) touch technology excels with high touch accuracy, dust and water resistance and has no impact whatsoever on the display’s optical performance. Designed with dual DVI, VGA and HD-SDI inputs, the MTC-361/2 provides the flexibility to support both new and legacy systems and allows switching between multiple inputs with the touch of a button.
Specifikace
| Panel type | Active Matrix LCD |
| Panel active area | 23.8 inch diagonal |
| Resolution | 1920 x 1080 (FHD) |
| Backlight | LED |
| Dimming ratio | 300:1 |
| Contrast ratio | 1000:1 |
| Brightness | 300 cd/m² (88fL) typical |
| Viewing angle | ± 89° horizontal and vertical |
| Touch | Projected Capacitive multi touch (4 simultaneous touches) |
| Signal Inputs | DVI-D / VGA / HD-SDI |
| USB | USB2.0 for Touch communication |
| RS | RS-422 for Touch communication |
| Vibration Transportation (air & truck) |
MIL-STD-810F Meth. 514.5 Fig. 514.5C-6 & Fig 514.5C-1 |
| Functional Shock | MIL-STD-810F Meth. 516.5, Proc I · 10 g – 11 ms · 3 shocks in each of the orthogonal axes (X,Y,Z) |
| Operational Temperature | MIL-STD-810F Meth 501.4 and Meth 502.4, Proc II · high temperature: + 50°C (122°F) · low temperature: 0°C (32°F) |
| Storage Temperature | MIL-STD-810F Meth 501.4 and Meth 502.4, Proc I · high temperature: + 65°C (149°F) · low temperature: - 25°C (-13°F) |
| Relative Humidity | MIL-STD-810F Meth 507.4 |
| Enclosure (Drip) | MIL-STD-810F Meth 506.4, Proc III, on display front |
| Altitude low pressure | MIL-STD-810F Meth 500.4, Proc I & II · operating: up to 10,000ft (696mbar) · non-operating: up to 40,000ft (187mbar) |
| EMI / EMC | MIL-STD-461F – ground applications Navy Fixed & Airforce |
| Controls |
OSD/web interface |
| Indicators | Green ‘Power’ LED, Red ‘Fault’ LED |
| OSD | On Screen Display & web interface |
| Power | 110 - 230VAC 47 - 63Hz |
| Power consumption | maximum 65W (at full display brightness) |
| Weight | 7.80 ± 0.25 kg (17.2 ± 0.55 lbs) |
| Cooling | Passive |
| Finishing | Bezel color: Black RAL 9005 Surface treatment: ROHS compliant Chromated Cr3 (MIL-DTL-5541 type II Class 3) |
