mSATA mini 3ME3

SATA 6Gb/s interface

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA 6Gb/s interface
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Zero mechanical interference
  • Anti-vibration mechanical design
  • JEDEC standard MO-300 dimension

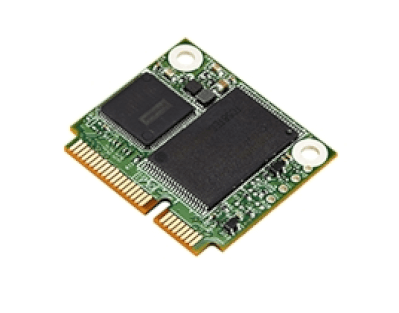

Innodisk mSATA mini 3ME3 is designed with mSATA mini form factor by MO-300/MO-300B which established by JEDEC, and support SATA III standard (6.0Gb/s) with excellent performance. Regarding of mechanical interference, Innodisk mSATA mini 3ME3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.


Innodisk mSATA mini 3ME3 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

Specifikace

Model Name mSATA mini 3ME3
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type Standard
Capacity 8GB~128GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 220/80
Max. Power Consumption 0.5 W (3.3V x 150 mA )
Thermal Sensor ST- Optional / WT- Default
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 29.85 x 26.8 x 3.7
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
