mSATA mini 3IE4

SATA 6.0 Gb/s interface

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA 6.0 Gb/s interface
  • Exclusive iSLC FW architecture
  • Followed JEDEC MO-300/MO-300B standard
  • LDPC technology secures SSD reliability
  • DRAM-less, high-level data integrity
  • L³ architecture extends lifespan
  • Excellent IOPS boosts system performance
  • Built-in thermal sensor
  • Support S.M.A.R.T, TRIM, NCQ and iData Guard

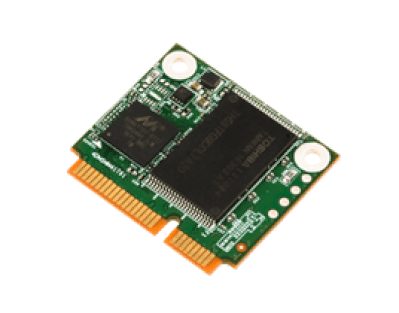

Innodisk mSATA mini 3IE4 is SATA III 6.0 Gb/s flash based disk, which adopts latest Marvell NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodik signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3IE4 series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of mSATA mini 3IE4 for industrial applications.

Specifikace

Model Name mSATA mini 3IE4
Interface SATA III 6.0 Gb/s
Flash Type iSLC
Type Standard
Capacity 8GB~64GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 530/340
Max. Power Consumption 0.6 W ( 3.3 V x 0.2 A )
Thermal Sensor Y
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 30 x 26.8 x 3.4
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
