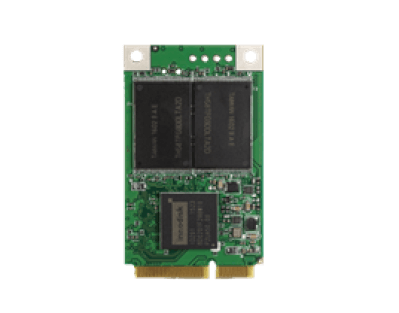

mSATA 3MV2-P
SATA 6Gb/s interface
Základní informace
- SATA 6Gb/s interface
- JEDEC MO-300 standard dimension
- High IOPS by on-board DRAM design
- Intelligent error recovery system
- iSMART disk health monitoring
- iData Guard for abnormal power failure
- Zero mechanical interference
- DEVSLP supported
InnoREC is innodisk’s proprietary flash feature set designed specifically for surveillance applications. Through the smart integration of firmware and hardware, the speed and performance required by modern surveillance solutions is fully met. mSATA 3MV2-P products provide high capacity flash memory Solid State Drive (SSD) that electrically complies with Serial ATA (SATA) standard. It supports SATA III standard (6.0GHz) with high performance and supports several features, including RECline, iData Guard, iCell, Quick Erase, Thermal sensor, passive cooling and S.M.A.R.T.
Specifikace
| Model Name | mSATA 3MV2-P |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | Standard |
| Capacity | 8GB~512GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 560/450 |
| Max. Power Consumption | 2.8 W ( 3.3 V x 0.86 A ) |
| Thermal Sensor | Y |
| H/W Write Protect | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 29.85 X 50.8 X 3.6 mm |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
