  • SATA III solution for industrial field
  • High IOPS with 3D NAND solution
  • L³ architecture extends lifespan
  • RAID protection
  • iData Guard technology for abnormal power failure
  • Built-in thermal sensor
  • iCell technology for data protection (optional)
  • iSMART disk health monitoring

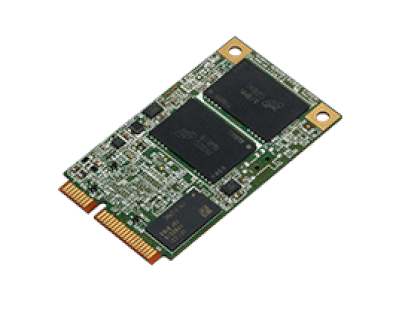

3MG5-P is Innodisk’s first product series supported 3D NAND flash. Innodisk mSATA 3MG5-P is characterized by L³ firmware architecture and RAID engine with the latest SATA III (6.0GHz) ID204 controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan. Innodisk mSATA 3MG5-P is equipped RAID engine to offer additional level of data protection for exceptional reliability.


Model Name mSATA 3MG5-P
Interface SATA III 6.0 Gb/s
Flash Type 3D MLC
Capacity 128GB/256GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 560/520
Max. Power Consumption 2.2 W (3.3V x 674 mA )
Thermal Sensor Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 29.85 x 50.80 x 3.7
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C
