mSATA 3MG2-P AES

SATA 6.0 Gb/s interface

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA 6.0 Gb/s interface
  • JEDEC MO-300 standard dimension
  • High IOPS by on-board DRAM design
  • Intelligent error recovery system
  • iSMART disk health monitoring
  • iData Guard for abnormal power failure
  • Zero mechanical interference
  • DEVSLP supported

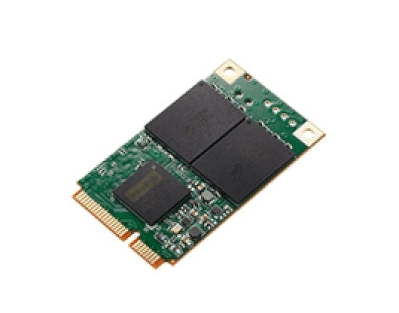

Innodisk mSATA 3MG2-P is designed with AES engine, which is built-in the controller. When controller receives the data package from host, AES engine encrypts the data package and save the encrypted data into NAND flash. Thus, unauthorized personal has no access to decrypt the data in NAND flash. Featuring L² architecture, the life span of the SSD is maximized by an evolved wear leveling algorithm. Furthermore, mSATA 3MG2-P supports TRIM for Windows 7, it can improves performance when deleting files.

mSATA 3MG2-P with AES not only performs unmatched performance, but also designed with Innodisk owned technical knowhow such as iData Guard to ensure the data integrity and highest levels of reliability.

Specifikace

Model Name mSATA 3MG2-P AES
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type Standard
Capacity 16GB~512GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 530/370
Max. Power Consumption 5.4W ( 3.3 V x 1.64 A )
Thermal Sensor Y
H/W Write Protect Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 29.85 x 50.8 x 3.6
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
