mSATA 3ME2

SATA 6Gb/s interface

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA 6Gb/s interface
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Zero mechanical interference
  • Anti-vibration mechanical design
  • JEDEC standard MO-300 dimension

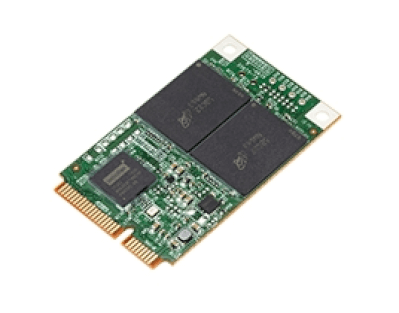

Innodisk mSATA 3ME2 is designed with mSATA form factor by MO-300/MO-300B which established by JEDEC, and support SATA III standard (6.0Gb/s) with excellent performance. Regarding of mechanical interference, Innodisk mSATA 3ME2 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk mSATA 3ME2 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no
additional drives are required, and can be configured as a boot device or data storage device.

Specifikace

Model Name mSATA 3ME2
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type Standard
Capacity 16GB~256GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 440/150
Max. Power Consumption 2.6 W (3.3V x 810 mA )
Thermal Sensor ST- Optional
H/W Write Protect Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 29.8 x 50.8 x 3.4
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
