mSATA 2SR
The mSATA 2SR is an SLC-based flash device and is available in capacities from 4GB up to 64GB.
Základní informace
- Compliant with MIL-STD-810-F/G
- Data Security
- Excellent data transfer speed
- Conformal coating (Optional)

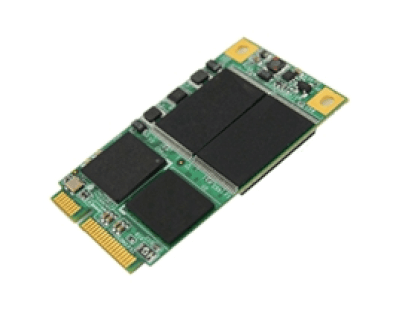

Innodisk’s mSATA 2SR is designed in a standard mini PCIe form factor with a SATA interface. It comes with several data security functions, including SEraser, QEraser, Destroy, and Write Protect. The mSATA 2SR also supports the SATA II standard (3.0Gb/s) and is compliant with JEDEC MO-300 standards and SATA-IO mini SATA standards. The mSATA 2SR is an SLC-based flash device and is available in capacities from 4GB up to 64GB.
Specifikace
| Model Name | mSATA 2SR |
| Interface | SATA II 3.0Gb/s |
| Flash Type | SLC |
| Type | Standard |
| Capacity | 4GB~ 64GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 110/90 |
| Max. Power Consumption | 1.72W (3.3V x 520mA) |
| Thermal Sensor | Y |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 29.8 x 50.8 x 4.1 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
