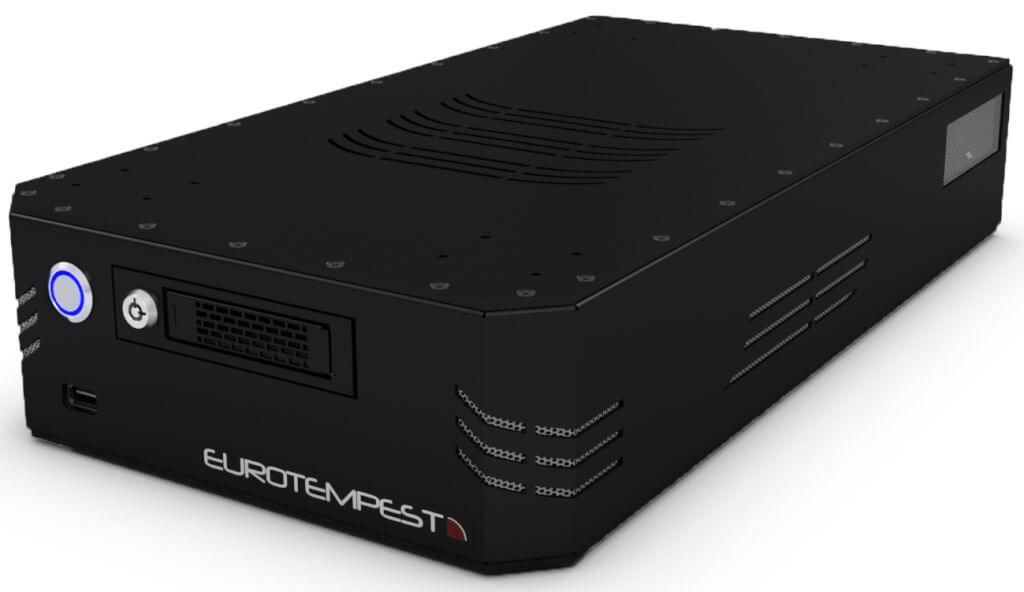

Modulus MRC 103-F
Rack mount computer
Základní informace
The Modulus MRC 103-F 2U rack-mount computer is part of our naval range of products and is designed for use in semi-rugged environments. MRC 103-F makes use of industrial grade components and is designed for quiet operation in confined spaces.
This rugged rackmount computer is MIL STD 461F compliant.
Specifikace
Pro konkrétní konfiguraci kontaktujte našeho projektového manažera.
| Computer platform |
Intel-based Intel® CoreTM 6th gen i7/i5/i3 LGA 1151 |
| Memory |
8 GB (2 x 4 GB 260-pin SO-DIMM) (max 32GB) DDR4 2133 MHz SDRAM |
| Video out |
1 x VGA (D15), 1 x DVI |
| Serial connectivity |
4 x USB 3.0, 4 x USB 2.0 (1 x USB 3.0 on front panel) |
| Network connectivity |
2 x Realtek 8111G – based RJ-45 |
| Internal connectivity |
3 x SATA-3, 2 x Mini-PCI-e |
| Noise level |
< 36 dBA at normal operation |
| Power supply |
6-30 V DC, 220 V AC optional |
| MTBF |
Designed to exceed 30 000 hours |
| Temperature range |
0 – 60° C (operating) * -40 ~ 85° C (storage) |
| Dimensions |

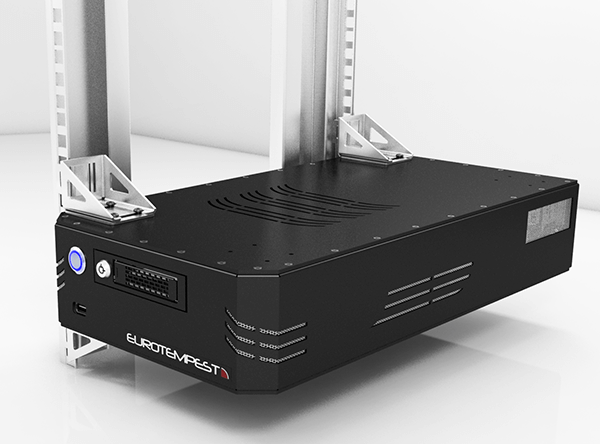

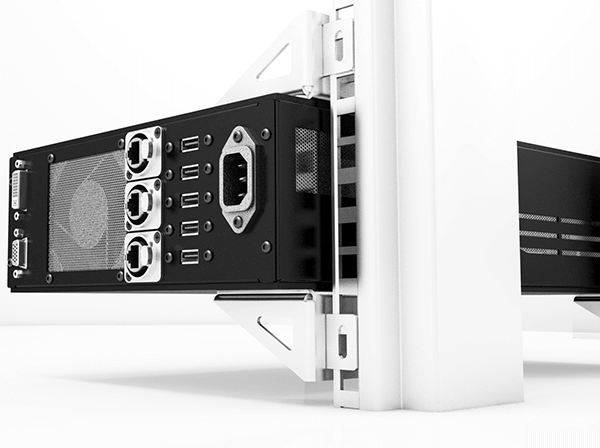

241 x 450 x 89 mm (2U, half-rack mount, side and top rack mounting options available) |
| Weight |
4.5 kg (may vary with configuration) |
| Compliance |
NATO SDIP 27/1 Level B |
