Modular Embedded Computer

3U CompactPCI Conduction-Cooled Turnkey Subsystems

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Detail

3U CompactPCI Conduction-Cooled Turnkey Subsystems

The Modular Embedded Computers are 3U cPCI rugged COTS subsystems designed to meet requirements of cost effective solution, low-power dissipation, compact dimension, conduction-cooled enclosure and come as a turnkey subsystem with preloaded real-time software.
Modular Embedded Computers are targeting markets where high efficiency and reliability are necessary in harsh environments, specially in avionics, vetronics and navtronics applications

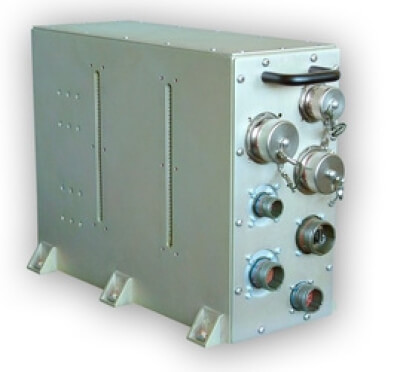

The MEC-PPC-AV1 is the first member of the PowerPC Modular Embedded Computers Series.
The MEC-PPC-AV1 is targeted towards the avionics market because of its ATR footprint dimensions, 28 VDC power supply, lightweight structure in aluminium, conduction cooled dissipation, MIL-STD-1553 links, MIL-C-38999 connectors and a very low power consumption of less than 17W.
Learn more: Rugged & COTS Technologies
