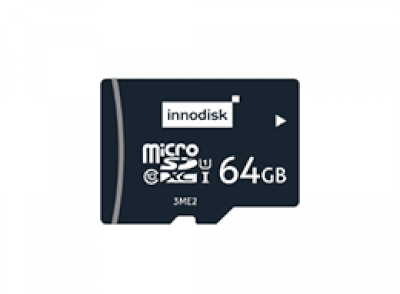

MicroSD Card 3ME2
Innodisk MicroSD 3ME2 series, supporting class 10 with UHS-I (Except 8GB ), are specifically designed for industrial PC and embedded applications.
Základní informace
- SD 3.0 interface
- Support Class 10 with UHS-I
- Adopt MLC NAND flash
- High performance
- Targeted for portable and stationary applications
- SMART function supported
Innodisk MicroSD 3ME2 series, supporting class 10 with UHS-I (Except 8GB ), are specifically designed for industrial PC and embedded applications. The 3.0 series SD card has latest firmware architecture and Flash algorithms, including superior wear leveling, and read disturb management ensuring highest reliability and endurance.
Innodisk MicroSD 3ME2 series provide wide range capacities from 8GB to 64GB with excellent quality MLC NAND Flash, and fully compliant to SD3.0, and SD2.0 specifications.
With its low power consumption and features above, Innodisk MicroSD 3ME2 series can be applied on industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile application.
Specifikace
| Model Name | MicroSD Card 3ME2 |
| Interface | SD 3.0 |
| Flash Type | MLC |
| Capacity | 8GB~64GB |
| Max. Channels | 1 |
| Sequential R/W (MB/sec, max.) | 76/32 |
| Max. Power Consumption | 0.7W (3.3V x 219mA) |
| ATA Security | N |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 11.0 x 15.0 x 1.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -25°C ~ +85°C |
| Operation Temperature | Standard Grade: -25°C ~ +85°C |
