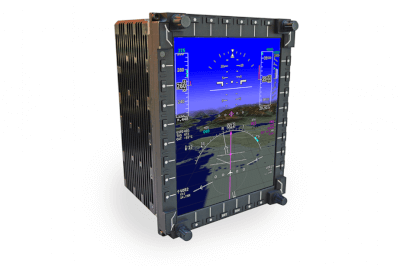

MFD-3068

Smart Multi Function Display

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073
Poptat řešení
Základní informace Specifikace Ke stažení

Základní informace

  • Powerful processing and graphics module with substantial growth capability
  • ScioTeq’s MOSArtTM middleware platform for hosting multiple software applications at different DAL levels (A to E)
  • Best-in-class true 8-bit AMLCD for superior color rendering
  • Very wide viewing angles – ideal for cross-cockpit viewability
  • Brightness up to 275fL, making it suitable for installation in helicopters and open cockpit aircraft
  • NVIS Class B compatibility
  • Large array of Input and Output interfaces – reduces the need for external data concentration
  • Quiet by design, thanks to its closed and fan-less architecture

Product description

Using a powerful processing platform based on a Common Processor Module (CPM) and Graphic Processor Module (GPM), the MFD-3068 is an open system very well suited for hosting today’s demanding applications.

These applications run on the ARINC 653 display platform and ScioTeq’s MOSArtTM (Modular Open System Architecture) middleware.

Modular by design, the MFD-3068 allows customers to simultaneously host combinations of software applications that can be customer proprietary, ScioTeq proprietary, such as Primary Flight Display (PFD), Navigation Display (ND), Synthetic Vision System, etc., and from 3rd parties. Importantly, these hosted applications can be individually designed to varying Design Assurance Levels (DAL), up to and including DAL A, reducing development and integration costs.

Optically, ScioTeq’s proprietary Active Matrix Liquid Crystal Display and LED backlight technology delivers a visual performance second to none: true 8-bit color depth with high contrast ratio and superior color stability, very wide viewing angles and superior brightness in Day, Night and NVIS modes. And there is even more: the optical quality is guaranteed over the complete temperature range and life-time of the display, thanks to ScioTeq’s proprietary control mechanisms.

Specifikace

PROCESSING

Common processor module (CPM) Freescale QorIQ P3041
Graphic processor module (GPM) Up to 2 times M9 (Mobility Radeon 9000) performance
Integrity of the graphics solution segregated from any knowledge of the hosted applications
RTOS ARINC-653 Real Time Operating System
ScioTeq MOSArtTM open platform Allows development and hosting of customer supplied, 3rd party or ScioTeq applications. Can host multiple applications at different DAL levels simultaneously.

ELECTRO-OPTICAL

Panel type Active matrix LCD (normally black)
Panel active area 10.4" diagonal (6" x 8")
Panel resolution 1024 x 768
Color depth True 8-bit - 16,777,216 colors and 256 grayscales
Viewing angle H: +/-80°
V: +/-80°
Can be tailored to program requirements, such as the addition of specific collimation to reduce canopy reflections, etc.
Backlight LED backlight
Luminance 0.1 up to 275fL (non-NVIS mode)
0.03 up to 2fL (NVIS mode)
Luminance stabilized over the life time and the complete temperature range of the display
Sunlight readability Contrast ratio >14:1 @ 10,000 fC
NVG compatibility MIL-STD-3009 Type I/II, NVIS Class B
Heater Heater for display startup at extremely cold temperatures

INTERFACES

Video inputs / Outputs (1) Inputs: 1 x RGB, 1x NTSC
Outputs: 2x DVI-D, 2xRGB
Digital Interfaces (1) Arinc 429, Arinc 708A, RS-422/485, IEEE-1394B, CAN Bus (Arinc 825), Ethernet, MIL-STD-1553 (optional)
Analog Interfaces (1) Sensors, transducers, potentiometers, thermocouples, synchros, discreets, etc.

CONTROLS

Brightness control ALS sensors, bezel control, or remote
Bezel controls  (1) Available with custom bezels
Touch screen Multi-touch capability through PCAP with built-in mechanisms for certifiable touch interface (optional)

GENERAL SPECIFICATIONS

Power supply 28VDC, MIL-STD-704A
Power consumption 95W @ 200fL (20°C ambient)
Weight 6.77 kg / 14.92 lbs
Cooling Passive cooling (no requirement for forced external cooling) - fan-less design
Built-in testing PBIT / CBIT / IBIT
Software RTCA/DO-178C up to Design Assurance Level (DAL) A
Hardware RTCA/DO-254 up to Design Assurance Level (DAL) A

ENVIRONMENTAL CONDITIONS

Compliance DO-160G; MIL-STD-810G & MIL-STD-461E  (optional)
High temperature +70C operational / +85C short-time / +85C ground survival
Low temperature -45C operational / -55C ground survival
Altitude 55,000 ft
Waterproofness, salt fog, sand & dust Withstands harsh environments - closed and fan-less unit design





Ke stažení

ScioTeq MFD 3068 datasheet.pdf
