RC1

Odolné Box PC pro kolejová vozidla s krytím IP67

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073
PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

  • 3.5" 4:3 TFT LCD touch panel
  • Intel® Atom™ 1.1 GHz or 1.6 GHz
  • Up to 1 GB RAM, 2GB microSD™ card
  • Optional SATA SSD, up to 8 GB Flash Disk
  • 2 Fast Ethernet, 1 USB (master or client)
  • Additional I/O, e.g., CAN bus, IBIS, UARTs
  • PCI Express® Mini card slot for wireless with 2 optional antenna connectors
  • Wide-range PSU with backup (power class S2)
  • -40 to +70(+85)°C operating temperature
  • EN 50155, IP67 compliant
  • e1 certified by the German Federal Motor Transport Authority
  • Windows® XP Embedded (120-day eval version)

Popis

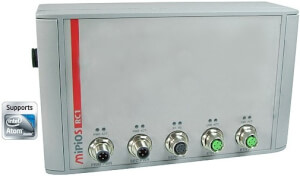

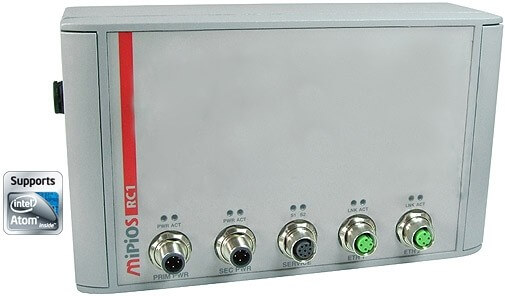

The RC1 is more than just a "box PC": it is a rugged, fanless and maintenance-free control unit for harsh, mobile, mission-critical applications with or without visualization requirements in railway/transportation, avionics, industrial automation and medical engineering. Two standard models are available: One without a display and one with a 3.5" 4:3 262,144 color display (primarily for service purposes) with a resolution of 640x480 and touch functionality to control the unit.

Both standard models are powered by an Intel® Atom™ Z510 running at 1.1 GHz and are equipped with 512 MB RAM and a 2GB microSD™ card (a SATA solid-state drive and Flash memory are optional). All I/O signals are concentrated at the front side. They include 2 Fast Ethernet (on M12 connectors) and a service interface with one USB port (master or client), one RS232, a reset input and one GPIO, all combined on an 8-pin M12 connector. The RC1 offers two slots for additional I/O purposes for which a number of special SA-Adapter™ kits with M12 connectors are available. The FPGA-based concept of the RC1 enables easy implementation of various interfaces (e.g., CAN bus, RS485, IBIS, GPS or binary I/O).

A second power input makes it possible to connect a backup power source (e.g., a battery) that is automatically used in case of power failure on the main power input. As a fully EN50155 compliant power class S2 unit, the RC1 remains functional despite power interruption for up to 10 ms.

The unit's PCI Express® Mini card and SIM card slots can be used to add wireless functionality like Bluetooth, WLAN, WIMAX, GSM/GPRS, UMTS etc. For this case, two optional N-Type connectors can be made available at the unit's front panel.

The RC1 is one of the first members of the MIPIOS® family of extremely rugged IP67 compliant products designed for Ethernet connectivity. The unit is prepared for wall or DIN-rail mounting. Its robust stainless enclosure is protected against violent impacts and the whole unit is compliant with IP67. With a typical power consumption of only 12 W for the total system the design is always realized without fans, using conduction cooling to spread the dissipated heat to the outside of the housing. All electronic components are soldered to withstand shock and vibration and prepared for conformal coating. The standard versions of the RC1 comply with ISO 7637-2:2004 and the EN 50155, class Tx railway standard, i.e., the units are able to operate in a -40 to +70°C (+85°C for 10 minutes) environment. The optional display panel is designed for an operating temperatue of -30 to +70°C with automatic switch-off of the display at excess temperatures

Specifikace

CPU

Intel® Atom™ processor Z510 or Z530

  • Z510: 1.1 GHz processor core frequency, 400 MHz system bus frequency or
  • Z530: 1.6 GHz processor core frequency, 533 MHz system bus frequency

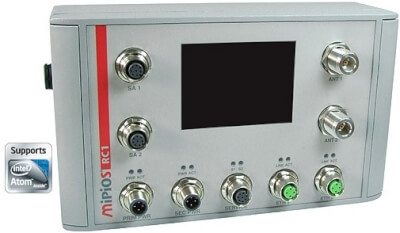

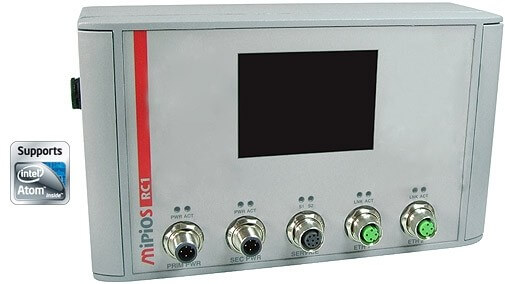

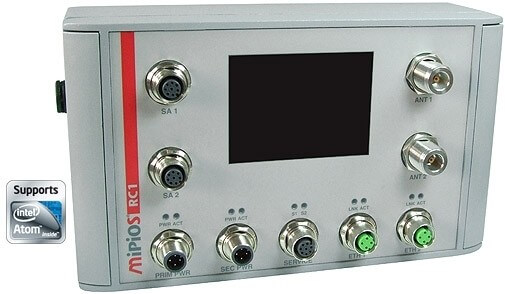

Display (06RC01-01 model)

Screen size: 3.5"

Aspect ratio: 4:3

Resolution: 640 x 480

Luminance (cd/m²): 250 cd/m²

Contrast: 400 typ.

Colors: 262,144

Visible screen area: 72 mm x 52.5 mm

Touch functionality to control the RC1 (HMI)

Monitored and controlled by a temperature sensor (automatic switch-off of the display below -30°C and above +70°C)

Display and touch functionality fully IP67 compliant!

Memory

Up to 1GB DDR2 SDRAM system memory

  • Soldered
  • 400MHz or 533MHz memory bus frequency locked to the FSB frequency

2GB microSD™ card

I/O

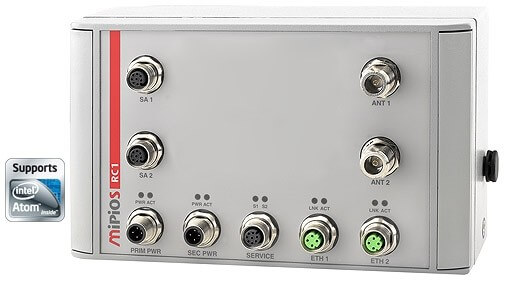

All I/O available at front of housing

Service interface

  • 1 USB 2.0 master or client (configurable via BIOS setting)
  • UHCI implementation
  • Data rates up to 480Mbits/s
  • 1 RS232 or RS485 (half-duplex), redirection for BIOS settings and terminal function
  • 1 reset input (hardware reset for the Intel® Atom™ CPU)
  • All accessible via the same 8-pin M12 connector (female)

Ethernet

  • Two 10/100Base-T Ethernet channels
  • Accessible via 4-pin M12 connectors (female)

Various I/O (optional)

  • Up to two additional I/O interfaces (RS232, RS422, RS485, IBIS, CAN bus, GPS or binary I/O) via various M12 connectors, realized through special SA-Adapter™ kits

Audio

  • 1 piezo speaker

Power

  • Power input via 4-pin M12 connector (male)
  • Backup power input via second 4-pin M12 connector (male)

Board Management Control

Supervision of internal supply voltages

Supervision of display temperature

Control of power sequencing and reset behavior of the Intel® Atom™ CPU

Emergency shutdown in case of failure

Watchdog functionality for CPU with clock generator

Accessible via SMBus

Electrical Specifications

Isolation voltage:

  • 1,500 VDC (Ethernet interface, power supply)
  • 500 VDC (all other I/O)

Buffered RTC

  • Gold cap for more than 12 h

Power consumption:

  • 12 W typ. (without PCI Express® Mini card)

Supply voltage:

  • 24 VDC (9 to 36 V) according to EN 50155 (main and backup)
  • Power class S2 (functional despite power interruption up to 10ms)
  • Automatic failover to secondary input in case of power failure on the primary input
  • Reverse polarity protection
  • Overcurrent protection by fuse

Mechanical Specifications

Dimensions: 220 mm x 130 mm x 70 mm (without connectors)

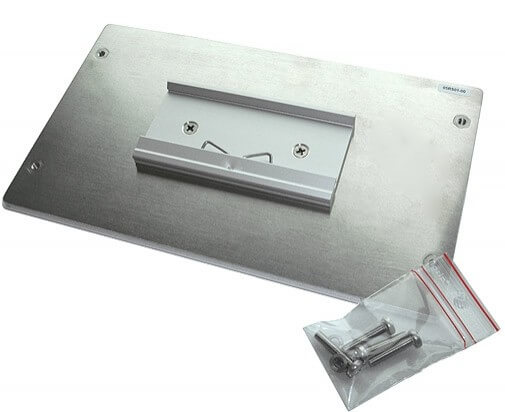

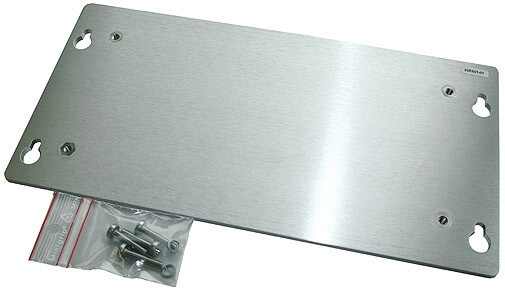

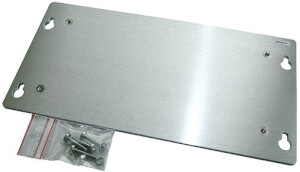

Prepared for wall or DIN-rail mounting (EN 50022, BS 5584)

Weight: 1.8 kg

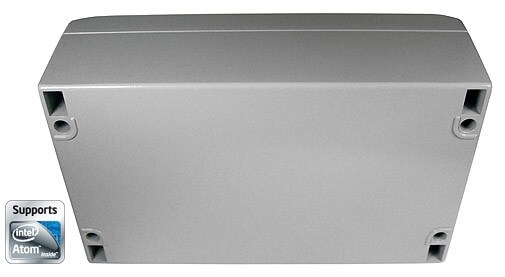

Aluminum enclosure

IP67 compliant

Conformal coating on request

Environmental Specifications

Temperature range (operation):

  • -40°C to +70°C, with up to +85°C for 10 minutes according to class Tx (EN 50155)
  • -10°C to +70°C for the display panel (with automatic switch-off of the display at excess temperatures)
  • Conductive cooling
  • Fanless operation

Temperature range (storage): -40..+85°C

Relative humidity (operation): max. 95% non-condensing

Relative humidity (storage): max. 95% non-condensing

Altitude: -300 m to + 3,000 m

Shock: according to EN 50155 (10.2.11)

Vibration: according to EN 50155 (10.2.11)

MTBF

06RC01-00: MTBF 103,413 h @ 40°C according to IEC/TR 62380 (RDF 2000)

06RC01-01: MTBF 20,981 h @ 40°C according to IEC/TR 62380 (RDF 2000)

EMC

Conforming to EN 50155, EN 50121-3-2/EN 61000-4-5, ISO 7637-2:2004

e1 certified by the German Federal Motor Transport Authority

Software Support

Windows® XP Embedded

  • 06RC01-01: Windows® XP Embedded image included (120-day trial version for evaluation purposes only)

Linux

  • Deliverable with eval Linux pre-installed

VxWorks® (on request)

QNX® (on request)

Blokové schéma
