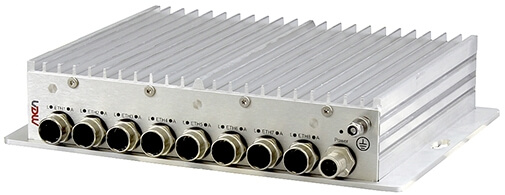

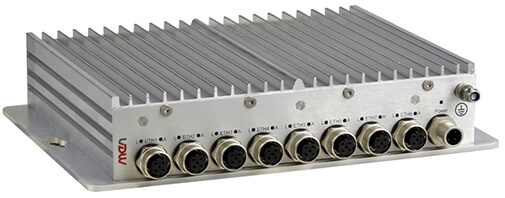

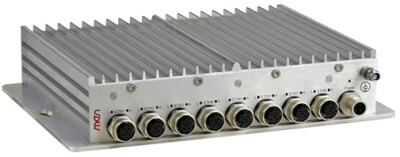

NM30 Managed 8-Port Rugged Ethernet Switch

IP40 Industrial Stand-Alone Device The NM30 family is a range of 8-port fanless and maintenance-free managed Ethernet switches, developed specifically for rough environmental conditions in rolling stock and automotive applications.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

Main Features

  • Managed 8-port rugged Ethernet switch
  • Fast or Gb BASE-T Ethernet via M12 connectors on the front panel
  • PoE+ Power Sourcing Equipment (PSE ), up to 60 W output power
  • Special switch protocols including Quality of Service (QoS)
  • Up to 4096 VLANs
  • Redundancy and flow control
  • Rugged aluminium enclosure with IP40 protection
  • Fanless and maintenance-free design
  • Ultra wide range power supply input (14.4 to 154 VDC) with interruption class S2
  • -40°C to +70 (+85)°C operating temperature
  • Compliant to EN 50155 (railways)
  • Compliant to ISO 7637-2 (E-mark for automotive)


Specifikace

Supported Port Types
The following configurations are available:
  • 8x 10/100BASE-T managed switch (Model: 09NM30-00)
  • 8x 10/100BASE-T managed switch, 8x PoE + PSE with max. 60 W output power (Model: 09NM30-01)
  • 8x 10/100/1000BASE-T managed switch (Model: 09NM30-02)
  • 8x 10/100/1000BASE-T managed switch, 8x PoE + PSE with max. 60 W output power (Model: 09NM30-03)
Protocols and Functionality
  • General Network Support
    • IPv4
    • IPv6 Ready
    • IPv6 Ready Phase 2
  • Host Configuration Protocols
    • DHCP Server / Client
    • DHCP Option 82
    • DHCP Snooping
    • DHCP ARP Inspection
  • DNS
    • DNS Client (RFC 2136)
    • DNS Proxy (RFC 5625)
Ports and Port Control
  • Energy Efficient Ethernet (IEEE 802.3az)
  • ETH Signal Equalization and Power Control
  • Port state (admin), speed, duplex mode and flow control
  • Port frame size (Jumbo Frames: 9216 Bytes max.)
  • Port status (link monitoring) and statistics (MIB counters)
  • Port VeriPHY (cable diagnostics), ActiPHY and
  • PerfectReach
  • Inband management (VRAP)
Switch Management and Monitoring
  • OAM
    • Link OAM: IEEE 802.3ah (a.k.a. EFM)
    • CFM: IEEE 802.1ag
    • ITU-T Y.1731 Down-MEP, ITU-T Y.1731 Up-MEP, ITU-T Y.1731 MIP
    • MEF E-LMI Configuration Management
    • SMAC/DMAC Swap
    • OAM Performance Monitoring MEF35 Phase 1
  • SNMP Management v1, v2c, v3 (RFC 1212, 1901-1908, 3411-3418)
  • SNMP v1 Traps (RFC 1157) with multiple destinations
  • LLDP (IEEE 802.10AB)
  • TIA 1057 LLDP-MED extensions
  • CDP (Cisco Discovery Protocol)
  • RMON Group 1, 2, 3 and 9 (RFC 2819)
  • Syslog (RFC 5424)
  • sFlow (RFC 3176)
  • Port and Flow Mirroring
  • Fallback Firmware
Configuration Management
  • TFTP (RFC 1350)
  • Fallback Configuration
  • Configurable by Web / CLI / Telnet /SSL / Console
Redundancy and Flow Control
  • Static Link Aggregation
  • IEEE 802.3ad Link Aggregation Protocol
  • IEEE 802.3X Back Pressure Flow Control
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid STP (RSTP)
  • IEEE 802.1s Multiple STP (MSTP)
  • BDPU Guard / Restrict Role
  • ITU-T:G.8032 Ring Protection
  • ITU-T:G.8031 Linear Protection
  • IEEE 802.1ag / ITU-T Y.1731 Connectivity Fault Protection
  • Loop Protection
Security
  • Network Access Server (NAS):
    • Port-based IEEE 802.1x
    • Single and multiple IEEE 802.1x
    • MAC based authentication
    • VLAN and QOS assignment
    • Guest VLAN
  • RADIUS accounting (RFC 2866ff)
  • MAC address limit and MAC freeze
  • IP MAC Binding / Binfind dynamic to static
  • TACACS+ Accounting
  • Web and CLI Authentication
  • IP Source guard
  • Authorization (15 user levels)
  • DHCP Snooping (RFC 2132)
  • Dynamic ARP Inspection
VLAN
  • VLAN Tagging and Trunking (IEEE 802.1Q)
  • Supported VLAN Types:
    • Private Static VLAN (RFC 5517)
    • MAC, Protocol, IP-Subnet and Port based VLAN (IEEE 802.1Q)
    • VOICE VLAN (IEEE 802.1Q, IEEE 802.1P)
  • Dynamic VLANs (GVRP)
  • Multicast VLAN Registration (IEE 802.1ak MRP and MVRP)
Multicast
  • IPv4 Internet Group Management protocol (IGMP) v1, v2, v3
  • Maximum number of IGMP Groups:
    • 8000 for Layer2
    • 8000 for IP4/IP6
  • IPv6 Multicast Listener Protocol (MLD) v1, v2
  • Multicast VLAN registration protocol (MVR)
  • MRP/GMRP Multicast Registration Protocol (IEEE 802.1ak)
QoS
  • Active Priority Queues per Port: 8
  • Class of Service (IEEE 802.1p)
  • Port and queue egress shaper
  • Storm control (for Unicast, Broadcast, Multicast, unknown)
  • Port and Queue Egress shaper
  • Scheduler Mode (weighted and fair scheduling)
  • Port Default/User Priority and Input Priority Mapping
  • DCSP remarking (RFC 2474)
  • QoS control list (QCL mode))
  • Random Early Detection (RED, RFC 2309)
  • Policers (port, service, queue and global/VCAP - ACL)
  • DiffServ (RFC 2474) and Tag remarking
Synchronization
  • NTPv4 Client (RFC 5005)
  • IEEE 1588v2 PTP with one-step and two-step clock
  • IEEE 1588v2 PTP with redundant master clocks
  • IEEE 1588v2 boundary clock
  • IEEE 1588v2 unicast and multicast support
Supported Industrial Ethernet Protocols
  • EtherNet/IP
  • Modbus/TCP
  • Profinet (Essential: IEEE 802.1Q)
Power Over Ethernet Features
Power over Ethernet functions on all ports (Models: 09NM30-01 and 09NM30-03)
  • PSE (Power Sourcing Equipment) function
  • Up to 60 W total output power
  • PoE starts in auto mode
  • Run time PoE+ behaviour programmable via service interface
Service Interface
  • Console interface
    • USB 2.0 Series B rear console interface for local system management
  • Web interface
    • Web based control and management interface over any Ethernet port

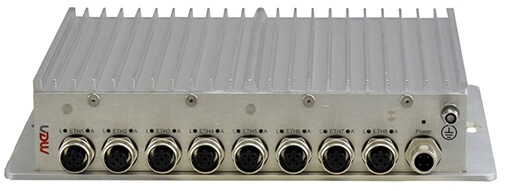

Front Interfaces

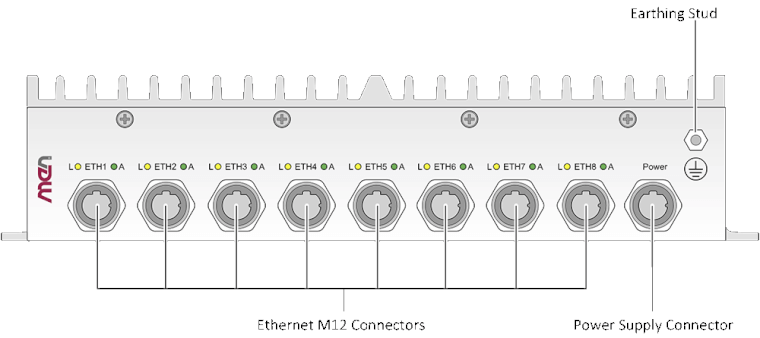

  • Ethernet
    • Eight M12 connectors, 100BASE-T (100 Mbit/s) (Models: 09NM30-00 and 09NM30-01), or
    • Eight M12 connectors, 1000BASE-T (1 Gbit/s) (Models: 09NM30-02 and 09NM30-03)
  • Ethernet LED
  • Power supply
    • One M12 connector for ultra wide range power
  • Power status LED
    • Indicates power supply stability or range validity
Rear Interfaces
USB
  • One Series A connector, USB 2.0 (480 Mbit/s)
Electrical Specifications
  • Supply voltage
    • 14.4 VDC to 154 VDC
    • Nominal voltages 24, 36, 48, 72, 96 and 110V VDC, according to EN50155
    • Power interruption class S2 (10 ms)
    • 18 VDC to 32 VDC
    • Code H, Starting Profile Level II (50ms @ min 8V), according to ISO 16750
  • Power consumption
    • +10 W Max. (Models: 09NM30-00 and 09NM30-02)
    • +85 W Max. with 60W PoE Max. (Models: 09NM30-01 and 09NM30-03)
Mechanical Specifications
  • Dimensions: Height 44.1 mm x Width 220 mm x Length 164 mm
  • Weight: Less than 1.5 kg (depending on configuration)
Environmental Specifications
  • IP protection
    • IP40 (except front plate)
    • Front plate: IP30
    • Up to IP65 (Option)
  • Temperature range (operation)
    • -40°C to 70°C (screened), with up to 85°C for 10 minutes according to class Tx (EN 50155)
    • Fanless operation
  • Temperature range (storage): -40°C to +85°C
