MM1 ESMini COM Intel Atom

MM1 - ESMini™ COM with Intel® Atom™ - Intel® Atom™ Z530 or Z510, up to 1.6 GHz - Up to 1 GB DDR2 SDRAM - 1 PCI Express® - Up to 2 Fast Ethernet interfaces - 8 USB 2.0 (1 client) - 2 UARTs - Up to 2 CAN bus interfaces - SDVO, LVDS - Intel® HD Audio

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

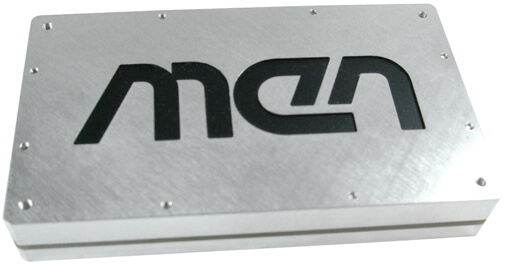

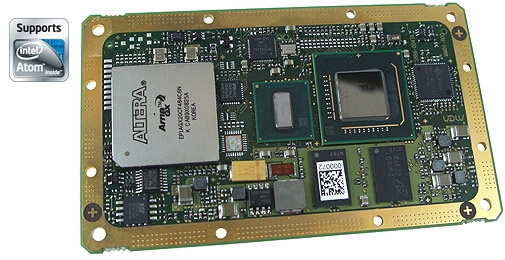

The MM1 is an ultra-small Computer-On-Module of the rugged ESMini™ family. Together with an application-specific carrier board it forms a semi-custom solution for industrial, harsh, mobile and mission-critical environments. The MM1 is controlled by the Intel® Atom™ processor, a first generation IA-32 core based on 45nm process technology. Due to the new power architecture of the Intel® Atom™ CPU, the MM1 has a total power consumption of max. 5 to 10 W, while having a clock frequency of up to 1.6 GHz. The MM1 accommodates up to 1 GB of directly soldered main memory and supports other memory like USB Flash on the carrier board. The MM1 offers a multitude of I/O: besides modern serial I/O like one PCI Express® x1 link, LVDS, SDVO, high-definition audio, SATA and USB, it also provides legacy I/O (2 CAN, 2 COM, 2 Fast Ethernet, 2 I2C) and up to 120 FPGA signals. The MM1 is completed by a board management controller for temperature and power supervision. It comes with a Phoenix® Award BIOS configurable for the final application. The MM1 is screened for operation in a -40°C to +85°C temperature range (Tcase)(-25°C to +85°C for board versions with 1 GB DRAM). As all ESMini™ modules it is embedded in a covered frame. This ensures EMC protection and allows efficient conductive cooling. Air cooling is also possible by applying a heat sink on top of the cover. Where operation temperatures are moderate, the module may even do without the frame and cover, with a suitable low-power processor and airflow. ESMini™ modules are firmly screwed to a carrier board and come with rugged industry-proven connectors supporting high frequency and differential signals. Only soldered components are used to withstand shock and vibration, and the design is optimized for conformal coating. The MM1 supports a 95x55mm form factor. For evaluation and development purposes a microATX carrier board is available.
