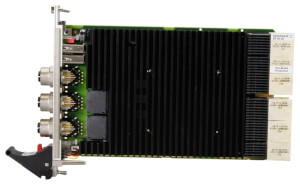

G52A - QorIQ Enhanced Network CPU Board

G52A je vysoce výkonná multijádrová procesorová karta založená na NXP (nástupce Freescale) QorIQ T4x serii. G52A byla navržena pro vysokou propustnost dat skrze rozhraní PCIe 3.0, PCIe 2.0 a Gigabitový Ethernet prostřednictvím backplanu a zároveň poskytu

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • NXP QorIQ, up to 12 cores
  • Up to 12 GB DDR3 DRAM soldered, ECC
  • Standard front I/O: 2 10 Gb Ethernet, 1 Gb Ethernet, 1 USB 2.0 host, 1 USB configuration port (RS232)
  • Standard rear I/O: 14 PCIe lanes, 1 USB 2.0, 2 SATA, 3 Gb Ethernet
  • 4 HP system master and peripheral slot
  • PICMG CPCI-S.0 CompactPCI Serial
  • microSD card slot
  • CPU TDP from 32 W to 61 W
  • Board Management Controller
  • Watchdog

Blokové schéma

Specifikace

CPU
The following CPU types are available:
  • NXP QorIQ T4240, twelve cores, 1.5 to 1.8 GHz
  • NXP QorIQ T4160, eight cores, 1.5 to 1.8 GHz, (on request)
  • NXP QorIQ T4080, four cores, 1.5 to 1.667 GHz (on request)
Memory
  • System Memory
    • Soldered DDR3, ECC support
    • Up to 3 channels
    • Up to 12 GB
  • Boot Flash
    • 16 MB
Mass Storage
The following mass storage device can be assembled:
  • microSD card (up to 32 GB)
Front Interfaces
  • USB
    • One Series A connector, USB 2.0
    • One RS232 configuration port implemented as a USB 2.0 device interface
  • Ethernet
    • Two 8-pin M12 connectors, X-coded, 10GBASE-T, or
    • Two RJ45 connectors, 10GBASE-T (on request)
    • One 8-pin M12 connector, X-coded, 1000BASE-T, or
    • One RJ45 connector, 1000BASE-T (on request)
    • One link and activity LED per Ethernet channel
  • Front-panel LED for board status
  • Hot-plug LED
  • Reset button
Rear Interfaces
  • SATA
    • Two channels, SATA Revision 2.x
  • USB
    • One channel, USB 2.0
  • Ethernet
    • Three channels, 1000BASE-T
  • PCI Express
    • Two x4 links, PCIe 2.x
    • One x2 link, PCIe 2.x
    • One x4 link, PCIe 3.x
Supervision and Control
  • Board controller
  • Watchdog timer
  • Temperature measurement
  • Real-time clock with supercapacitor or battery backup
    • Data retention of supercapacitor: tbd
Backplane Standard
  • Compliance with CompactPCI Serial PICMG CPCI-S.0 Specification
  • System or peripheral slot
Electrical Specifications
  • Supply voltages
    • +12V (9.5..15.5V)
  • Power consumption
    • The following values are valid for product model 02G052A00, which uses a T4240 processor.
    • +12V: 4 A nominal, 8 A maximum
Mechanical Specifications
  • Dimensions
    • 3U, 4 HP
  • Weight: approx. 266 g (model 02G052A00)
Environmental Specifications
  • Temperature range (operation)
    • EN 50155 class T1, T2, T3 or TX
    • Airflow 2.5 m/s
    • Depends on system configuration (CPU, hard disk, heat sink...)
  • Temperature range (storage): -40°C to +85°C
  • Cooling concept
    • Air-cooled, or
    • Conduction-cooled in MEN CCA frame
  • Humidity: EN 60068-2-30, EN 50155
  • Altitude: -300 m to +3000 m
  • Shock: EN 50155 cat 1 class b
  • Vibration: EN 50155 cat 1 class b
Reliability
MTBF: tbd h @ 40°C according to IEC/TR 62380 (RDF2000) (model tbd)
Safety
  • Flammability
    • UL 94V-0
  • Electrical Safety
    • EN 62368-1 (former EN 60950-1)
EMC Conformity
  • EN 55022 class B, EN 50121-3-2 (radiated and conducted emission)
  • EN 55024, EN 50121-3-2 (immunity)
Software Support
  • Linux
BIOS
U-Boot Universal Boot Loader

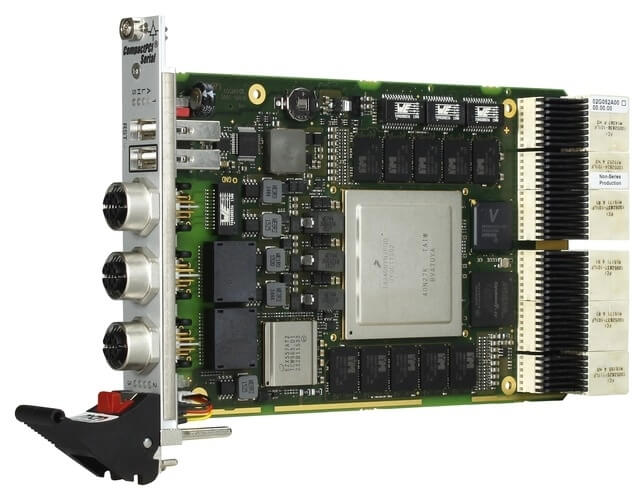

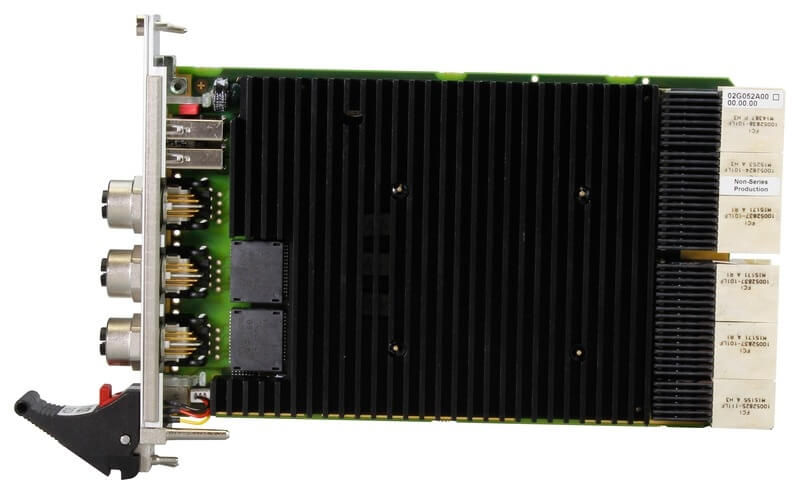

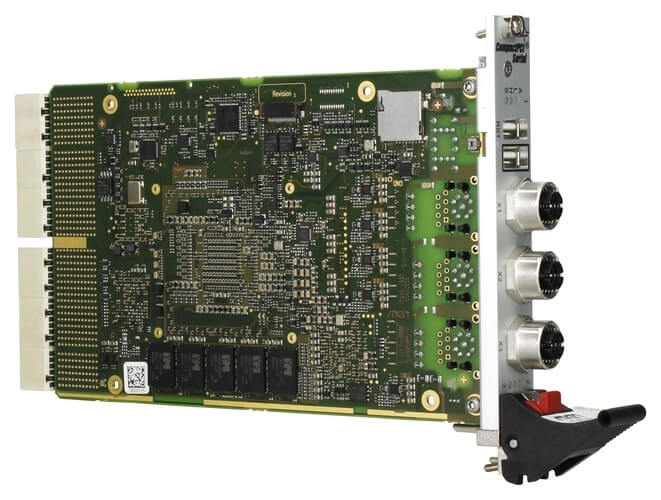

Fotogalerie
