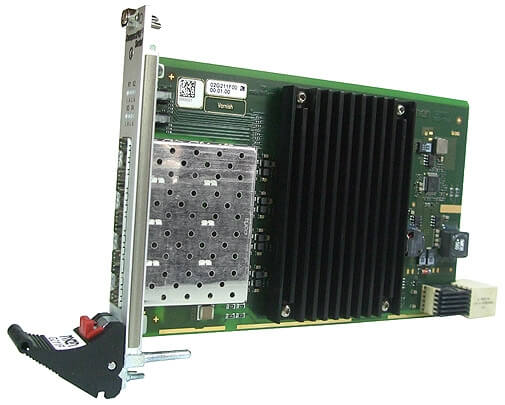

G211F Quad Fiber Optics Interface

The G211F is a rugged 3U CompactPCI® Serial peripheral board. It offers the possibility to implement four optical fiber Ethernet interfaces. The board is equipped with a cage for connection of four SFP transceivers. The cage hosts the optical adapter. The cables are connected to the adapter module. MEN offers an optical transceiver with LC-Duplex connectors as an accessory. All four interfaces are controlled by one Ethernet controller which is connected to the backplane via a x4 PCI Express® link and supports the IEEE 802.3x standard. Each interface supports a data transfer rate of 1000 Mbit/s if all interfaces are used simultaneously. Two LEDs show the link and activity status of every interface. The G211F can be used in combination with a CompactPCI® Serial or CompactPCI® PlusIO CPU board in a CompactPCI® Serial or hybrid system. It is screened for extended operating temperature and prepared for conformal coating for use in harsh and mobile environments.
