F604 3U Side Card FireWire (EOL)

F604 - 3U CompactPCI® Side Card FireWire -4 HP extension for 3U Intel® SBCs F14, F15, F17, F18, F19P -1 IEEE 1394 interface -1 DVI-D Single Link -1 HD Audio (in or out) -1 or 2 RS232 -2.5" SATA hard-disk slot

Základní informace

Produkt se již nevyrábí (EOL) -  pro jeho náhradu nás neváhejte kontaktovat

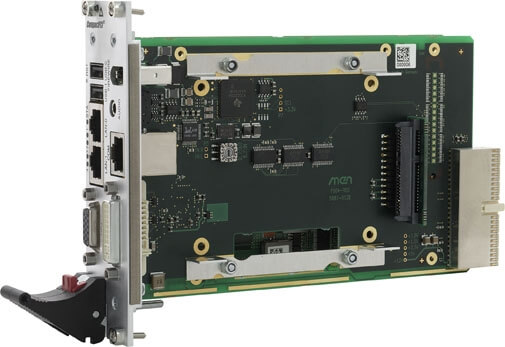

The F604 is a 4HP FireWire and multimedia extension card for 3U Intel® based CompactPCI® single-board computers. It can be used in combination with the F14 and further boards of the Intel® low power family. The IEEE 1394 high-speed serial bus is often used in combination with modern high-end digital camera equipment instead of USB. Thus, the F604 side-card extends the standard features of a powerful multi-core or Pentium® M CPU board by one 400 MBit/s FireWire interface connected via PCI Express® links. It further provides a DVI-D single link port, an HD audio - in or out - port as well as one, optionally two COM interfaces. In addition an onboard 2.5" SATA hard-disk slot is available on the F604. The F604 is directly plugged to the right side of the respective single-board computer. A robust connector makes for high mechanical stability. It is delivered with an 8HP front panel, replacing the 4HP front panel of a 3U single-board computer and thus resulting in a solid one-piece front panel.
