F602 3U CPCI Express Side Card

F602 - 3U CompactPCI® Express Side Card -4 HP extension for 3U Intel® SBCs F14, F15, F17, F18 -4 PCI Express® links x1 to backplane -1 COM via SA-Adapter™ -1 USB 2.0 -1 DVI connection -2.5" SATA hard-disk slot

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

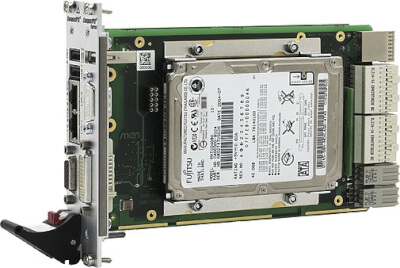

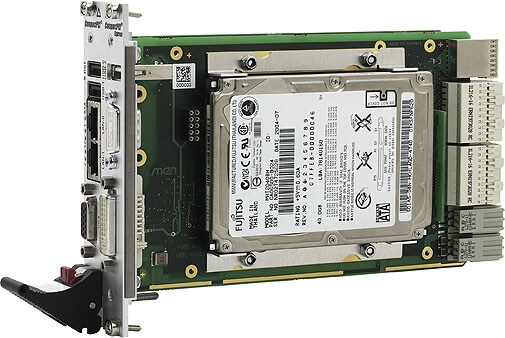

mpactPCI® Express cards to the right. In addition to the CompactPCI® Express functionality the F602 provides one USB 2.0, one COM (RS232, RS422/485, with or without optical isolation via SA-Adapter™) and one DVI port at its front panel. On top of that an onboard 2.5" SATA hard-disk slot is available on the F602. The F602 is directly plugged to the right side of the respective single-board computer. A robust connector makes for high mechanical stability. It is delivered with an 8HP front panel, replacing the 4HP front panel of a 3U single-board computer and thus resulting in a solid one-piece front panel.
