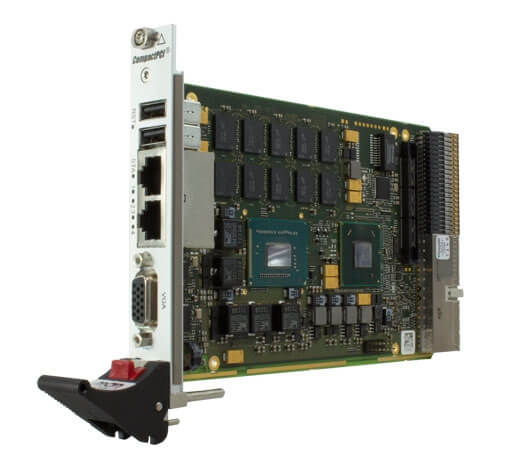

F22P - Intel Core i7 3rd gen CPU Board

3U CompactPCI PlusIO The F22P 4HP/3U CPU board is compatible to the CompactPCI Plus IO standard and equipped with the 3rd generation Intel Core i7 3615QE processor and the QM77 platform controller hub.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace




Main Features

  • Intel Core i7, 3rd generation
  • Quad-core 64-bit processor
  • For CompactPCI 2.0 systems or CompactPCI PlusIO 2.30 hybrid systems (2.0 and CPCI-S.0)
  • Up to 16 GB DDR3 DRAM soldered, ECC
  • microSD card and mSATA slots
  • Front I/O: VGA, 2 Gbit Ethernet, 2 USB
  • Rear I/O: 4 PCIe, 4 USB, 4 SATA, 1 Gbit Ethernet
  • Other I/O (onboard, side card): SATA, SDVO, HDMI/Display Port, HD audio, USB, UART etc.
  • 2.3 to 3.3 GHz Turbo Boost, Hyper-Threading, Active Management Technology
  • Open CL 1.1 support

Blokové schéma

Specifikace

CPU
The following CPU types are available:
  • Intel Celeron 1047UE, Dual Core, 1.4 GHz, 2 MB Cache, 17 W
  • Intel Celeron 927UE, Single Core, 1.5 GHz, 1 MB Cache, 17 W (without PCI Express on side card)
  • Intel Celeron 1020E, Dual Core, 2.2 GHz, 2 MB Cache, 35 W
  • Intel Core i3-3120ME, Dual Core, 2.4 GHz, 3 MB Cache, 35 W
  • Intel Core i3-3217UE, Dual Core, 1.6 GHz, 3 MB Cache, 17 W
  • Intel Core i5-3610ME, Dual Core, 2.7 GHz, 3 MB Cache, 35 W
  • Intel Core i7-3517UE, Dual Core, 1.7 GHz, 4 MB Cache, 17 W
  • Intel Core i7-3555LE, Dual Core, 2.5 GHz, 4 MB Cache, 25 W
  • Intel Core i7-3612QE, Quad Core, 2.1 GHz, 6 MB Cache, 35 W
  • Intel Core i7-3615QE, Quad Core, 2.3 GHz, 6 MB Cache, 45 W
Chipset
QM77 Platform Controller Hub (PCH)
Memory
  • System Memory
    • Soldered DDR3, ECC support
    • 2 GB, 4 GB, 8 GB, or 16 GB
  • Boot Flash
    • 64 Mbits
Mass Storage
The following mass storage devices can be assembled:
  • microSD card
  • mSATA disk
Graphics
  • Integrated in QM77 chipset
  • 650 MHz graphics base frequency
  • 1.2 GHz graphics maximum dynamic frequency
  • Simultaneous connection of two monitors
Front Interfaces
  • Video
    • One VGA connector
    • Additional interfaces are available via a side card
  • USB
    • Two Series A connectors, USB 2.0 (480 Mbit/s)
  • Ethernet
    • Two RJ45 connectors, 1000BASE-T (1 Gbit/s), or
    • One RJ45 connector, 1000BASE-T (1 Gbit/s), or
    • One 9-pin D-Sub connector, two 100BASE-T (100 Mbit/s), or
    • One 9-pin D-Sub connector, one 100BASE-T (100 Mbit/s)
    • One front channel can optionally be led to the backplane
    • Two link and activity LEDs per channel
  • Front-panel LED for board status
  • Reset button
Rear Interfaces
  • Compatible with PICMG 2.30 CompactPCI PlusIO
    • 1PCI33/4PCIE5/2SATA3/2SATA6/4USB2/1ETH1G, or
    • 1PCI33/4PCIE5/2SATA3/2SATA6/4USB2/2ETH1G
  • SATA
    • Two channels, SATA Revision 3.x (6 Gbit/s), RAID level 0/1/5/10 support
    • Two channels, SATA Revision 2.x (3 Gbit/s), RAID level 0/1/5/10 support
  • USB
    • Four channels, USB 2.0 (480 Mbit/s)
  • Ethernet
    • One channel, 1000BASE-T (1 Gbit/s), or
    • Two channels, 1000BASE-T (1 Gbit/s)
    • One front channel can optionally be led to the backplane
  • PCI Express
    • Four x1 links (500 MB/s per link), PCIe 2.x (5 Gbit/s per lane)
Onboard Interfaces
  • An onboard connector allows a side card to be plugged onto the CPU board to add front panel connections or mass storage devices. A range of standard side cards is available to implement different functions.
  • DisplayPort/HDMI
    • One channel
  • DisplayPort/HDMI/SDVO
    • One channel
  • HD Audio
    • One channel
  • SATA
    • One channel, SATA Revision 2.x (3 Gbit/s), RAID level 0/1/5/10 support
  • USB
    • Four channels, USB 2.0 (480 Mbit/s)
  • PCI Express
    • Three x1 links (500 MB/s per link), PCIe 2.x (5 Gbit/s per lane)
Supervision and Control
  • Board controller
  • Watchdog timer
  • Temperature measurement
  • Real-time clock with supercapacitor or battery backup
    • Data retention of supercapacitor
  • Intel Active Management Technology
Backplane Standard
CompactPCI Core Specification PICMG 2.0 R3.0
  • System slot
  • 32-bit/33-MHz CompactPCI bus
  • V(I/O): +3.3 V (+5 V tolerant)
  • The board can be supplied with +5V only, all other voltages are generated on the board. The backplane connectors are used for power supply only.
Electrical Specifications
  • Supply voltages
    • +5V (-3%/+5%)
    • +3.3V (-3%/+5%)
    • +12V (-10%/+10%)
  • Power consumption
    • The following values are valid for product model 02F022P00, which uses an i7-2715QE processor.
    • +5V: 9.6 A typ., 14.4 A max.
    • +3.3V: 1.8 A (3 Gb Ethernet), 1.4 A (2 Gb Ethernet), 1 A (1 Gb Ethernet)
    • +12V: approx. 10 mA
Mechanical Specifications
  • Dimensions: 3U, 4 HP
  • Weight: 304 g (model 02F022P00)
Environmental Specifications
  • Temperature range (operation)
    • -40°C to +85°C (model 02F022P00)
    • Airflow 1.5 m/s
    • Depends on system configuration (CPU, hard disk, heat sink...)
  • Temperature range (storage): -40°C to +85°C
  • Cooling concept
    • Air-cooled, or

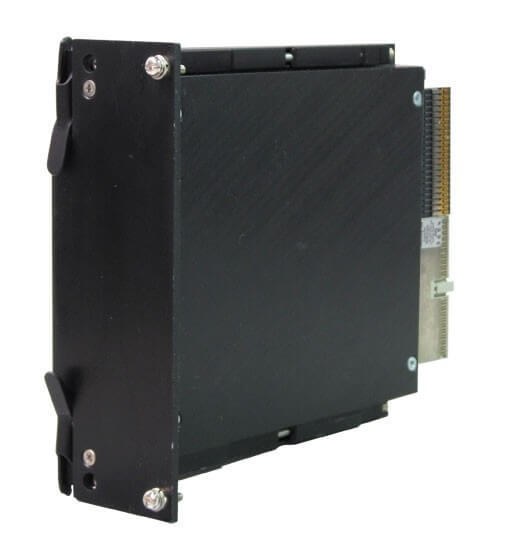

    • Conduction-cooled in MEN CCA frame
  • Relative humidity (operation): max. 95% non-condensing
  • Relative humidity (storage): max. 95% non-condensing
  • Altitude: -300 m to +2000 m
  • Shock: 50 m/s², 30 ms
  • Vibration (Function): 1 m/s², 5 Hz to 150 Hz
  • Vibration (Lifetime): 7.9 m/s², 5 Hz to 150 Hz
Reliability
MTBF: 549 414 h @ 40°C according to IEC/TR 62380 (RDF2000) (model 02F022P00)
Safety
Flammability
  • UL 94V-0
EMC Conformity
  • EN 55022 (radio disturbance)
  • IEC 61000-4-3 (electromagnetic field immunity)
  • IEC 61000-4-4 (burst)
  • IEC 61000-4-6 (conducted disturbances)
Software Support
  • Note that 64-bit hardware technology can be used in an optimal way with 64-bit operating system support
  • Windows
  • Linux
  • VxWorks (on request)
  • QNX (on request)
  • Intel Virtualization Technology, allows a platform to run multiple operating systems and applications in independent partitions; one computer system can function as multiple "virtual" systems
  • For more information on supported operating system versions and drivers see Software.
BIOS
InsydeH2O UEFI Framework

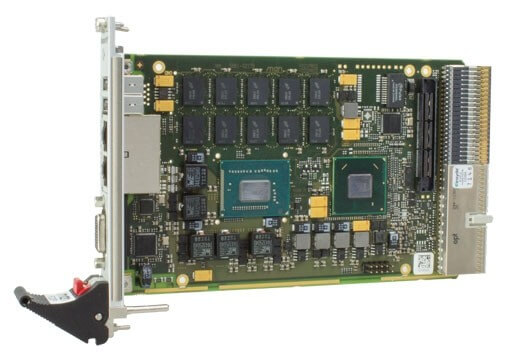

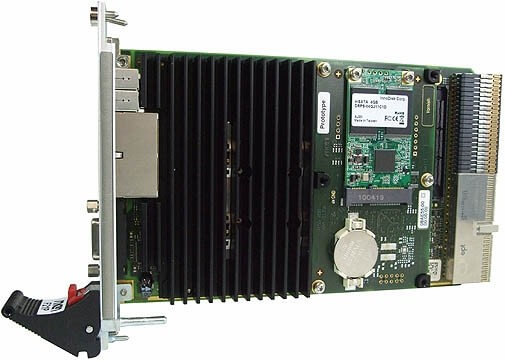

Fotogalerie
