F217 3U Memory Card Carrier
F217 - 3U CompactPCI® Memory Card Carrier - 4 HP 32-bit/33-MHz CompactPCI® - USB Flash Media Controller - Multi card reader: MS, SD, MMC - CompactFlash® socket - Hot-plug at front - -40 to +85°C screened - EN 50155 compliant

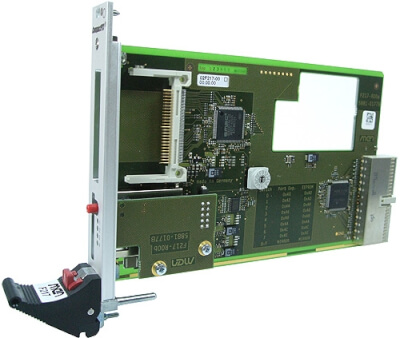

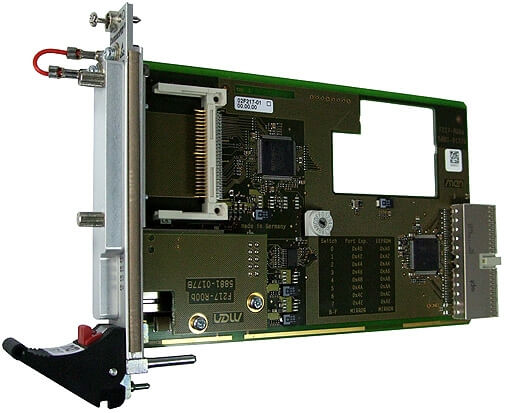

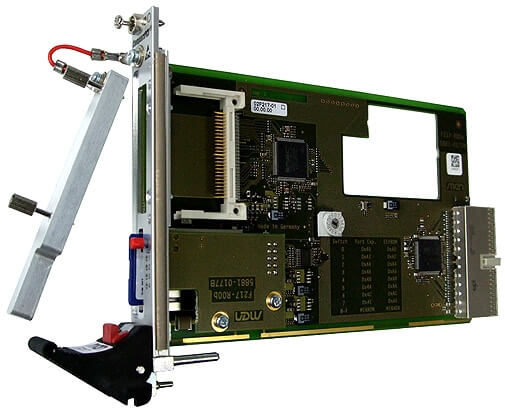

The F217 is a 3U 4HP CompactPCI® board which offers a multitude of memory configurations. It is equipped with a CompactFlash® socket and a multi card reader which supports MS, SD and MMC plus cards. The memory cards are accessible at the front and can be inserted and removed during operation (hot plug). They can optionally be protected by an EMC-proof cover which also secures the cards mechanically, so that they cannot fall out. This protection makes the boards especially suited for harsh environments. A button for hot-extraction request and four status LEDs are also provided at the front panel. The F217 is screened for operation in the extended temperature range of -40 to +85°C.
