F212 3U PCIe MiniCard Carrier (WLAN/UMTS/GPS/GSM/HSDPA)

F212 - 3U CompactPCI® PCIe® MiniCard Carrier (WLAN/UMTS/GPS/GSM/HSDPA) - 4 HP 32-bit/33-MHz CompactPCI® - Up to 2 PCI Express® MiniCards - Optional 2 Express Cards 34 or 54 - For cards with internal USB interface - For HF applications (WLAN, UMTS, GPS,

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

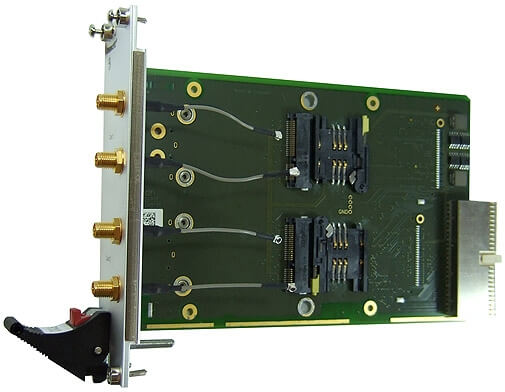

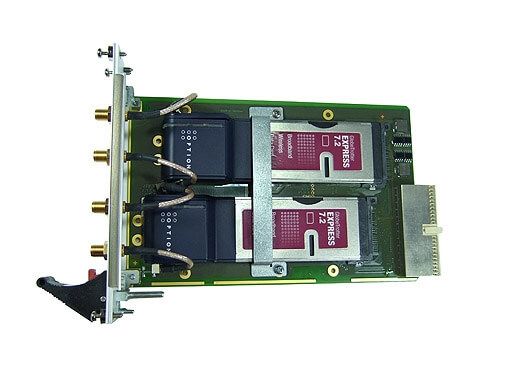

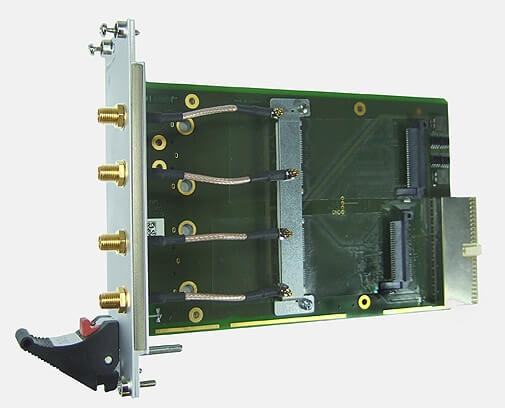

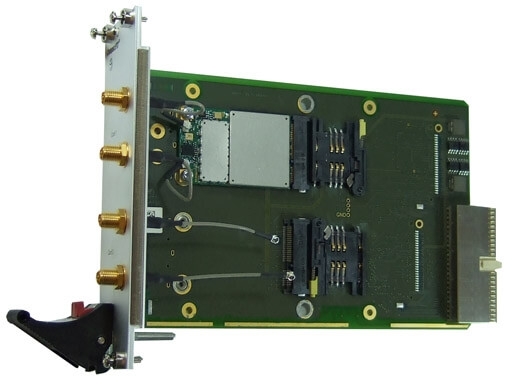

The F212 is a rugged single Eurocard CompactPCI® carrier board supporting the PCI Express® MiniCard standard or, as an option, the ExpressCard® standard. ExpressCard® is the successor of the CardBus standard and offers different construction sizes as well as connection via PCI Express® or USB 2.0. The standard version of the F212 offers two PCI Express® MiniCard slots with USB connection. It allows to use all types of cards for HF applications, for example GPS, WLAN, UMTS, GSM, or HSDPA. Each card is connected to two robust redundant external SMA antenna connectors at the front panel of the F212. Using these standard cards that give access to the whole world of common notebook PC expansions is a fast and easy way to extend the functionality of a CompactPCI® system as well. The F212 is designed for -40 to +85°C operation temperature using qualified components and prepared for conformal coating in order to be used also in harsh and mobile environments. The final environmental qualification depends on the respective cards used on the carrier.
