F209L 3U WLAN Interface

F209L - 3U CompactPCI® WLAN Interface - 4 HP 32-bit/33-MHz CompactPCI® - IEEE 802.11b - Outdoor range up to 600 m - Up to 11 Mbits/s per channel - Output power 20 dBm - Frequency band 2.4 GHz (DSSS) - 40-bit or 128-bit WEP encryption - 2 Reverse SMA ant

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

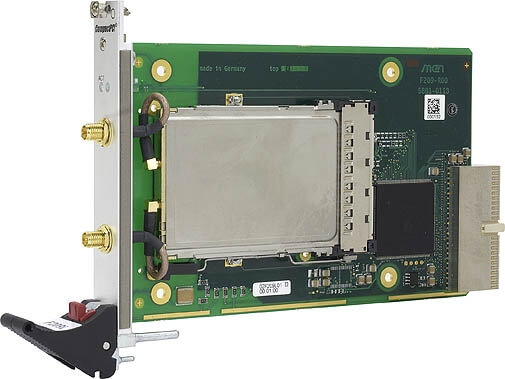

The F209L is a rugged single Eurocard CompactPCI® WLAN interface based on a PCMCIA card and needing only one slot on the CompactPCI® bus. It features access safety and offers two rugged antenna connectors at the front panel for the use of external antennas with a radius of up to 600 meters. The WLAN IEEE 802.11b standard translates into a data rate of up to 11 Mbits/s per channel, an output power of 20 dBm and a 40-bit or 128-bit WEP encryption. The frequency band width is 2.4 GHz with Direct Sequence Spread Spectrum (DSSS). The F209L supports auto fall-back. The WLAN interface is a high-power, high-sensitivity solution that maintains communication in problematic environments. The F209L is screened for -40 to +85°C operation temperature and prepared for conformal coating in order to be used also in harsh and mobile environments.
