F207 3U PCI-104 Carrier Board
F207 - 3U CompactPCI® PCI-104 Carrier Board - 1 PCI-104 slot - For stacking of up to 4 PCI-104 modules - 8 HP CompactPCI® with one PCI-104 module - PCI-to-PCI bridge - -40 to +85°C with qualified components

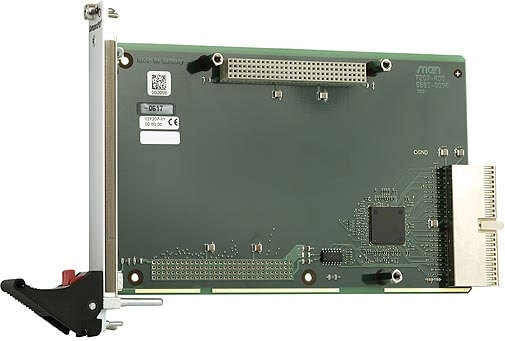

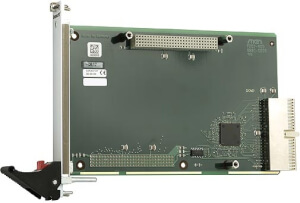

The F207 is a 3U CompactPCI® bus card which provides a PCI-104 interface supporting up to four PCI-104 extension boards. An on-board PCI-to-PCI bridge provides a 32-bit PCI interface at the PCI-104 connector and a 32-bit/33-MHz interface to the CompactPCI® bus. V(I/O) voltage is 3.3V on the local bus (5V on request) and 3.3V or 5V on CompactPCI®. Two different versions of the F207 offer two different connector positions where a PCI-104 module can be placed. The standard version supports the typical stacking method of PCI-104 devices and needs more than one slot of space in a CompactPCI® system. Another version allows face-to-face assembly. The F207 is fully compliant with railway standard EN 50155. For example, all components are specified for an operation temperature of -40 to +85°C.
