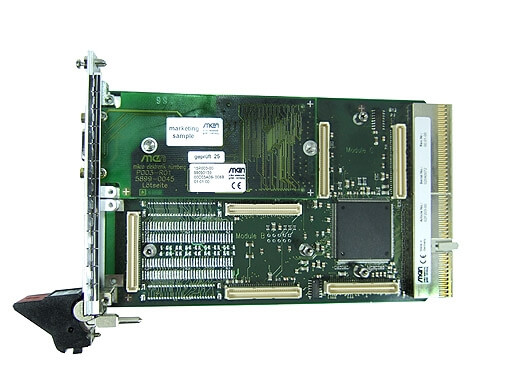

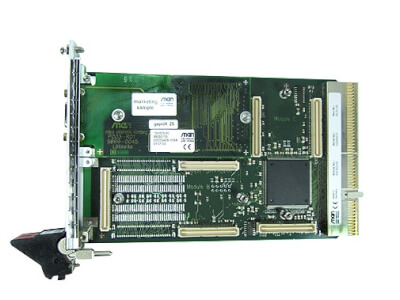

F203 3U PC-MIP Carrier Board

The F203 is a 3U PC-MIP® carrier board for universal I/O on the CompactPCI® bus. You can install up to three PC-MIPs on the F203, with two Type I/II PC-MIPs and one Type I PC-MIP®. Two Type II modules or one double PC-MIP® module are accessible at the front panel. Rear I/O via the PC-MIP®'s J3 connectors, however, is not possible for any of the three modules. Even populated with three PC-MIPs, the F203 needs only one slot on the CompactPCI® bus. PC-MIPs are an ideal solution for flexible and fast CPU-related applications, which can make advantage out of the internal PCI bus of the PC-MIPs.
