F19P - Intel Core 2 Duo CPU Board

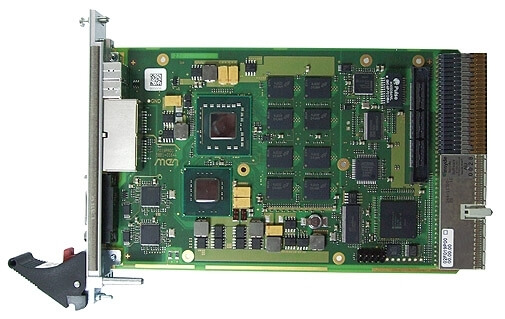

3U CompactPCI PlusIO The F19P versatile 4HP/3U single-board computer is compatible to the CompactPCI PlusIO standard and equipped with the Intel Core 2 Duo processor SP9300.

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

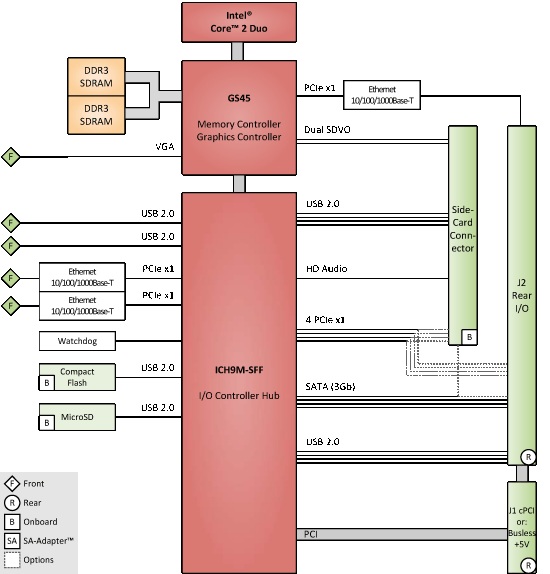

Základní informace Specifikace Volitelné Blokové schéma Fotogalerie Ke stažení

Základní informace

Main Features

Intel Core 2 Duo SP9300, 2.26 GHz
Dual-core 64-bit processor
32-bit 4HP system master (or stand-alone)
For CompactPCI 2.0 systems or CompactPCI PlusIO 2.30 hybrid systems (2.0 and CPCI-S.0)
Up to 4 GB DDR3 DRAM soldered
CompactFlash and microSD card slots
Front I/O: VGA, 2 Gb Ethernet, 2 USB
Rear I/O: 4 PCIe, 4 USB, 4 SATA, 1 Gb Ethernet
Other I/O (onboard, side card): SATA, SDVO, HD audio, USB, UART etc.
Board controller
-40 to +85C screened version

Specifikace

CPU

Intel Core 2 Duo SP9300
- Up to 2.26 GHz processor core frequency
- 1066 MHz system bus frequency
Chipset
- Northbridge: Intel GS45
- Southbridge: Intel ICH9M-SFF

Memory

Up to 6 MB L2 cache integrated in Core 2 Duo
Up to 4 GB DDR3 SDRAM system memory
- Soldered
- 800/1067 MHz memory bus frequency locked to the FSB frequency
16 Mbits boot Flash
Serial EEPROM 2kbits for factory settings
CompactFlash card interface
- Via USB
- Type I
- True IDE
- DMA support
MicroSD card interface
- Via USB

Mass Storage

CompactFlash
- Connected via USB
MicroSD card
- Connected via USB
Serial ATA (SATA)
- Four channels via rear I/O, one channel via side-card connector (switchable)
- Transfer rates up to 3 Gbit/s
- RAID level 0/1 support

Graphics

Integrated in GS45 chipset
- Up to 533 MHz graphics core
- Maximum resolution: 2048 x 1536 pixels
VGA connector at front panel
Two SDVO ports available via side-card connector
- Two additional DVI connectors at front panel optional via side card
- Simultaneous connection of two monitors

I/O

USB
- Two USB 2.0 ports via Series A connectors at front panel
- Four USB 2.0 ports via side-card connector
- Four USB 2.0 ports via rear I/O
- One USB for connection of CompactFlash/MicroSD or USB NAND Flash
- UHCI implementation
- Data rates up to 480Mbit/s
Ethernet
- Two 10/100/1000Base-T Ethernet channels at the front
- RJ45 connectors at front panel
- Ethernet controllers are connected by two x1 PCIe links from ICH9M
- Onboard LEDs to signal activity status and connection speed
- One 10/100/1000Base-T Ethernet channel via rear I/O
- Ethernet controller is connected by one x1 PCIe link from GS45
High Definition (HD) audio
- Accessible via side-card connector

Front Connections (Standard)

VGA
Two USB 2.0 (Series A)
Two Ethernet (RJ45)

Rear I/O

Four SATA
Four USB
One Gigabit Ethernet
Four PCI Express x1 links
Compatible with PICMG 2.30 CompactPCI PlusIO
- 1PCI33/4PCIE2.5/4SATA3/4USB2/1ETH1G

Miscellaneous

Board controller
Real-time clock, buffered by a GoldCap or alternatively a battery (5 years life cycle)
Watchdog timer
Temperature measurement
One user LED
Reset button

PCI Express

Three x1 links to connect local 1000Base-T Ethernet controllers
- Data rate 250 MB/s in each direction (2.5 Gbit/s per lane)
Four x1 links for extension through side-card connector or rear I/O
- Data rate up to 1 GB/s in each direction (2.5 Gbit/s per lane)

CompactPCI Bus

Compliance with CompactPCI Core Specification PICMG 2.0 R3.0
System slot
32-bit/33-MHz CompactPCI bus
V(I/O): +3.3 V (+5 V tolerant)

Busless Operation

Board can be supplied with +5 V only, all other voltages are generated on the board
Backplane connectors used only for power supply

Electrical Specifications

Supply voltage/power consumption with Celeron M722 processor:
- +5 V (-3%/+5%), 2.2 A typ., 2.7 A max.
- +3.3 V (-3%/+5%), 1.4 A (2 Gb Ethernet), 1 A (1 Gb Ethernet)
- +12 V (-10%/+10%), approx. 10 mA
- If the board is supplied with 5 V only (typically without a bus connection), the 3.3 V are generated on the board and fed to the backplane (3 A max.)
Supply voltage/power consumption with SP9300 processor:
- +5 V (-3%/+5%), 4.9 A typ., 6.4 A max.
- +3.3 V (-3%/+5%), 1.4 A (2 Gb Ethernet), 1 A (1 Gb Ethernet)
- +12 V (-10%/+10%), approx. 10 mA
- If the board is supplied with 5 V only (typically without a bus connection), the 3.3 V are generated on the board and fed to the backplane (3 A max.)

Mechanical Specifications

Dimensions: conforming to CompactPCI specification for 3U boards
Front panel: 4HP with ejector
Weight: 430 g

Environmental Specifications

Temperature range (operation):
- Depends on system configuration (CPU, hard disk, heat sink...)
- Maximum: +85°C
- Minimum: -40°C (all processors)
- Conditions: airflow 1.5 m/s, typical power dissipation: 9.8 W (F19P version with Celeron M722), 13.4 W (F19P version with SP9300 Core 2 Duo) with Windows XP operating system and 1 Gb Ethernet connection
Temperature range (storage): -40..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300 m to +2,000 m
Shock: 50 m/s², 30 ms
Vibration (function): 1 m/s², 5 Hz - 150 Hz
Vibration (lifetime): 7.9 m/s², 5 Hz - 150 Hz
Conformal coating on request

MTBF

552,030h @ 40°C according to IEC/TR 62380 (RDF2000)

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers

EMC

Tested according to EN 55022 (radio disturbance), IEC 61000-4-3 (electromagnetic field immunity), IEC 61000-4-4 (burst), IEC 61000-4-5 (surge) and IEC 61000-4-6 (conducted disturbances)

BIOS

InsydeH2O UEFI Framework

Software Support

Note that 64-bit hardware technology can be used in an optimal way with 64-bit operating system support
Windows (Windows XP, Windows 7)
Linux
- tested/verified with: Ubuntu 10.04 (kernel 2.6.32-21) 32-bit and 64-bit versions
- OpenSuse 11.3 32-bit and 64-bit versions
- and: CentOS 5.5 (kernel 2.6.18) 32-bit and 64-bit versions
- Detailed matrix of supported interfaces under Ubuntu 10.04 and OpenSuse 11.3
VxWorks
QNX
Intel Virtualization Technology, allows a platform to run multiple operating systems and applications in independent partitions; one computer system can function as multiple "virtual" systems
For more information on supported operating system versions and drivers see Software.

Volitelné

CPU

Intel SP9300, 2.26 GHz, 1066 MHz FSB, 6 MB cache, 25 W
Intel SL9400, 1.86 GHz, 1066 MHz FSB, 6 MB cache, 17 W
Intel SU9300, 1.2 GHz, 800 MHz FSB, 3 MB cache, 10 W
Intel Celeron M722, 1.2 GHz, 800 MHz FSB, 1 MB cache, 5.5 W
Intel Celeron M723, 1.2 GHz, 800 MHz FSB, 1 MB cache, 10 W

Memory

System RAM
- 2 GB or 4 GB
CompactFlash
- 0 MB up to maximum available
MicroSD card
- 0 MB up to maximum available
NAND Flash instead of CompactFlash, microSD card and battery
- 0 MB up to maximum available

Graphics

One or two DVI-D connectors at front via side card

Simultaneous connection of two monitors

I/O

Ethernet

9-pin D-Sub connector with one or two 10/100Base-T ports instead of two RJ45 connectors
Two M12 connectors with two 10/100/1000Base-T ports on 8HP instead of two RJ45 connectors
