F18 - Intel Core 2 Duo CPU Board

3U CompactPCI The F18 is a 3U CompactPCI SBC equipped with the Intel Core 2 Duo T7500.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace




Main Features


  • Intel Core 2 Duo T7500, 2.2 GHz
  • Dual core 64-bit processor
  • Full 64-bit support (4 GB memory addressable)
  • PCI Express six x1 links
  • 4 HP system master or stand-alone
  • 32-bit CompactPCI or cPCI Express
  • Up to 4 GB DDR2 DRAM soldered
  • CompactFlash slot
  • 3 SATA interfaces
  • Video via VGA and 2 SDVO
  • 2 Gigabit Ethernet (PCIe)
  • Up to 8 USB 2.0
  • High Definition audio
  • Board controller

Specifikace

CPU
  • Intel Core 2 Duo T7500
    • Dual-core 64-bit processor
    • 2.2GHz processor core frequency
    • Up to 800MHz front-side bus frequency
  • Chipset
    • Northbridge: Intel 965GME Express
    • Southbridge: Intel ICH8M-E (Enhanced)
Memory
  • 4MB L2 cache integrated in Core 2 Duo
  • Up to 4GB SDRAM system memory
    • Soldered
    • DDR2
    • 667MHz memory bus frequency
    • Dual-channel, 2x64 bits
  • 8Mbits boot Flash
  • Serial EEPROM 2kbits for factory settings
  • CompactFlash card interface
    • Via onboard IDE
    • Type I
    • True IDE
    • DMA support
Mass Storage
  • Parallel IDE (PATA)
    • One IDE port for local CompactFlash
  • Serial ATA (SATA)
    • Two channels via side-card connector, up to two channels via rear I/O (optional)
    • Transfer rates up to 150MB/s
    • RAID level 0/1 support
Graphics
  • Integrated in 965GME Express chipset
    • Up to 500MHz 256-bit graphics core
    • Maximum resolution: 2048 x 1536 pixels @ 60Hz, 32bpp reduced blanking timing (driver limited)
  • VGA connector at front panel
  • Two SDVO ports available via side-card connector
    • Two additional DVI connectors at front panel optional via side card
    • Simultaneous connection of two monitors
I/O
  • USB
    • Two USB 2.0 ports via Series A connectors at front panel
    • Four USB 2.0 ports via side-card connector
    • Two USB 2.0 ports via rear I/O on request
    • UHCI implementation
    • Data rates up to 480Mbit/s
  • Ethernet
    • Two 10/100/1000Base-T Ethernet channels
    • RJ45 connectors at front panel
    • Ethernet controllers are connected by two x1 PCIe links
    • Onboard LEDs to signal activity status and connection speed
  • High Definition (HD) audio
    • Accessible via side-card connector
Front Connections (Standard)
  • VGA
  • Two USB 2.0 (Series A)
  • Two Ethernet (RJ45)
Miscellaneous
  • Board controller
  • Real-time clock, buffered by a GoldCap or alternatively a battery (5 years life cycle)
  • Watchdog timer
  • Temperature measurement
  • One user LED
  • Reset button
PCI Express
  • Two x1 links to connect local 1000Base-T Ethernet controllers
    • Data rate 250MB/s in each direction (2.5 Gbit/s per lane)
  • One x4 or four x1 links for extension through side-card connector
    • Data rate up to 1GB/s in each direction (2.5 Gbit/s per lane)
CompactPCI Bus
  • Compliance with CompactPCI Core Specification PICMG 2.0 R3.0
  • CompactPCI Express support (EXP.0 R1.0)
  • System slot
  • 32-bit/33-MHz CompactPCI bus
  • V(I/O): +3.3V (+5V tolerant)
Busless Operation
  • Board can be supplied with +5V only, all other voltages are generated on the board
  • Backplane connectors used only for power supply
Electrical Specifications
  • Supply voltage/power consumption:
    • +5V (-3%/+5%), 9A typ.
    • +3.3V (-3%/+5%), 1.8A (2 Gb Ethernet), 1.3A (1 Gb Ethernet)
    • +12V (-10%/+10%), approx. 10mA
    • If the board is supplied with 5V only (typically without a bus connection), the 3.3V are generated on the board and fed to the backplane (3A max.) No external 3.3 V voltage may be applied in that case!
  • MTBF: 238,053h @ 40°C according to IEC/TR 62380 (RDF2000)
Mechanical Specifications
  • Dimensions: conforming to CompactPCI specification for 3U boards
  • Front panel: 4HP with ejector
  • Weight: 420g
Environmental Specifications
  • Temperature range (operation):
    • 2.2GHz Core 2 Duo T7500: 0..+60°C
    • Conditions: airflow 1.5m/s, typical power dissipation 38W, with Windows XP operating system, 1 Gb Ethernet and hard disk, without CPU clock reduction
  • Temperature range (storage): -40..+85°C
  • Relative humidity (operation): max. 95% non-condensing
  • Relative humidity (storage): max. 95% non-condensing
  • Altitude: -300m to + 2,000m
  • Shock: 15g/11ms
  • Bump: 10g/16ms
  • Vibration (sinusoidal): 1g/10..150Hz
  • Conformal coating on request
Safety
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
Tested according to EN 55022 (radio disturbance), IEC61000-4-2 (ESD) and IEC61000-4-4 (burst)
BIOS
Award BIOS
Software Support

Volitelné

CPU
  • Core 2 Duo T7500, 2.2GHz (35W)
  • Core 2 Duo L7500 1.6 GHz (17W)
  • Core 2 Duo U7500 1.06GHz (10W)
Memory
  • System RAM
    • 256 MB, 512 MB, 1 GB, 2 GB or 4 GB
  • CompactFlash
    • 0 MB up to maximum available
Graphics
One or two DVI-D connectors at front via side card
  • Simultaneous connection of two monitors
I/O
Ethernet
  • 9-pin D-Sub connector with one or two 10/100Base-T ports instead of two RJ45 connectors
  • Two M12 connectors with two 10/100/1000Base-T ports instead of two RJ45 connectors on 8HP
Rear I/O
  • Two SATA channels (third SATA channel via side-card connector)
  • Two USB 2.0 ports
Mechanical

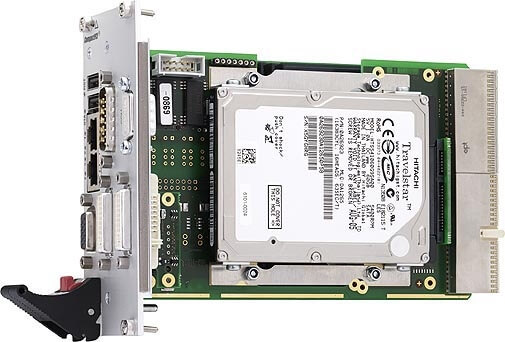

Side card can be added at left or right side of CPU
Operation Temperature
  • Depends on system configuration (CPU, hard disk, heat sink...)
  • Maximum: +60°C
  • Minimum: -40°C (all processors)
Cooling Concept

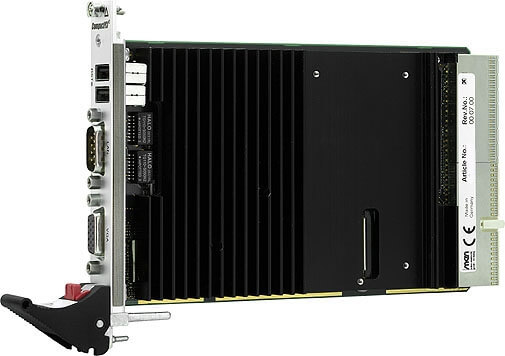

Also available with conduction cooling in MEN CCA frame
Some of these options may only be available for large volumes.

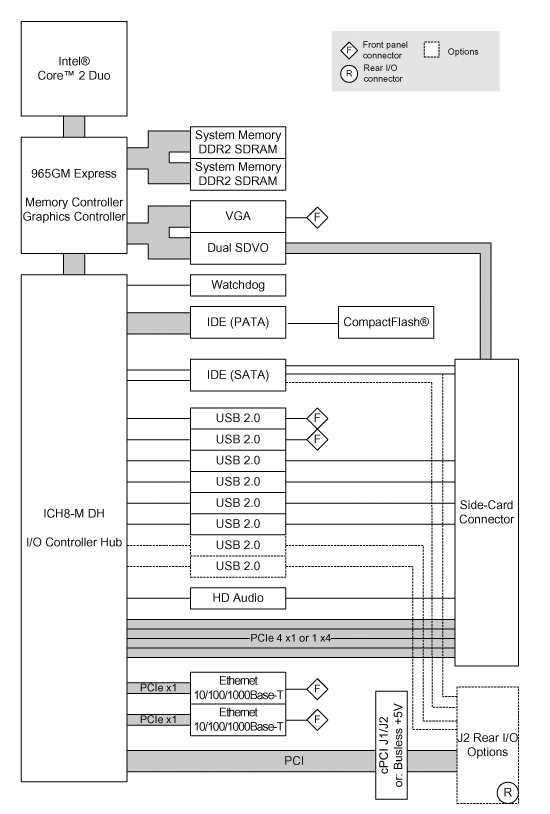

Blokové schéma

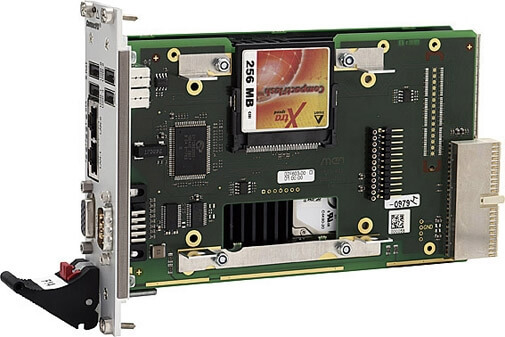

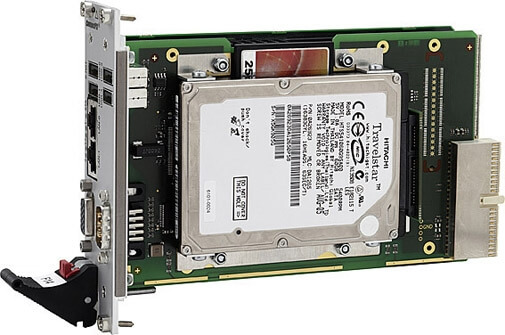

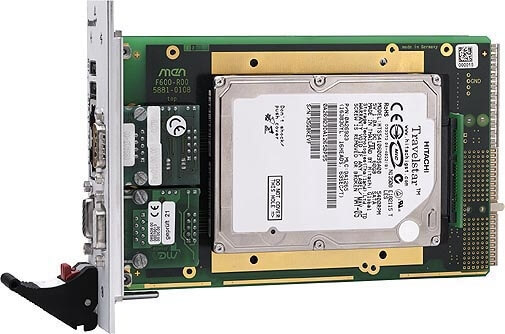

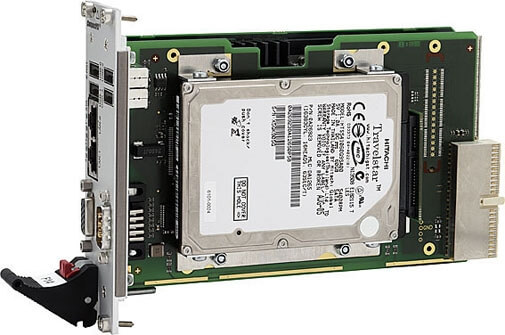

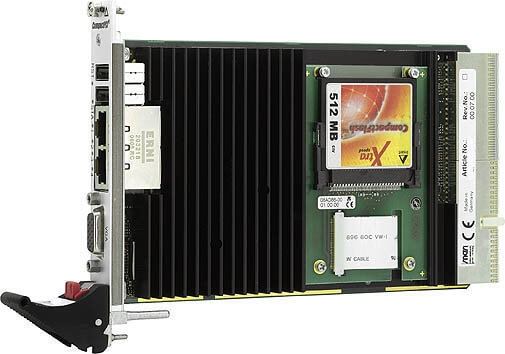

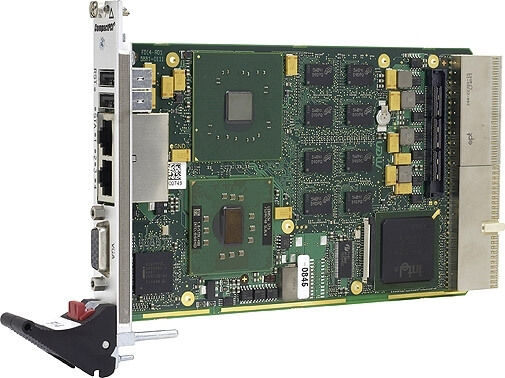

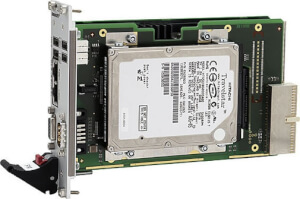

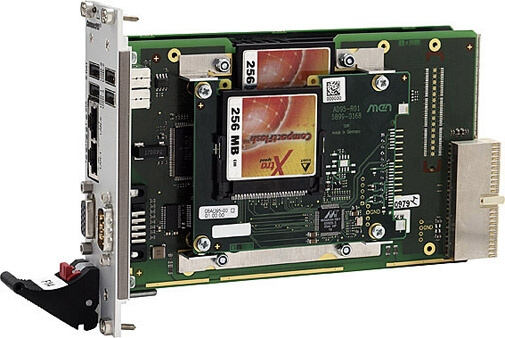

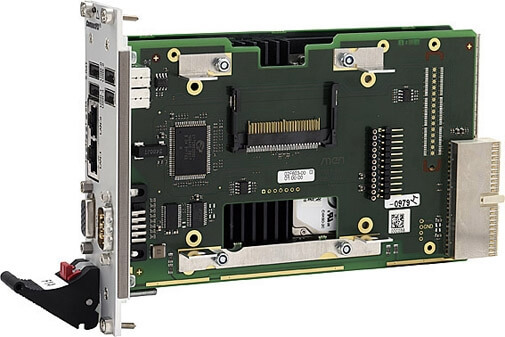

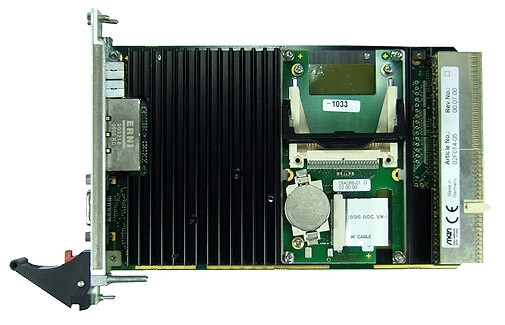

Fotogalerie
