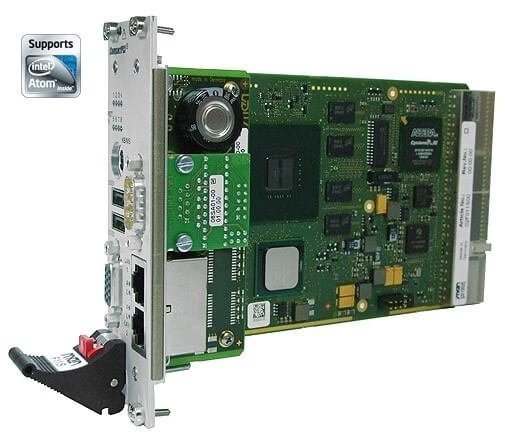

F11S - Intel Atom CPU Board

3U CompactPCI The F11S single-board computer is a versatile 3U Eurocard CompactPCI board, equipped with an Intel Atom Z510P, Z530P, Z510PT or Z520PT processor.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace




Main Features


  • 32-bit 8HP CompactPCI system slot
  • Intel Atom Z510P, Z530P, Z510PT, Z520PT
  • Up to 2 GB DDR2 SDRAM
  • 2 MB SRAM
  • CompactFlash
  • microSD slot
  • 1 SATA interface via rear I/O
  • VGA, 2 USB, PS/2, 1 UART
  • 1 Gigabit and 1 Fast Ethernet
  • FPGA for individual user I/Oat rear
  • -40 to +85C screened or with qualified components

Specifikace

CPU
  • Intel Atom Z510P, Z530P, Z510PT or Z520PT
    • Up to 1.6GHz processor core frequency
    • 400MHz or 533MHz system bus frequency
  • Chipset
    • Intel system controller hub US15WP
Memory
  • 512KB L2 cache integrated in Atom processor
  • Up to 2GB DDR2 SDRAM system memory
    • Soldered
    • 400/533MHz memory bus frequency locked to the FSB frequency
  • 2MB boot Flash
  • 2MB non-volatile SRAM, FPGA-controlled
  • CompactFlash card interface
    • Via USB
    • Type I
    • DMA support
  • One microSD card slot
    • Via USB
    • Compliant to SDIO Revision 1.1 and MMC Revision 4.0 (backward-compatible)
Mass Storage
SATA
  • Transfer rates up to 100MB/s
  • Via PATA-to-SATA converter
  • Accessible on rear I/O connector J2
Graphics
  • Integrated in Intel System Controller Hub US15WP
  • Maximum resolution: 1600x1200 pixels
  • VGA connector at front panel
    • Via SDVO port from chipset
I/O
  • USB
    • Two Series A connectors at front panel
    • One USB for PS/2 interface
    • One USB for connection of CompactFlash/microSD
    • UHCI and EHCI implementation
    • Data rates up to 480Mbit/s
  • Ethernet
    • One 10/100/1000Base-T Ethernet channel
    • Via one PCI Express x1 link from the chipset
    • One 10/100Base-T Ethernet channel
    • FPGA-controlled
    • RJ45 connectors at front panel
    • Two status LEDs for each channel
  • One RS232 UART, FPGA-controlled
    • D-Sub connector at front panel
    • Via SA-Adapter
    • Data rates up to 115.2kbit/s
    • 60-byte transmit/receive buffer
    • Handshake lines: CTS, RTS; DCD, DSR, DTR; RI
  • 66 user I/O lines, FPGA-controlled
    • Depending on FPGA configuration
    • Accessible via rear I/O connector
  • PS/2 keyboard/mouse
    • PS/2 connector at front panel
    • Via USB-PS/2 converter

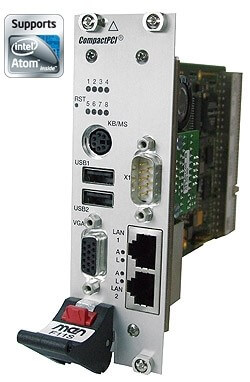

Front Connections (Standard)
  • VGA
  • Two USB 2.0 (Series A)
  • Two Ethernet (RJ45)
  • One COM (D-Sub)
  • PS/2
PCI Express
  • One x1 link to connect local 1000Base-T Ethernet controller
  • One x1 link for connection of PCI Express to PCI bridge
  • Data rate 250MB/s (2.5 Gbit/s per lane)
Miscellaneous
  • Real-time clock buffered by a GoldCap or alternatively a battery (5 years life cycle)
  • Power supervision and watchdog
  • Temperature measurement
  • One status LED from board controller
  • One FPGA status LED
  • Six user LEDs (FPGA-controlled)
  • Reset button
CompactPCI Bus
  • Compliance with CompactPCI Core Specification PICMG 2.0 R3.0
  • System slot
  • 32-bit/33-MHz PCI Express-to-PCI bridge
  • V(I/O): +3.3V
Electrical Specifications
Supply voltage/power consumption:
  • +5V (-3%/+5%), 0.9A typ. (with network connection)
  • +3.3V (-3%/+5%), 0.9A typ. (with network connection)
  • +12V (-5%/+5%), only provided for detection of 3.3V
Mechanical Specifications
  • Dimensions: conforming to CompactPCI specification for 3U boards
  • Front panel: 8HP with ejector
  • Weight: 458g
Environmental Specifications
  • Temperature range (operation):
    • -40..+85°C (screened)
    • Airflow: min. 1.0m/s
  • Temperature range (storage): -40..+85°C
  • Relative humidity (operation): max. 95% non-condensing
  • Relative humidity (storage): max. 95% non-condensing
  • Altitude: -300m to + 3,000m
  • Shock: 15g/11ms
  • Bump: 10g/16ms
  • Vibration (sinusoidal): 1g/10..150Hz
  • Conformal coating on request
MTBF
397,556h @ 40°C according to IEC/TR 62380 (RDF 2000)
Safety
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
Conforming to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)
BIOS
Award BIOS
Software Support
FPGA
FPGA Capabilities
  • FPGA Altera Cyclone III EP3C16
    • 119,088 logic elements
    • 516,096 total RAM bits
  • Connection
    • Total available pin count: 66 pins
    • Functions available via rear I/O connector J2
    • SA-Adapters can be used to realize the physical lines.

Volitelné

CPU
  • Intel Atom Z530P, 1.6GHz, 533MHz FSB
  • Intel Atom Z510P, 1.1GHz, 400MHz FSB
  • Intel Atom Z520PT, 1.33GHz, 533MHz FSB
  • Intel Atom Z510PT, 1.1GHz, 400MHz FSB
Memory
  • CompactFlash
    • 0 MB up to maximum available
  • MicroSD card
    • 0 MB up to maximum available
  • NAND Flash instead of CompactFlash, microSD card and battery
    • 0 MB up to maximum available
  • mSATA slot instead of CompactFlash and microSD card
    • 0 MB up to maximum available
I/O
  • USB
    • One additional interface on M12 connector
  • Ethernet
    • Two interfaces on two 9-pin D-Sub connectors instead of two RJ45 connectors and COM interface
    • Two interfaces on two M12 connectors instead of two RJ45 connectors and COM interface
  • UART
    • Two additional UARTS on two SA-Adapters (12HP front)
Mechanical
  • 4HP (without 2 Ethernet and UART)
  • 8HP (standard)
  • 12HP (with 2 additional UARTs)
Operating Temperature
-40..+85°C qualified
Cooling Concept
Also available with conduction cooling in MEN CCA frame
Some of these options may only be available for large volumes.
