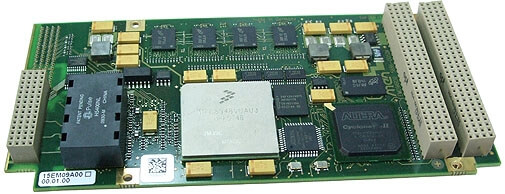

EM9A - Embedded System Module COM with MPC8548 - MPC8548 (or MPC8543), up to 1.5 GHz - FPGA 33,216 LEs - 32-bit/33/66-MHz PCI - Up to 2 GB onboard DDR2 SDRAM - 1 GB NAND Flash - 128 KB FRAM, 32 MB additional SDRAM - 3 Gb Ethernet, 2 COM (J3) - User defi

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073


The EM9A is a complete embedded SBC for use on any carrier board in different industrial environments. The final application consists of a stand-alone EM9A or an EM9A with an application-specific carrier card. The EM9A is controlled by an integrated PowerPC® MPC8548 or MPC8543 processor (optionally with encryption unit) running at clock frequencies between 800 MHz and 1.5 GHz. The EM9A is equipped with soldered DDR2 SDRAM for data and with NAND Flash for program storage. It provides access for three Gigabit Ethernet channels and two COM ports via its I/O connector J3. Additional functionality such as graphics, touch, CAN bus, protocol converters etc. can be realized in an FPGA for the needs of the individual application. The corresponding connectors are available on a carrier board. Application software dynamically loads the functions of the FPGA. The EM9A comes with MENMON™ support. This firmware/BIOS can be used for bootstrapping operating systems (from disk, Flash or network), for hardware testing, or for debugging applications without running any operating system. The EM9A is a communication engine ideal for use in embedded applications, for instance as an embedded Linux server, but also for high-end automation and robot control under a real-time operating system. For a first evaluation of the functions of the EM9A we strongly recommend to use the EK9 ESM™ starter kit. The kit consists of the function-compatible EM9 module (with front I/O), an FPGA loaded with additional I/O functions, the carrier card with I/O connectors, an external PSU, cables, and an adapter for mounting a PCI-104 module. ESM™ modules consist of the hardware (CPU, chip set, memory, I/O) which is not fixed to any application-specific function, and an FPGA programmed in VHDL code, which provides I/O that is also still independent of a specific application. ESM™ modules are based on PCI. They have two or three system connectors: J1 has a fixed signal assignment, while J2 is variable depending on the final application-specific configuration of the ESM™ and the carrier board. J2 also feeds the I/O signals of the functions programmed in the FPGA to the carrier card. Some ESM™ modules have an additional J3 connector that is used to replace the front I/O connectors to route the signals to the carrier board or to the backplane of a CPCI or VME system.
