EM1A ESM COM MPC5200B

EM1A - Embedded System Module COM with MPC5200B - MPC5200B / 384 MHz - FPGA 18,752 LEs (225,000 gates) - Up to 256 MB on-board DDR SDRAM - Up to 8 MB boot Flash, NAND Flash - 2 MB SRAM, 16 MB additional SDRAM - Dual Ethernet, COM, USB 1.1 (J3) - Dual CA

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Popis

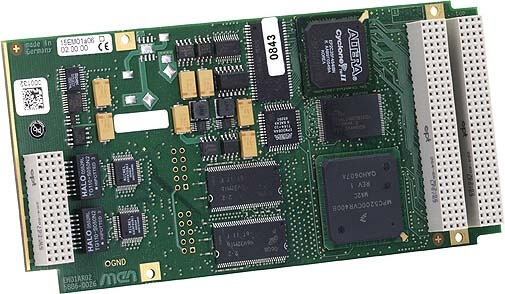

The EM1A Computer-On-Module is a complete embedded SBC for use on any carrier board in different industrial environments. The final application consists either of a stand-alone EM1A, the EM1A with an application-specific carrier card and/or with additionally plugged PCI-104 modules. The EM1A is controlled by the MPC5200B PowerPC® processor which was especially developed for automotive applications and which operates at up to 400 MHz and 700 MIPS. The complete ESM™ module is exclusively available in -40 to +85°C operation temperature, as is the processor itself which consumes less than 1 W at 384 MHz. The EM1A is equipped with up to 256 MB soldered SDRAM and up to 1 GB NAND Flash as well as with 16 MB additional SDRAM, up to 8 MB boot Flash and 2 MB battery-backed SRAM. The EM1A provides one 10MBit and one Fast Ethernet interface, one serial line and USB 1.1 via its I/O connector J3. Two CAN controllers with V2.0A/B CAN protocol are included in the MPC5200B. The physical CAN interfaces are accessible via SA-Adapters™. Further UARTs and other additional I/O functions can be realized in the on-board FPGA and accessed via a carrier board. The functionality of the FPGA is dynamically loaded by the application software. The EM1A comes with MENMON™ support. This firmware/BIOS can be used for bootstrapping operating systems (from disk, Flash or network), for hardware testing, or for debugging applications without running any operating system. The EM1A is designed to operate under harsh environmental conditions including -40 to +85°C operation temperature, shock, vibration, humidity. It focuses on applications in transportation (railways), automotive and avionics. For a first evaluation of the functions of the EM1A it is strongly recommended to use the EK6N ESM™ starter kit. The kit consists of the function-compatible EM1N module (with front I/O), an FPGA loaded with additional I/O functions, the carrier card with I/O connectors, an external PSU, VGA and RJ45 to D-Sub cables, and an adapter for mounting a PCI-104 module. ESM™ modules are complete computers which consist of the hardware (CPU, chip set, memory, I/O) which is not fixed to any application-specific function, and an FPGA programmed in VHDL code for user-defined I/O. ESM™ modules are based on PCI. They have two system connectors: J1 has a fixed signal assignment, while J2 is variable depending on the final application-specific configuration of the ESM™ and the carrier board. J2 also feeds the I/O signals of the functions programmed in the FPGA to the carrier card.
