D302 6U Card 128 Binary I/Os

D302 - 6U CompactPCI® Card with 128 Binary I/Os - 1-slot CompactPCI® peripheral board - 4 optically isolated units - 32 channels for each unit - Individual use of each channel as input or output - Individual edge-triggered interrupts - Input/output load

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

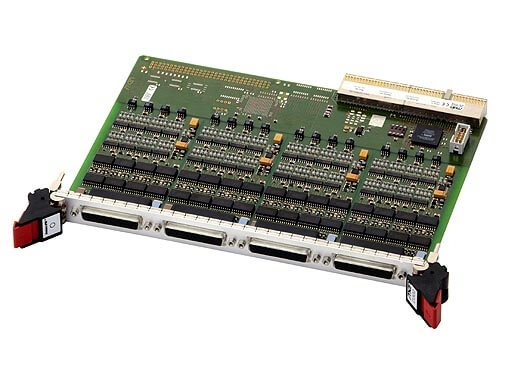

The D302 is an input/output CompactPCI® target board for 128 binary process signals. The I/Os are divided into four optically isolated units. The card is used for input/output of digital signals with different voltage levels and ground references. For each unit 32 channels are driven to the 44-pin D-Sub connector. Each channel can be either input or output. The binary inputs/outputs can be universally used in industrial systems. They are optically isolated from the system, which is essential for advanced automotive and industrial applications
