CT7 6U Rear I/O Transition Module D9

CT7 - 6U CompactPCI® Rear I/O Transition Module for D9 - 6U / 80 mm standard format - 2 Gigabit Ethernet - 2 USB 2.0 - 2 UARTs - 2 PIM slots - PATA/SATA hard disk - CompactFlash® - External battery

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

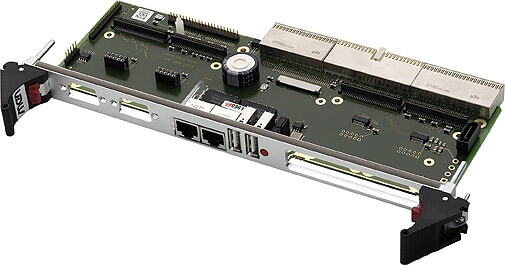

The CT7 is a 6U CompactPCI® rear I/O transition module for use in combination with MEN's 6U Intel®-based CompactPCI® single-board computers. It is plugged onto J3/J4/J5 of the CompactPCI® backplane system slot from the rear side and leads the rear I/O signals to standard connectors. Consequently, standard cables can be used to connect drives and other peripherals. If a hard disk is mounted (instead of a CompactFlash® card), the 4HP transition module extends to 8HP, doing then also without one of the two PIM slots.
