CT12 3U Rear I/O Transition Module
CT12 - 3U CompactPCI® PlusIO Rear I/O Transition Module - CompactPCI® PlusIO PICMG 2.30 - 3U / 100x80 mm standard format - 2 Gigabit Ethernet - 4 USB 2.0 - 4 PCIe® x1 - 4 SATA - -40 to +85°C qualified

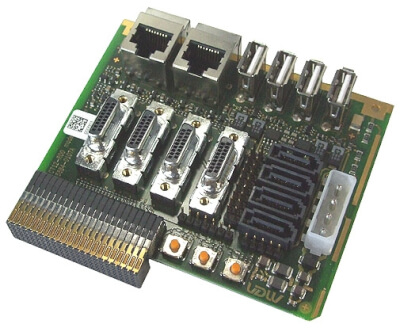

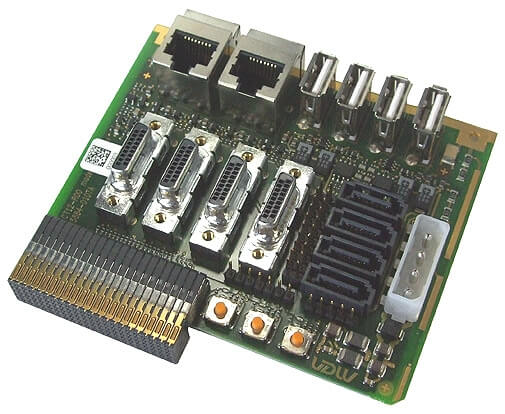

The CT12 is a 3U CompactPCI® rear I/O transition module for use in combination with MEN's PICMG 2.30-based single-board computers. It is plugged onto J2 of the CompactPCI® backplane system slot from the rear side and leads the rear-panel serial I/O signals to standard connectors. The signals are two Gigabit Ethernet, four PCI Express® x1 links, four USB and four SATA interfaces as defined by the PICMG 2.30 CompactPCI® PlusIO specification. In addition the board is equipped with a +5V connector for supplying the CT12.
